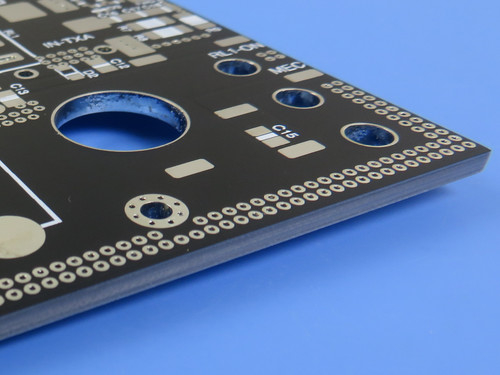

F4BTMS430 PCB 2 Layer 125mil 3.175mm Hot Air Soldering Level HASL

F4BTMS430 PCB 2 Layer 125mil 3.175mm Hot Air Soldering Level HASL

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
F4BTMS430 Core - 3.175 Mm (125mil)
Layer Count:
2-layer
PCB Size:
89.59mm X 70.83 Mm=1PCS, +/- 0.15mm
PCB Thickness:
3.2 Mm
Surface Finish:
Hot Air Soldering Level (HASL)
Solder Mask:
Top Solder Mask: Black
Highlight:

125mil PCB

,

HASL PCB

,

F4BTMS430 PCB

Product Description

The F4BTMS430 2-Layer Rigid PCB is a high-performance circuit board designed to meet the increasing demand for reliability and efficiency in modern technology. Combining advanced materials and innovative design, it is particularly well-suited for critical applications in aerospace and military sectors. In this article, we will explore the groundbreaking features of this PCB and its transformative impact on the electronics landscape.



Innovative Material Composition

Where Cutting-Edge Meets Dependability—the F4BTMS430 is crafted from a sophisticated blend of advanced materials. This enhanced iteration of the F4BTM series incorporates a unique combination of ceramics and ultra-thin glass fiber cloth, significantly elevating its dielectric performance. By effectively reducing electromagnetic wave propagation losses, this PCB ensures top-tier efficiency across a wide spectrum of applications.



Impressive Specifications and Features

Designed for exceptional performance in challenging environments, the F4BTMS430 showcases remarkable specifications:


- Dimensions: 89.59 mm x 70.83 mm (±0.15 mm)
- Minimum Trace/Space: 5/6 mils
- Finished Board Thickness: 3.2 mm



These attributes make it an ideal choice for sectors that demand reliability, including aerospace and defense.



Comprehensive PCB Stackup

The thoughtfully engineered stackup of the F4BTMS430 enhances both electrical conductivity and mechanical integrity:


- Copper Layer 1: 35 μm
- F4BTMS430 Core: 3.175 mm (125 mil)
- Copper Layer 2: 35 μm



This configuration optimizes the PCB’s functionality, enabling it to support complex electronic systems effectively.



F4BTMS430 PCB 2 Layer 125mil 3.175mm Hot Air Soldering Level HASL 0



Importance of Dielectric Properties

Transforming Challenges into Opportunities, the F4BTMS430 excels with a dielectric constant (Dk) of 4.3 at 10 GHz and a notably low dissipation factor. These characteristics are crucial for high-frequency applications, minimizing signal loss and ensuring consistent performance.



Thermal and Mechanical Stability

Setting New Benchmarks for Reliability, the PCB features a low coefficient of thermal expansion (CTE) across its axes, providing stability under varying temperature conditions. With high thermal conductivity and minimal moisture absorption, the F4BTMS430 is engineered to perform optimally when it matters most.



Rigorous Quality Assurance

Every F4BTMS430 PCB undergoes thorough 100% electrical testing before shipment, adhering to the IPC-Class-2 quality standard. This stringent testing process guarantees that each board meets the highest benchmarks for reliability and performance.



Versatile Applications

The adaptability of the F4BTMS430 PCB empowers engineers with cutting-edge technology suitable for a variety of applications, such as:


- Aerospace systems
- Military radar technologies
- Microwave and RF applications



Conclusion
Revolutionizing Performance in Critical Applications, the F4BTMS430 2-Layer Rigid PCB represents a significant advancement in high-demand sectors. By combining innovative materials with rigorous testing protocols, it stands as a beacon of what is possible in PCB technology. As we look ahead, this pioneering PCB elevates performance beyond expectations, ensuring your projects are built on a foundation of reliability and excellence. Embrace the advancements in high-performance PCBs and take your electronic designs to new heights today.
