| MOQ: | 1PCS |
| Price: | USD9.99-99.99 |
| Standard Packaging: | Vacuum bags+Cartons |
| Delivery Period: | 8-9 working days |
| Payment Method: | T/T |
| Supply Capacity: | 5000PCS per month |

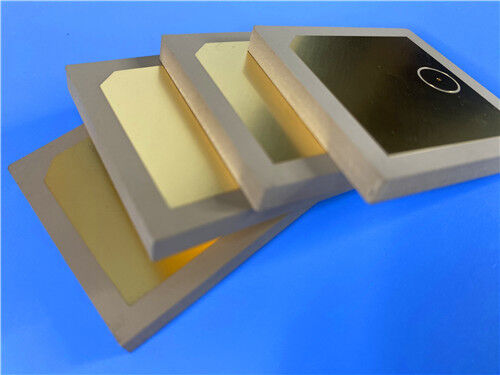

This PCB is a high-precision, double-sided rigid printed circuit board expertly fabricated using Rogers TMM13i, an advanced isotropic thermoset microwave material. Engineered for exceptional reliability in high-frequency applications, TMM13i combines the superior dielectric properties of ceramic with the processing flexibility of PTFE substrates, delivering consistent performance across extreme operational conditions. With a finished board thickness of 3.9mm, 1oz (35μm) copper cladding on both outer layers, and OSP (Organic Solderability Preservative) surface finish, this PCB ensures optimal electrical integrity, mechanical stability, and long-term durability for demanding microwave and radio frequency (RF) systems.
PCB Details
| Item | Specification |
| Base Material | Rogers TMM13i (Isotropic Thermoset Microwave Material) |
| Layer Configuration | Double-sided Rigid PCB |
| Board Dimensions | 76.8mm x 97mm (Per Piece), with a tolerance of ±0.15mm |
| Minimum Trace/Space | 4/5 mils |
| Minimum Hole Size | 0.25mm |
| Blind/Buried Vias | None |
| Finished Board Thickness | 3.9mm |
| Finished Copper Weight | 1 oz (1.4 mils / 35μm) for Outer Layers |
| Via Plating Thickness | 20 μm |
| Surface Finish | OSP (Organic Solderability Preservative) |
| Top/Bottom Silkscreen | No |
| Top/Bottom Solder Mask | No |
| Electrical Testing | 100% Electrical Test Performed Prior to Shipment |
PCB Stack-up
This 2-layer rigid PCB utilizes a robust, symmetric stackup structure optimized for high-frequency performance (from top to bottom):
| Layer Type | Specification |
| Copper Layer 1 | 35 μm |
| TMM13i Core Substrate | 3.81mm (150mil) |
| Copper Layer 2 | 35 μm |
![]()
Artwork and Quality Standard
The Gerber RS-274‑X format, recognized worldwide as the industry standard for PCB artwork, is used throughout the fabrication process. This choice guarantees smooth integration with leading design software and production equipment, ensuring that digital circuit layouts are faithfully transformed into physical boards. Moreover, the PCB meets all requirements of the IPC‑Class‑2 quality standard, which sets demanding criteria for quality, reliability, and performance – confirming its readiness for commercial and industrial electronic systems.
Availability
This high‑performance PCB can be shipped to any destination around the world. Whether customers require quick‑turn prototypes or high‑volume production runs, the product is accessible globally and supported by timely delivery to all regions.
Substrate Material Introduction: Rogers TMM13i
Rogers TMM13i is an isotropic thermoset microwave material specifically formulated for high-reliability applications in plated thru-hole stripline and microstrip circuits. As a ceramic-filled thermoset polymer composite, it synergistically combines the superior dielectric performance of ceramic substrates with the processing convenience inherent to PTFE-based materials. Its isotropic dielectric constant ensures consistent electrical behavior across all axes, while its thermoset resin structure provides exceptional mechanical stability and resistance to creep and cold flow. The material is compatible with standard PTFE woven fiberglass fabrication processes, including shearing, drilling, and plating, and requires no pre-treatment with sodium napthanate for electroless plating, facilitating streamlined manufacturing workflows.
Core Benefits of TMM13i
The unique properties of TMM131 translate into decisive advantages for high-performance PCB applications:
Typical Applications
Thanks to its high dielectric constant, low loss, and exceptional reliability, this TMM13i-based PCB is ideally suited for critical and high-performance applications in the following fields:
![]()
TMM13i – High Frequency Materials
TMM thermoset microwave materials are ceramic, hydrocarbon, and thermoset polymer composites specifically engineered for stripline and microstrip applications that demand high plated through-hole (PTH) reliability. These laminates are offered in a wide variety of dielectric constants and cladding options.
By combining the electrical and mechanical advantages of both ceramic and conventional PTFE microwave circuit laminates, TMM materials eliminate the need for the specialized production techniques typically associated with such products. Notably, TMM laminates do not require sodium naphthanate treatment before electroless plating.
TMM laminates feature an exceptionally low thermal coefficient of dielectric constant, typically below 30 ppm/°C. Their isotropic coefficients of thermal expansion, closely matched to those of copper, enable the production of highly reliable plated through-holes and low etch shrinkage values. In addition, the thermal conductivity of TMM laminates is roughly twice that of traditional PTFE/ceramic laminates, promoting efficient heat dissipation.
As TMM laminates are based on thermoset resins, they do not soften upon heating. Consequently, wire bonding of component leads to circuit traces can be performed without concern for pad lifting or substrate deformation.
TMM laminates successfully merge the desirable characteristics of ceramic substrates with the processing ease of soft substrates. They are available clad with 0.5 oz/ft² to 2 oz/ft² electrodeposited copper foil, or bonded directly to brass or aluminum plates. Substrate thicknesses range from 0.015 inches to 0.500 inches. The base substrate resists etchants and solvents commonly used in printed circuit production, allowing all standard PWB processes to be employed in manufacturing TMM thermoset microwave materials.
| TMM13i Typical Value | ||||||
| Property | TMM13i | Direction | Units | Condition | Test Method | |
| Dielectric Constant,εProcess | 12.85±0.35 | Z | 10 GHz | IPC-TM-650 2.5.5.5 | ||
| Dielectric Constant,εDesign | 12.2 | - | - | 8GHz to 40 GHz | Differential Phase Length Method | |
| Dissipation Factor (process) | 0.0019 | Z | - | 10 GHz | IPC-TM-650 2.5.5.5 | |
| Thermal Coefficient of dielectric constant | -70 | - | ppm/°K | -55℃-125℃ | IPC-TM-650 2.5.5.5 | |
| Insulation Resistance | >2000 | - | Gohm | C/96/60/95 | ASTM D257 | |
| Volume Resistivity | - | - | Mohm.cm | - | ASTM D257 | |
| Surface Resistivity | - | - | Mohm | - | ASTM D257 | |
| Electrical Strength(dielectric strength) | 213 | Z | V/mil | - | IPC-TM-650 method 2.5.6.2 | |
| Thermal Properties | ||||||
| Decompositioin Temperature(Td) | 425 | 425 | ℃TGA | - | ASTM D3850 | |
| Coefficient of Thermal Expansion - x | 19 | X | ppm/K | 0 to 140 ℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
| Coefficient of Thermal Expansion - Y | 19 | Y | ppm/K | 0 to 140 ℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
| Coefficient of Thermal Expansion - Z | 20 | Z | ppm/K | 0 to 140 ℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
| Thermal Conductivity | - | Z | W/m/K | 80 ℃ | ASTM C518 | |
| Mechanical Properties | ||||||
| Copper Peel Strength after Thermal Stress | 4.0 (0.7) | X,Y | lb/inch (N/mm) | after solder float 1 oz. EDC | IPC-TM-650 Method 2.4.8 | |
| Flexural Strength (MD/CMD) | - | X,Y | kpsi | A | ASTM D790 | |
| Flexural Modulus (MD/CMD) | - | X,Y | Mpsi | A | ASTM D790 | |
| Physical Properties | ||||||
| Moisture Absorption (2X2) | 1.27mm (0.050") | 0.16 | - | % | D/24/23 | ASTM D570 |
| 3.18mm (0.125") | 0.13 | |||||
| Specific Gravity | 3 | - | - | A | ASTM D792 | |
| Specific Heat Capacity | - | - | J/g/K | A | Calculated | |
| Lead-Free Process Compatible | YES | - | - | - | - | |
| Standard Thicknesses Standard Panel Sizes Standard Claddings | |||
|
0.015” (0.381mm) +/- 0.0015” 0.025” (0.635mm) +/- 0.0015” 0.030” (0.762mm) +/- 0.0015” 0.050” (1.270mm) +/- 0.0015” 0.060” (1.524mm) +/- 0.0015” 0.075” (1.900mm) +/- 0.0015” |
0. 100”(2.500mm) +/- 0.0015” 0. 125”(3. 175mm) +/- 0.0015” 0. 150”(3.810mm) +/- 0.0015” 0.200”(5.080mm) +/- 0.0015” 0.250”(6.350mm) +/- 0.0015” 0.500”(12.70mm) +/- 0.0015” |
18”X 12”(457mm X 305mm) 18”X 24”(457mm X 610mm)
*Additional panel sizes available |
Electrodeposited Copper Foil ½ oz. (18µm) HH/HH 1 oz. (35µm) H1/H1 *Additional claddings such as heavy metal and unclad are available |
