10mil TLX-9 PCB Double-Sided 1OZ Circuit Boards
  • name
  • name

10mil TLX-9 PCB Double-Sided 1OZ Circuit Boards

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
TLX-9
PCB Size:
33.5mm X 63.2mm=1PCS, +/- 0.15mm
Copper Weight:
1oz (1.4 Mils)
Surface Finish:
Immersion Gold
Layer Count:
2-layer
PCB Thickness:
0.3mm
Highlight:

Double-Sided TLX-9 PCB

,

10mil TLX-9 PCB Double-Sided

,

1OZ Circuit Boards TLX-9 PCB

Product Description

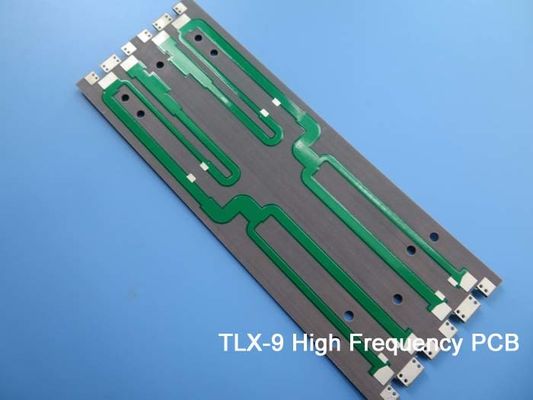

The TLX-9 is a high-performance printed circuit board (PCB) composed of a specialized PTFE/woven glass laminate material. This composite construction provides excellent electrical and mechanical properties that make the TLX-9 well-suited for demanding RF and microwave applications.



Key Specifications:

Dielectric constant (Dk) of 2.5 ± 0.04 at 10 GHz
Dissipation factor (Df) of 0.0019 at 10 GHz
Moisture absorption less than 0.02%
Dielectric breakdown voltage over 60 kV
Volume resistivity of 10^7 MΩ-cm and surface resistivity of 10^7 MΩ
Arc resistance greater than 180 seconds
Flexural strength of over 23,000 lbs/in lengthwise and 19,000 lbs/in crosswise
Peel strength of 12 lbs/linear inch for 1oz copper
Thermal conductivity of 0.19 W/m/K
CTE of 9-12 ppm/°C in the X-Y plane and 130-145 ppm/°C in the Z-axis



TLX-9 TYPICAL VALUES
Property Test Method Units Value Units Value
Dielectric Constant @ 10 GHz IPC-TM 650 2.5.5.5   2.5   2.5
Dissipation Factor @ 10 GHz IPC-TM 650 2.5.5.5   0.0019   0.0019
Moisture Absorption IPC-TM 650 2.6.2.1 % <0.02 % <0.02
Dielectric Breakdown IPC-TM 650 2.5.6 kV >60 kV >60
Volume Resistivity IPC-TM 650 2.5.17.1 Mohm/cm 10^7 Mohm/cm 10^7
Surface Resistivity IPC-TM 650 2.5.17.1 Mohm 10^7 Mohm/cm 10^7
Arc Resistance IPC-TM 650 2.5.1 seconds >180 seconds >180
Flexural Strength Lengthwise IPC-TM 650 2.4.4 lbs./in. >23,000 N/mm2 >159
Flexural Strength Crosswise IPC-TM 650 2.4.4 lbs./in. >19,000 N/mm2 >131
Peel Strength (1oz copper) IPC-TM 650 2.4.8 lbs./linear in. 12 N/mm 2.1
Thermal Conductivity ASTM F 433 W/m/K 0.19 W/m/K 0.19
x-y CTE ASTM D 3386 (TMA) ppm/°C 9-12 ppm/°C 9-12
z CTE ASTM D 3386 (TMA) ppm/°C 130- 145 ppm/°C 130- 145
UL-94 Flammability Rating UL-94   V-0   V-0



10mil TLX-9 PCB Double-Sided 1OZ Circuit Boards 0



The PCB stackup consists of a 0.254 mm (10 mil) TLX-9 core with 35 μm (1 oz) copper layers on both sides. It is fabricated to tight tolerances, including a minimum trace/space of 5/6 mils, minimum hole size of 0.3 mm, and a finished thickness of 0.3 mm. 100% electrical testing is performed before shipment.



Typical applications for the TLX-9 PCB include:

Low-noise amplifiers (LNAs), low-noise blocks (LNBs), and low-noise converters (LNCs)
Personal communications service (PCS) and personal communications network (PCN) antennas
High-power amplifiers
Passive components



With its exceptional electrical and mechanical properties, the TLX-9 is an ideal choice for challenging RF and microwave designs that require high performance and reliability.
