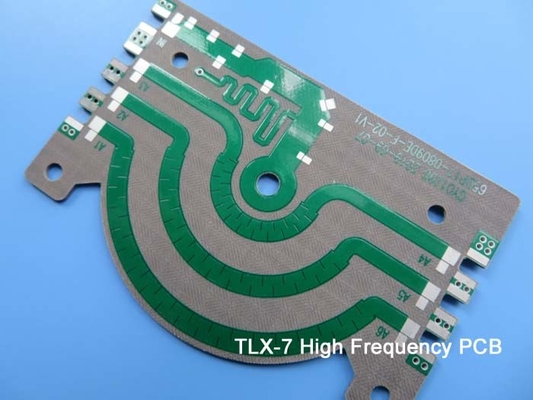

2-layer TLX-7 RF PCB 20mil Immersion Silver

2-layer TLX-7 RF PCB 20mil Immersion Silver
2-layer TLX-7 RF PCB 20mil Immersion Silver 2-layer TLX-7 RF PCB 20mil Immersion Silver

Large Image :  2-layer TLX-7 RF PCB 20mil Immersion Silver

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: TLX-7 Thickness: 20 Mil
Surface Finish: Immersion Silver Copper Weight: 1 OZ
High Light:

20mil 2-layer TLX-7 RF PCB




20mil Immersion Silver TLX-7 RF PCB

Introducing our newly shipped PCB built on TLX-7, a high-quality PTFE fiberglass laminate material designed to excel in a wide range of RF applications. Offering versatility with its wide range of available thicknesses and copper cladding, TLX-7 is particularly suitable for low layer count microwave designs. This exceptional material provides mechanical reinforcement in severe environments, making it an excellent choice for various applications.


Key Benefits:

Excellent PIM Values in PCBs (measured below -160 dBc*)
Outstanding Mechanical & Thermal Properties
Low and Stable Dk (Dielectric constant)
Dimensional Stability
Low Moisture Absorption
Tightly Controlled DK
Low DF (Dissipation factor)
UL 94 V0 Rating for superior flammability resistance
Specifically designed for low layer count microwave designs


Main Properties:

Electrical Properties:

Dk @ 10 GHz: 2.6 +/- 0.04 (IPC-650
Df @ 1.9 GHz: 0.0014 (IPC-650
Df @ 10 GHz: 0.002 (IPC-650
Outgassing (% TML): 0.02 (ASTM E 595, 24 H 257 °F @ ≤ 5 x 10-5 Torr)
Outgassing (% CVCM): 0 (ASTM E 595, 24 H 257 °F @ ≤ 5 x 10-5 Torr)
Outgassing (% WVR): 0.01 (ASTM E 595, 24 H 257 °F @ ≤ 5 x 10-5 Torr)


Dielectric available thickness ranges from 0.13mm to 0.76mm

Peel strength of 12 lbs/in


Moisture Absorption: 0.02% (IPC-650

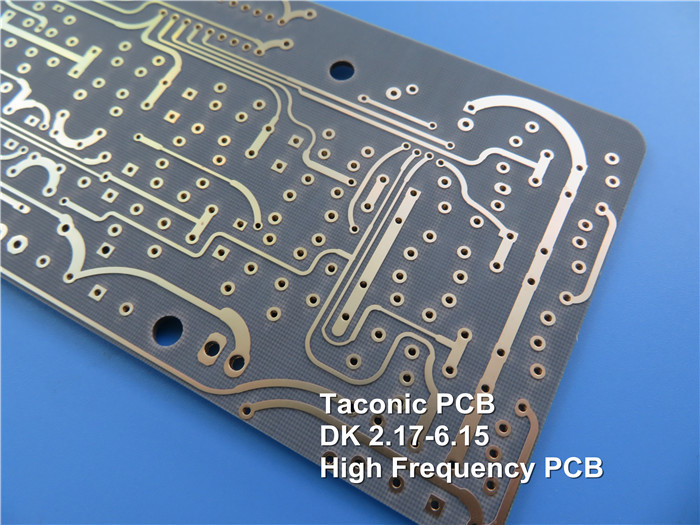

Type DK
TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15
CER-10 10


Thermal Conductivity: 0.22 W/M*K (ASTM F433/ASTM 1530-06)

CTE (Coefficient of Thermal Expansion, 25-260 °C):

X: 21 ppm/°C (IPC-650 2.4.41/ASTM D 3386)
Y: 23 ppm/°C (IPC-650 2.4.41/ASTM D 3386)
Z: 215 ppm/°C (IPC-650 2.4.41/ASTM D 3386)


Flammability Rating: V-0 (UL-94)


2-layer TLX-7 RF PCB 20mil Immersion Silver 0


This PCB constructed with TLX-7 follows a 2-layer rigid design, featuring copper layers with a thickness of 35 μm on both sides and a Taconic TLX-7 core with a thickness of 0.508 mm (20mil). The board dimensions are precisely measured at 91mm x 75mm, with a tolerance of +/- 0.15mm. The minimum trace/space is 4/5 mils, and the minimum hole size is 0.3mm. The finished board thickness is 0.6mm, with a 1oz (1.4 mils) outer layer copper weight. Via plating thickness is 20 μm, and the surface finish is immersion silver. There is no top or bottom silkscreen or solder mask applied. Each PCB undergoes a 100% electrical test before shipment to ensure its quality and functionality.


TLX-7 PCBs have been designed to meet IPC-Class-2 quality standards. They are available worldwide, making them accessible for various projects and applications. With their exceptional properties, TLX-7 PCBs find applications in radar systems, mobile communications, microwave test equipment, microwave transmission devices, and components such as couplers, splitters, combiners, amplifiers, and antennas.


Experience unparalleled reliability, outstanding performance, and seamless integration with TLX-7 PCBs, the perfect choice for your RF applications.
