Rogers RO4725JXR High Frequency RF Printed Circuit Board Antenna Grade DK 2.55
  • name
  • name
  • name

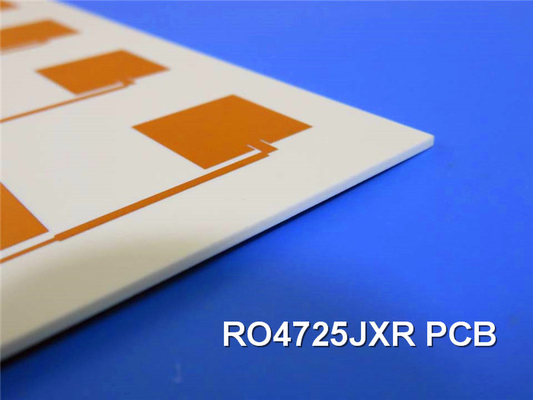

Rogers RO4725JXR High Frequency RF Printed Circuit Board Antenna Grade DK 2.55

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-215.V1.0
Material:
Hydrocarbon / Ceramic / Woven Glass
Layer Count:
Sinlge-sided PCB, Double-sided PCB, Multi-layer PCB, Hybrid PCB
PCB Thickness:
30.7mil(0.780mm), 60.7mil (1.542mm)
PCB Size:
≤400mm X 500mm
Copper Weight:
1oz (35µm), 2oz (70µm)
Solder Mask:
Green, Black, Blue, Red, Yellow, White Etc.
Surface Finish:
Immersion Gold, HASL, Immersion Silver, Immersion Tin, Bare Copper, OSP, ENEPIG, Pure Gold Etc..
Highlight:

Woven Glass RF PCB Board

,

Antenna Grade High Frequency PCB

,

RF Printed Circuit Board DK 2.55

Product Description

Rogers RO4725JXR antenna grade laminates offer a dependable and cost-effective substitute for traditional PTFE-based laminates.



The resin systems used in RO4725JXR dielectric materials offer the essential properties required for optimal antenna performance. RO4725JXR antenna grade laminates are fully compatible with conventional FR-4 and high-temperature lead-free solder processes. Unlike traditional PTFE-based laminates, these materials do not require special treatment for plated through-hole preparation. By choosing RO4725JXR laminates, designers can achieve cost-effective solutions without compromising performance.



RO4725JXR Typical Properties

Property RO4725JXR Direction Units Condition Test Method
Dielectric Constant, εr Process 2.55 ± 0.05 Z   10 GHz/23°C IPC-TM-650, 2.5.5.5
Dielectric Constant, εr Design 2.64 Z   1.7 GHz - 5
GHz		 Differential Phase Length Method
Dissipation Factor 0.0026 Z   10 GHz/23°C IPC-TM-650, 2.5.5.5
0.0022   2.5GHz
Thermal Coefficient of εr +34 Z ppm/°C -50°C to 150°C IPC-TM-650, 2.5.5.5
Volume Resistivity (0.030") 2.16 X 10^8   MΩ•cm COND A IPC-TM-650, 2.5.17.1
Surface Resistivity (0.030") 4.8 X 10^7   MΩ COND A IPC-TM-650, 2.5.17.1
PIM -166   dBc 50 ohm
0.060”		 43dBm
1900MHz
Electrical Strength (0.030”) 630 Z V/mil   IPC-TM-650, 2.5.6.2
Flexural Strength MD 121 (17.5)   MPa
(kpsi)		 RT ASTM D790
CMD 92 (13.3)
Dimensional Stability <0.4 X,Y mm/m after etch
+E2/150°C		 IPC-TM-650, 2.4.39A
Coefficient of Thermal
Expansion		 13.9 X ppm/°C -55 TO 288°C IPC-TM-650, 2.1.24
19.0 Y
25.6 Z
Thermal Conductivity 0.38 Z W/mK° 50°C ASTM D5470
Moisture Absorption 0.24%   % 48/50 IPC-TM-650 2.6.2.1 ASTM D570
Tg >280   °C   IPC-TM-650 2.4.24
Td 439   °C   ASTM D3850
Density 1.27   gm/cm3   ASTM D792
Copper Peel Strength 8.5   pli 1 oz LoPro EDC IPC-TM-650 2.4.8
Flammability N/A       UL94
Lead-Free Process Compatible YES



Features:

1.Dielectric constant of 2.55+/- 0.05

2. Low Z-axis coefficient of thermal expansion at 25.6 ppm/°C

3. Low TCDk (Thermal Coefficient of Dielectric Constant) of +34 ppm/°C

4. Dissipation factors ranging from .0022 to .0026

5. High glass transition temperature (Tg) exceeding 280°C



Benefits:

1. Low insertion loss, ensuring minimal signal loss during transmission

2. Dk (Dielectric Constant) matched to standard PTFE-based antenna offerings, facilitating seamless integration with existing designs

3. Reduced passive inter-modulation (PIM), leading to improved signal quality and less interference

4. Consistent circuit performance, providing reliable and predictable results.



Our PCB Capability( RO4725JXR)

PCB material: Hydrocarbon / Ceramic / Woven Glass
Designation: RO4725JXR
Dielectric constant: 2.55
Layer count: Sinlge-sided PCB, Double-sided PCB, Multi-layer PCB, Hybrid PCB
Dielectric thickness: 30.7mil(0.780mm), 60.7mil (1.542mm)
Copper weight: 1oz (35µm), 2oz (70µm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Red, Yellow, White etc.
Surface finish: Immersion gold, HASL, Immersion silver, Immersion tin, Bare copper, OSP, ENEPIG, Pure gold etc..



Typical Applications

Cellular Base Station Antennas
