Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-044.V1.0

Base Material:

RO3035

Layer Count:

2 Layers

PCB Thickness:

1.6mm

PCB Size:

100 X 100mm=6PCS

Copper Weight:

0.5oz

Surface Finish:

Immersion Gold

Highlight:

60mil RF PCB Board

1.524mm RF PCB Board

Product Description

Rogers PCB Made on RO3035 60mil 1.524mm DK3.5 With Immersion Gold for Remote Meter Readers

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Rogers RO3035 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3035 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.

Typical applications:

1) Cellular telecommunications systems

2) Direct broadcast satellites

3) Patch antenna for wireless communications

4) Power backplanes

PCB Specifications

PCB SIZE	100 x 100mm=6PCS
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	copper ------- 18um(0.5 oz)+plate TOP layer
	RO3035 1.524mm
	copper ------- 18um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	14 mil / 14 mil
Minimum / Maximum Holes:	0.4 mm / 4.0 mm
Number of Different Holes:	1
Number of Drill Holes:	1
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO3035 1.524mm
Final foil external:	1 oz
Final foil internal:	N/A
Final height of PCB:	1.6 mm ±0.16mm
PLATING AND COATING
Surface Finish	Immersion Gold
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

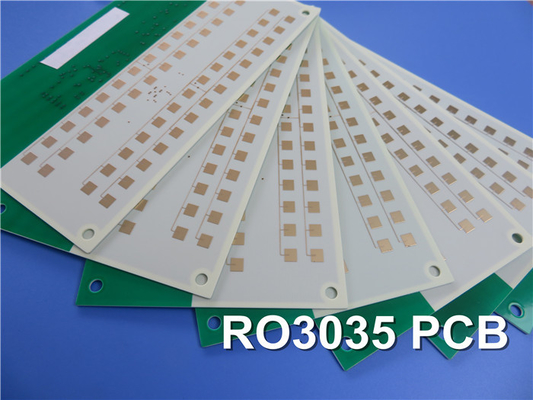

Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers 0

Data Sheet of Rogers 3035 (RO3035)

RO3035 Typical Value
Property	RO3035	Direction	Units	Condition	Test Method
Dielectric Constant,εProcess	3.50±0.05	Z		10 GHz/23℃	IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign	3.6	Z		8GHz to 40 GHz	Differential Phase Length Method
Dissipation Factor,tanδ	0.0015	Z		10 GHz/23℃	IPC-TM-650 2.5.5.5
Thermal Coefficient of ε	-45	Z	ppm/℃	10 GHz -50℃to 150℃	IPC-TM-650 2.5.5.5
Dimensional Stability	0.11 0.11	X Y	mm/m	COND A	IPC-TM-650 2.2.4
Volume Resistivity	107		MΩ.cm	COND A	IPC 2.5.17.1
Surface Resistivity	107		MΩ	COND A	IPC 2.5.17.1
Tensile Modulus	1025 1006	X Y	MPa	23℃	ASTM D 638
Moisture Absorption	0.04		%	D48/50	IPC-TM-650 2.6.2.1
Specific Heat			j/g/k		Calculated
Thermal Conductivity	0.5		W/M/K	50℃	ASTM D 5470
Coefficient of Thermal Expansion (-55 to 288℃)	17 17 24	X Y Z	ppm/℃	23℃/50% RH	IPC-TM-650 2.4.4.1
Td	500		℃ TGA		ASTM D 3850
Density	2.1		gm/cm³	23℃	ASTM D 792
Copper Peel Stength	10.2		Ib/in.	1oz,EDC After Solder Float	IPC-TM 2.4.8
Flammability	V-0				UL 94
Lead-free Process Compatible	Yes
