Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers

Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers
Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers

Large Image :  Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-044.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO3035 Layer Count: 2 Layers
PCB Thickness: 1.6mm PCB Size: 100 X 100mm=6PCS
Copper Weight: 0.5oz Surface Finish: Immersion Gold
High Light:

60mil RF PCB Board


1.524mm RF PCB Board

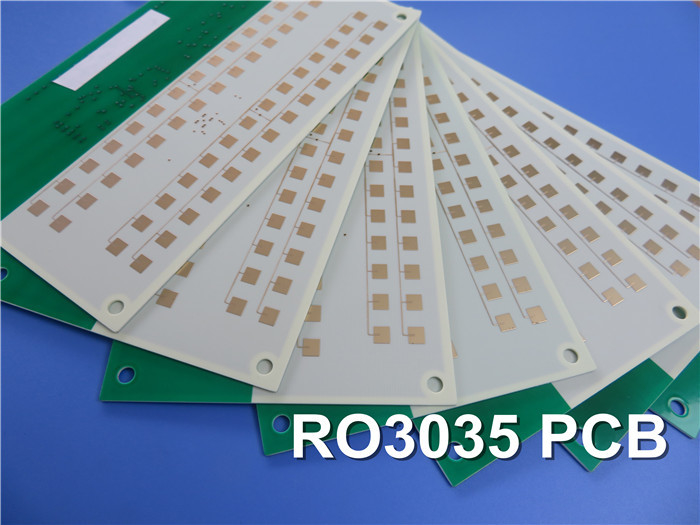

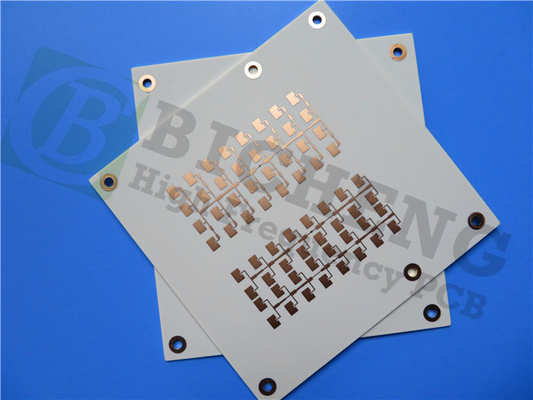

Rogers PCB Made on RO3035 60mil 1.524mm DK3.5 With Immersion Gold for Remote Meter Readers

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Rogers RO3035 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3035 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.


Typical applications:

1) Cellular telecommunications systems

2) Direct broadcast satellites

3) Patch antenna for wireless communications

4) Power backplanes


PCB Specifications

PCB SIZE 100 x 100mm=6PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO3035 1.524mm
copper ------- 18um(0.5 oz) + plate BOT Layer
Minimum Trace and Space: 14 mil / 14 mil
Minimum / Maximum Holes: 0.4 mm / 4.0 mm
Number of Different Holes: 1
Number of Drill Holes: 1
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
Glass Epoxy: RO3035 1.524mm
Final foil external: 1 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±0.16mm
Surface Finish Immersion Gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Rogers 3035 60mil 1.524mm RF PCB Board For Remote Meter Readers 0


Data Sheet of Rogers 3035 (RO3035)

RO3035 Typical Value
Property RO3035 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.50±0.05 Z   10 GHz/23 IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.6 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0015 Z   10 GHz/23 IPC-TM-650
Thermal Coefficient of ε -45 Z ppm/ 10 GHz -50to 150 IPC-TM-650
Dimensional Stability 0.11
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 107   MΩ.cm COND A IPC
Surface Resistivity 107   COND A IPC
Tensile Modulus 1025
MPa 23 ASTM D 638
Moisture Absorption 0.04   % D48/50 IPC-TM-650
Specific Heat     j/g/k   Calculated
Thermal Conductivity 0.5   W/M/K 50 ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288
ppm/ 23/50% RH IPC-TM-650
Td 500   TGA   ASTM D 3850
Density 2.1   gm/cm3 23 ASTM D 792
Copper Peel Stength 10.2   Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes
