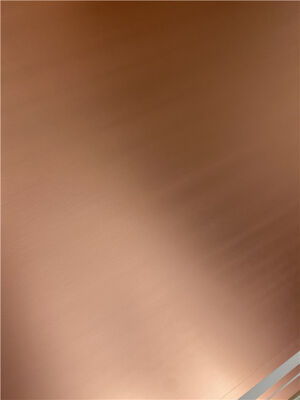

TLX-8 PCB Material High Frequency Laminates Copper Clad Sheet

TLX-8 delivers consistent and dependable performance across a broad spectrum of RF applications. Its versatility stems from a customizable 2.45–2.65 dielectric constant range, along with multiple thickness and copper cladding options, making it especially well-suited for low-layer-count microwave designs.

As a PTFE fiberglass laminate, TLX-8 is ideal for use in radar systems, mobile communications, microwave test equipment, transmission devices, and various RF components. It serves as a reliable workhorse in the RF microwave substrate industry, with fiberglass reinforcement providing critical mechanical stability in demanding environments, including:

- Creep resistance for PWBs mounted in housings subject to intense vibration during space launch
- Endurance in high-temperature engine modules
- Radiation tolerance in space applications (see NASA’s low outgassing materials database)
- Resistance to extreme marine conditions for naval antenna systems
- Stable performance across wide temperature fluctuations in airborne altimeter applications

The material’s broad dielectric constant range enables the efficient manufacture of couplers, splitters, combiners, amplifiers, antennas, and other critical components.

Benefits
- Excellent PIM performance in PCBs (measured below -160 dBc)
- Superior mechanical and thermal properties
- Low and stable dielectric constant
- Excellent dimensional stability
- Minimal moisture absorption
- Tightly controlled DK for consistent performance
- Low dissipation factor (DF)
- UL 94 V-0 flammability rating
- Optimized for low-layer-count microwave designs

Applications
- Antennas
- Mixers, splitters, filters, and combiners
- Passive RF components
