Dual Layer 60mil TLX-6 PCB 1.524mm Rigid Circuit ENIG

Detailed Product Description
High Light:

Rigid Circuit ENIG PCB Blog


Dual Layer PCB Blog

Introducing our newly shipped PCB, provided to meet the highest standards of performance and reliability. This 2-layer rigid PCB features a Taconic TLX-6 fiberglass fabric substrate with PTFE composites, offering exceptional electrical characteristics and thermal stability. With a process DK of 2.65 at 10 GHz/23°C and an operating temperature range of -40℃ to +85℃, this PCB is built to withstand demanding environments.


The construction details of this PCB are carefully crafted to optimize functionality and ease of use. With a board dimension of 124.65mm x 135mm, each piece is manufactured with precision, ensuring a tight tolerance of +/- 0.15mm. The minimum trace/space is 4/4 mils, allowing for intricate and detail designs. The board thickness measures 1.64mm, providing durability and sturdiness.


Featuring a copper layer thickness of 35μm on both sides, this PCB offers excellent electrical conductivity. The via plating has a thickness of 20μm, ensuring reliable connections throughout the board. The surface finish is done with immersion gold, providing a protective layer and enhancing solderability.


This PCB is intended to accommodate a wide range of components, with a total of 149 components and 223 pads. It includes 142 thru-hole pads, 54 top SMT pads, and 27 bottom SMT pads, allowing for versatile component placement. With 81 vias and 7 nets, this PCB enables seamless connectivity between different parts of the circuit.


Complying with IPC-Class-2 standards, this PCB meets rigorous quality requirements to ensure optimal performance and reliability. The artwork is supplied in Gerber RS-274-X format, ensuring compatibility with various design software and manufacturing processes.


Our PCBs are available worldwide, and we are dedicated to providing excellent customer support. For any technical questions or inquiries, please contact Ivy at We are committed to delivering top-notch PCB solutions tailored to your specific needs.


Trust our newly shipped PCB to provide exceptional performance and reliability for your electronic projects. Experience the difference with our high-quality PCBs supplied to meet the demands of today's technology-driven world.


TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15

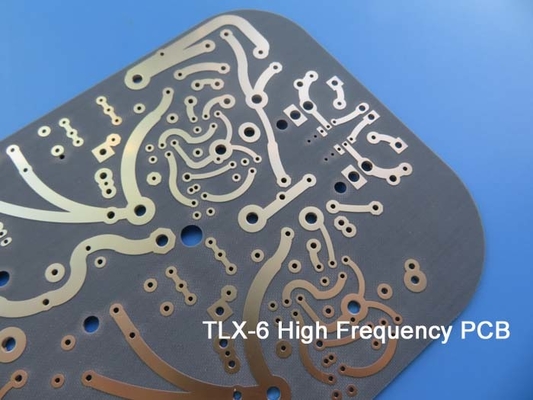

Dual Layer 60mil TLX-6 PCB 1.524mm Rigid Circuit ENIG 0

TLX-6: Unleashing Advanced Capabilities for High-Frequency PCB Designs


TLX-6, a member of the TLX series of high-performance PCB materials, has emerged as a leading choice for engineers and designers seeking exceptional electrical performance, signal integrity, and reliability in high-frequency applications. In this article, we delve into the key features and applications of TLX-6, highlighting its impressive capabilities and the advantages it offers in pushing the boundaries of high-frequency PCB designs.


Unveiling the Power of TLX-6
TLX-6, with its remarkable dielectric constant of 2.65, stands out as a game-changing material designed specifically for high-frequency PCB applications. Its advanced properties make it a preferred choice for industries such as telecommunications, aerospace, and computing, where signal integrity and performance are critical. TLX-6 provides exceptional electrical performance, low insertion loss, and excellent dimensional stability, enabling engineers to unlock the full potential of their high-frequency designs.


Exceptional Electrical Performance
TLX-6 sets a new benchmark in electrical performance for high-frequency PCB materials. With a low dielectric loss tangent and high thermal conductivity, it facilitates efficient signal transmission, minimizing signal distortion and ensuring excellent system performance. The material's superior dielectric constant of 2.65 enables precise control of impedance and propagation characteristics, enabling engineers to design circuits with optimal signal integrity and reduced signal loss.


Reliability and Thermal Stability
One of the key advantages of TLX-6 is its exceptional thermal stability. With an operating temperature range of -40°C to +85°C, TLX-6 maintains its electrical properties even in challenging environments. Its low coefficient of thermal expansion (CTE) ensures minimal dimensional changes, reducing the risk of stress-induced failures and ensuring long-term reliability for high-frequency PCB designs.


Applications in High-Frequency Designs
TLX-6 finds extensive applications in industries requiring high-frequency PCB designs. In the telecommunications sector, TLX-6 is utilized in base stations, wireless communication systems, and high-speed networking equipment, providing reliable signal transmission and exceptional performance. In the aerospace and defense industry, TLX-6 enables the development of radar systems, satellite technology, and avionics, where high-frequency performance and reliability are paramount. TLX-6 also caters to the needs of high-speed computing, advanced test and measurement equipment, and automotive applications, where it ensures optimal signal integrity and system efficiency.


TLX-6, a high-performance PCB material from the TLX series, empowers engineers and designers to achieve exceptional electrical performance, signal integrity, and reliability in high-frequency designs. With its impressive properties, TLX-6 is revolutionizing the way industries approach high-frequency PCB applications, enabling the realization of cutting-edge technologies and pushing the boundaries of innovation.


Dual Layer 60mil TLX-6 PCB 1.524mm Rigid Circuit ENIG 1
