1oz Taconic TLX-7 Green Soldermask 50 Mil RF PCB 2-Layer Circuit

Detailed Product Description
High Light:

50 Mil RF PCB Blog

,

RF PCB 2 Layer Circuit

,

Soldermask PCB Circuit

Discover our latest addition: the newly shipped PCB, setting new standards in quality, reliability, and performance. This meticulously crafted 2-layer rigid PCB is designed to excel in a wide range of applications, delivering exceptional results. Let's delve into its impressive features and specifications.



The PCB material employed is Taconic TLX-7, a robust fiberglass fabric infused with PTFE composites. This combination ensures outstanding durability and superior electrical performance. With a process DK of 2.6 at 10 GHz/23°C, this PCB guarantees reliable signal transmission with minimal loss, even at high frequencies. Operating seamlessly between temperatures ranging from -40℃ to +85℃, it remains resilient in diverse environmental conditions.



The stack-up of this PCB is optimized to enhance its functionality. It consists of two copper layers, each measuring 35 μm in thickness. The substrate, crafted from TLX-7, boasts a substantial 1.270 mm (50mil) thickness, providing a sturdy foundation for the circuitry. With precise construction, these layers and substrate work harmoniously to deliver exceptional performance.



In terms of dimensions, the PCB measures 195.49mm x 98.46mm (1PCS, +/- 0.15mm), offering a well-suited size for integration into various systems. The design allows for intricate circuit layouts, with a minimum trace/space requirement of 4/4 mils. The minimum hole size of 0.50mm ensures precise component assembly. The finished board thickness is 1.4mm, providing the necessary robustness for reliable operation.



This PCB features a 1oz (1.4 mils) outer layer copper weight, ensuring optimal electrical conductivity throughout the circuit. With a via plating thickness of 20 μm, efficient signal transfer is guaranteed. The immersion gold surface finish not only enhances the PCB's aesthetics but also offers excellent corrosion resistance and solderability. The top and bottom solder masks, both in green, provide effective insulation and protection.

Before shipment, each PCB undergoes a stringent 100% electrical test to ensure its reliability and performance. This thorough quality control process ensures that only the highest quality boards reach our customers.



With 145 components and a total of 205 pads, this PCB can accommodate complex circuit designs and offer ample connectivity options. Including 88 vias, it provides efficient signal routing throughout the board. Adhering to the IPC-Class-2 standard, this PCB meets the stringent quality requirements set by the industry.



Our newly shipped PCB is available worldwide, ready to empower your electronic designs with its exceptional performance. For any technical inquiries or further information, please reach out to Ivy at sales10@bichengpcb.com. Experience the possibilities with our top-of-the-line PCB solution.



TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 RF-30 3.00
TLC-32 3.20
TLF-35 3.50
TLF-35-xxxx-A 3.50
RF-35 RF-35A2 3.50
TRF-41 4.10
TRF-43 4.30
TRF-45 4.50
RF-60A 6.15
CER-10 10

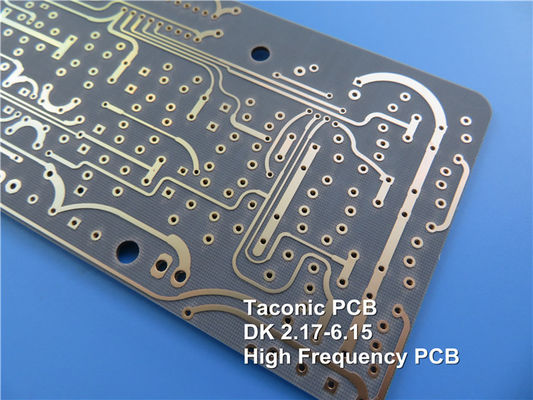

1oz Taconic TLX-7 Green Soldermask 50 Mil RF PCB 2-Layer Circuit 0


TLX-7: Unleashing High-Performance Potential in PCB Designs



Introduction
TLX-7, a member of the TLX series of high-performance PCB materials, is a game-changer for engineers and designers seeking exceptional electrical performance, reliability, and thermal stability. In this article, we explore the key features and applications of TLX-7, highlighting its remarkable capabilities and the benefits it brings to PCB projects in various industries.



Unveiling the Power of TLX-7
TLX-7, with its impressive dielectric constant of 2.60, is specifically engineered to meet the demanding requirements of high-frequency and high-speed digital applications. This advanced material offers outstanding signal integrity, low insertion loss, and excellent dimensional stability, making it an ideal choice for industries such as automotive, aerospace, telecommunications, and computing.



Exceptional Electrical Performance
TLX-7's exceptional electrical properties set it apart from conventional PCB materials. With a low dielectric loss tangent and high thermal conductivity, it enables efficient signal transmission and minimizes signal distortion, resulting in improved system performance. The material's high glass transition temperature and low moisture absorption ensure consistent electrical characteristics even in challenging operating environments.



Thermal Stability and Reliability
One of the key advantages of TLX-7 is its exceptional thermal stability. With a wide operating temperature range of -40°C to +85°C, this material remains resilient in extreme conditions, making it suitable for demanding applications. Its low coefficient of thermal expansion (CTE) ensures minimal dimensional changes, reducing the risk of solder joint failures and ensuring long-term reliability.



Applications in Various Industries
TLX-7, a high-performance PCB material, finds extensive applications in various industries. In the field of antennas, TLX-7 enables the design and development of efficient and reliable antenna systems that are vital for wireless communication and signal reception. Moreover, TLX-7 is well-suited for the fabrication of couplers, splitters, and combiners, which play a crucial role in signal distribution and power management. In the realm of active components, TLX-7 serves as an excellent substrate for amplifiers, mixers, and filters, ensuring optimal performance and signal integrity. Additionally, TLX-7's exceptional electrical properties make it an ideal choice for passive components, such as resistors, capacitors, and inductors, contributing to the overall functionality and reliability of electronic circuits.



Conclusion
TLX-7, a high-performance PCB material from the TLX series, empowers engineers and designers to achieve exceptional electrical performance, reliability, and thermal stability in their PCB designs. With its remarkable properties, TLX-7 is revolutionizing the way industries approach high-frequency and high-speed digital applications, enabling the development of cutting-edge technologies and pushing the boundaries of innovation.

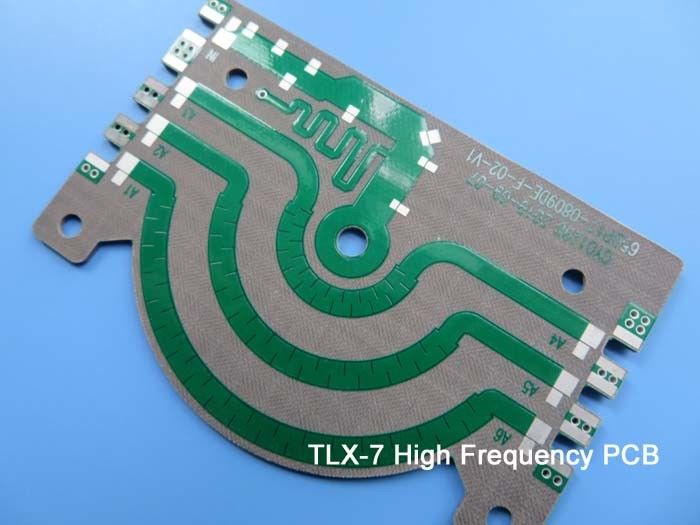

1oz Taconic TLX-7 Green Soldermask 50 Mil RF PCB 2-Layer Circuit 1
