Multi Layer FR4 PCB Board High Tg Lead Free 400mmX500mm
  • name
  • name
  • name
  • name
  • name

Multi Layer FR4 PCB Board High Tg Lead Free 400mmX500mm

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-506.V1.0
Base Material:
High Tg, Lead Free High Reliability Epoxy Resin
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP, Immersion Tin, Immersion Silver Etc..
Highlight:

Multi Layer FR4 PCB Board

,

Lead Free PCB Printed Circuit Board

,

400mmX500mm Printed Circuit Board

Product Description

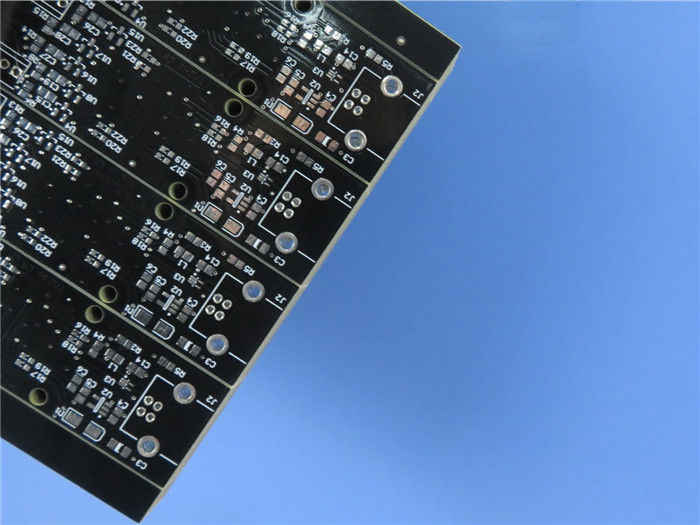

High Tg Multi-layer Printed Circuit Board (PCB) on IT-180ATC and IT-180GNBS Lead Free Compliance

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

IT-180ATC is an advanced high Tg (175℃ by DSC) multifunctional filled epoxy with high thermal reliability and CAF resistance. It’s suitable for various applications and can pass 260℃ lead free assembly. Thickness ranges 0.5mm to 3.2mm, copper weight 0.5oz to 3oz.



Applications

-Automotive (Engine room ECU)

-Multilayer and HDI PCB

-Backplanes

-Data Storage

-Server and Networking

-Telecommunications

-Heavy Copper



Multi Layer FR4 PCB Board High Tg Lead Free 400mmX500mm 0



Key Features

-Low CTE

-High heat resistance

-Excellent CAF resistance

-Good through-hole reliability



Our PCB Capability (IT-180ATC)

PCB Material: High Tg, Lead Free High Reliability Epoxy Resin
Designation: IT-180ATC
Dielectric constant: 4.4 at 1GHz
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
PCB thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver etc..
Technology: HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc.



General Properties of IT-180ATC

Items IPC TM-650 Typical Value Unit
Peel Strength, minimum 2.4.8   lb/inch
A. Low profile copper foil 5
B. Standard profile copper foil 8
Volume Resistivity 2.5.17.1 1x109 M-cm
Surface Resistivity 2.5.17.1 1x108 M
Moisture Absorption, maximum 2.6.2.1 0.1 %
Permittivity (Dk, 50% resin content)     --
A. 1MHz 2.5.5.9 4.5
B. 1GHz 2.5.5.9 4.4
Loss Tangent (Df, 50% resin content)     --
A. 1MHz 2.5.5.9 0.014
B. 1GHz 2.5.5.9 0.015
Flexural Strength, minimum     N/mm2
A. Length direction 2.4.4 500-530
B. Cross direction   410-440
Thermal Stress 10 s at 288°C
A. Unetched 2.4.13.1 Pass Rating
B. Etched   Pass
Flammability UL94 V-0 Rating
Comparative Tracking Index (CTI) IEC 60112 / UL 746 CTI 3 (175-249) Class (Volts)
Glass Transition Temperature(DSC) 2.4.25 175 ˚C
Decomposition Temperature 2.4.24.6 345 ˚C
X/Y Axis CTE (40℃ to 125℃) 2.4.41 11-13 / 13-15 ppm/˚C
Z-Axis CTE
A. Alpha 1   45 ppm/˚C
B. Alpha 2 2.4.24 210 ppm/˚C
C. 50 to 260 Degrees C   2.7 %
Thermal Resistance
A. T260 2.4.24.1 >60 Minutes
B. T288   20 Minutes



Multi Layer FR4 PCB Board High Tg Lead Free 400mmX500mm 1



Tags:

FR4 PCB Board,

6 Layer FR4 PCB Board,

Mobile Broadband Gold Finger PCB
