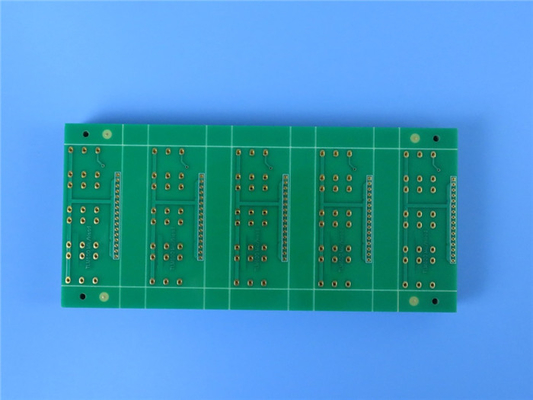

High Tg PCB Printed Circuit Board S1000-2MB Prepreg With Immersion Gold
  • name
  • name
  • name
  • name
  • name

High Tg PCB Printed Circuit Board S1000-2MB Prepreg With Immersion Gold

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-504.V1.0
Base Material:
High Tg, High Performance And Low CTE Epoxy Resin
PCB Thickness:
0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP, Immersion Tin, Immersion Silver Etc..
Highlight:

High Tg PCB Printed Circuit Board

,

Immersion Gold PCB Printed Circuit Board

,

0.6mm PCB Printed Circuit Board

Product Description



High Tg Printed Circuit Board (PCB) on S1000-2M Core and S1000-2MB Prepreg with Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

S1000-2M is a type of High Tg printed circuit board material manufactured by Shengyi with characteristics of high performance and low CTE, suitable for high multilayer PCB. The thickness ranges 0.05mm to 3.2mm, copper weight 0.5oz to 3oz etc.



Features



- Lead-Free Compatible FR-4 Laminate: Ensures environmental compliance and supports modern soldering processes.


- High Glass Transition Temperature (Tg 170°C): Provides superior thermal stability, preventing deformation under extreme heat.


- UV Blocking/AOI Compatible: Enhances inspection accuracy and prevents false readings during automated optical inspection.


- Exceptional Heat Resistance: Maintains structural and electrical integrity in high-temperature environments.


- Reduced Z-Axis CTE: Minimizes plated through-hole stress, improving reliability during thermal cycling.


- Superior Anti-CAF Performance: Resists conductive anodic filamentation, ensuring long-term electrical reliability.


- Low Water Absorption: Protects against moisture-induced degradation in humid operating conditions.


- Excellent Mechanical Processability: Allows precise drilling, routing, and fabrication without material damage.

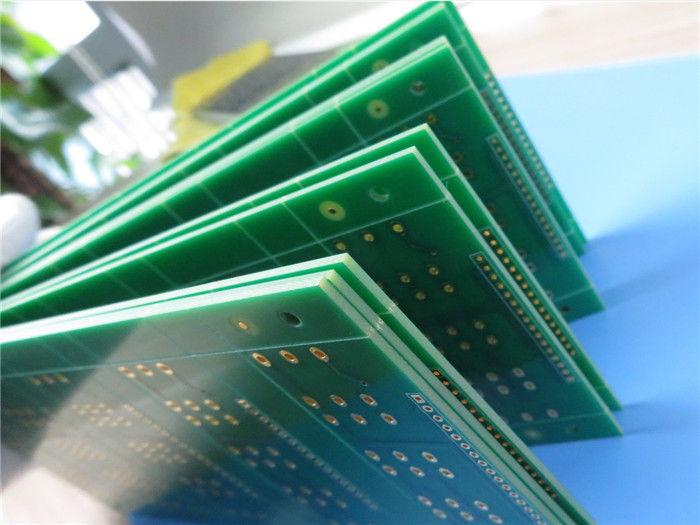

High Tg PCB Printed Circuit Board S1000-2MB Prepreg With Immersion Gold 0



Applications

Computer

Communication

Automotive electronics

Suitable for high layer count PCB



Our PCB Capability (S1000-2M)

PCB Material: High Tg, High Performance and Low CTE Epoxy Resin
Designation: S1000-2M
Dielectric constant: 4.6 at 10GHz
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm)
PCB thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver etc..
Technology: HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc.



General Properties of S1000-2M

Test Items Test Method Test Condition Unit Typical Value
Tg IPC-TM-650 2.4.24.4 DMA ℃ 185
IPC-TM-650 2.4.25D DSC ℃ 180
Td IPC-TM-650 2.4.24.6 TGA (5% W.L) ℃ 355
T260 IPC-TM-650 2.4.24.1 TMA min >60
T288 IPC-TM-650 2.4.24.1 TMA min 30
T300 IPC-TM-650 2.4.24.1 TMA min 15
Thermal Stress IPC-TM-650 2.4.13.1 288℃, solder dip s >100
CTE (Z-axis) IPC-TM-650 2.4.24 Before Tg ppm/℃ 41
IPC-TM-650 2.4.24 After Tg ppm/℃ 208
IPC-TM-650 2.4.24 50-260℃ % 2.4
Permittivity (1GHz) IPC-TM-650 2.5.5.9 C-24/23/50 - 4.6
Loss Tangent (1GHz) IPC-TM-650 2.5.5.9 C-24/23/50 - 0.018
Volume Resistivity IPC-TM-650 2.5.17.1 C-96/35/90 MΩ-cm 8.7×108
Surface Resistivity IPC-TM-650 2.5.17.1 C-96/35/90 MΩ 2.2×107
Arc Resistance IPC-TM-650 2.5.1 D-48/50+D-0.5/23 s 133
Dielectric Breakdown IPC-TM-650 2.5.6 D-48/50+D-0.5/23 kV >45
Peel Strength (1oz) IPC-TM-650 2.4.8 288℃/10s N/mm [lb/in] 1.3 [7.43]
Flexural Strength (LW/CW) IPC-TM-650 2.4.4 A Mpa 567/442
Water Absorption IPC-TM-650 2.6.2.1 D-24/23 % 0.08
Flammability UL94 C-48/23/50 Rating V-0
CTI IEC60112 A Rating PLC 3
