Lead Free Multilayer Printed Circuit Board E glass coated
  • name
  • name
  • name
  • name

Lead Free Multilayer Printed Circuit Board E glass coated

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-502.V1.0
Base Material:
High-Tg And High Thermal Reliability Epoxy Resin
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
10mil (0.254mm), 15mil (0.381mm), 20mil (0.508mm), 25mil(0.635mm), 30mil (0.762mm), 62mil(1.575mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm), 4oz (140µm), 5oz (175µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP, Immersion Tin, Immersion Silver Etc..
Highlight:

Lead Free Multilayer Printed Circuit Board

,

E Glass Coated Printed Circuit Board

,

Hybrid PCB Printed Circuit Board

Product Description

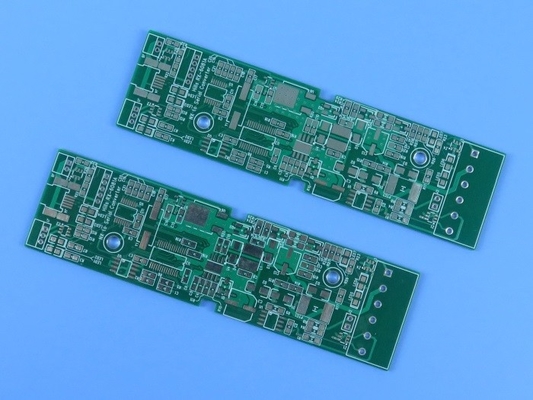

High Tg Lead Free Multi-layer Printed Circuit Board Built on TU-768 Core and TU-768P Prepreg

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

TU-768 / TU-768P laminate / prepreg are made of high quality woven E-glass coated with the epoxy resin system, which provides the laminates with UV-block characteristic, and compatibility with automated optical inspection (AOI) process. These products are suitable for boards that need to survive severe thermal cycles, or to experience excessive assembly work. TU-768 laminates exhibit excellent CTE, superior chemical resistance and thermal stability plus CAF resistance property.



Lead Free Multilayer Printed Circuit Board E glass coated 0



Main Applications

Consumer Electronics

Server, workstation

Automotive



Key Features

Lead Free process compatible

Excellent coefficient of thermal expansion

Anti-CAF property

Superior chemical and thermal resistance

Fluorescence for AOI

Moisture resistance



Our PCB Capability (TU-768)

High Tg Lead Free Multi-layer Printed Circuit Board Built on TU-768 Core and TU-768P Prepreg High-Tg and High Thermal Reliability Epoxy Resin
Designation: TU-768
Dielectric constant: 4.3
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm), 4oz (140µm), 5oz (175µm)
PCB thickness: 10mil (0.254mm), 15mil (0.381mm), 20mil (0.508mm), 25mil(0.635mm), 30mil (0.762mm), 62mil(1.575mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver etc..
Technology: HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc.



Lead Free Multilayer Printed Circuit Board E glass coated 1



Typical Properties of TU-768

  Typical Values Conditioning IPC-4101 /126
Thermal
Tg (DMA) 190°C
Tg (DSC) 180°C   > 170°C
Tg (TMA) 170°C E-2/105
Td (TGA) 350°C   > 340°C
CTE x-axis 11~15 ppm/°C   N/A
CTE y-axis 11~15 ppm/°C E-2/105 N/A
CTE z-axis 2.70%   < 3.0%
Thermal Stress,Solder Float, 288°C > 60 sec A > 10 sec
T260 > 60 min   > 30 min
T288 > 20 min E-2/105 > 15 min
T300 > 2 min   > 2 min
Flammability 94V-0 E-24/125 94V-0
DK & DF
Permittivity (RC 50%) @10GHz 4.3
Loss Tangent (RC 50%) @10GHz 0.018
Electrical
Permittivity (RC50%)
1GHz (SPC method/4291B) 4.4 / 4.3   < 5.2
5GHz (SPC method) 4.3 E-2/105 N/A
10GHz (SPC method) 4.3   N/A
Loss Tangent (RC50%)
1GHz (SPC method/4291B) 0.019 /0.018   < 0.035
5GHz (SPC method) 0.021 E-2/105 N/A
10GHz (SPC method) 0.023   N/A
Volume Resistivity > 1010 MΩ•cm C-96/35/90 > 106 MΩ•cm
Surface Resistivity > 108 MΩ C-96/35/90 > 104 MΩ
Electric Strength > 40 KV/mm A > 30 KV/mm
Dielectric Breakdown > 50 kV A > 40 KV
Mechanical
Young’s Modulus
Warp Direction 25 GPa A N/A
Fill Direction 22 GPa
Flexural Strength
Lengthwise > 60,000 psi A > 60,000 psi
Crosswise > 50,000 psi A > 50,000 psi
Peel Strength, 1.0 oz RTF Cu foil 7~9 lb/in A > 4 lb/in
Water Absorption 0.18% E-1/105+D-24/23 < 0.8 %
