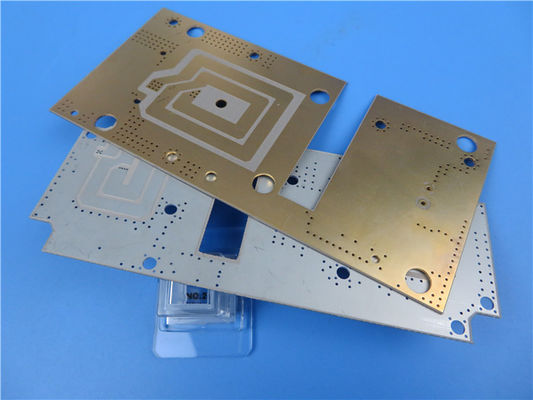

Double Layer RF-35A2 PCB 20mil Taconic PCB With Immersion Gold

Large Image : Double Layer RF-35A2 PCB 20mil Taconic PCB With Immersion Gold

Product Details:

Place of Origin:	CHINA
Brand Name:	Bicheng
Certification:	UL, ISO9001, IATF16949
Model Number:	BIC-168.V1.0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Vacuum bags+Cartons
Delivery Time:	8-9 working days
Payment Terms:	T/T
Supply Ability:	5000PCS per month

Contact Now

Detailed Product Description

Base Material:	PTFE Ceramic Fiberglass	Layer Count:	Double Layer, Multilayer, Hybrid PCB
PCB Thickness:	10mil (0.254mm); 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)	PCB Size:	≤400mm X 500mm
Solder Mask:	Green, Black, Blue, Yellow, Red Etc.	Copper Weight:	0.5oz (17 µm), 1oz (35µm)
Surface Finish:	Bare Copper, HASL, ENIG, Immersion Silver, Immersoin Tin, OSP Etc..
High Light:	PTFE Ceramic Fiberglass PCB Board , 20mil Fiberglass PCB Board , Power Amplifiers Fiberglass PCB Board

Taconic RF-35A2 PCB 20mil (0.508 mm) 30mil(0.762mm) 60mil (1.524mm) With Immersion Gold Immersion Silver and Blue Mask

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

Taconic’s RF-35A2 substrate is designed to have ultra-low fiberglass content to achieve "best in class" insertion loss properties and the uniform dielectric constant 3.5 +/-0.05 throughout the laminate. It is a type of ultra low loss power amplifier material.

The uniform dispersion of ceramics throughout the laminate yields an extremely low X and Y thermal expansion coefficient. Low modulus and low X-Y CTE values make RF-35A2 an attractive material for chip carrier in surface mounting technology.

RF-35A2 is manufactured with a proprietary multi-step process with excellent dielectric performance and excellent copper peel adhesion.The low 0.0015 dissipation factor at 10 GHz allows for maximum power transfer resulting in low heat generation.

Double Layer RF-35A2 PCB 20mil Taconic PCB With Immersion Gold 0

Benefits:

Low loss properties

DK tolerance of +/- 0.05

Homogeneous DK

Excellent peel strength

Low moisture absorption

Our PCB Capability (RF-35A2)

PCB Material:	PTFE Ceramic Fiberglass
Designation:	RF-35A2
Dielectric constant:	3.15
Dissipation Factor	0.0015
Layer count:	Double Layer, Multilayer, Hybrid PCB
Copper weight:	0.5oz (17 µm), 1oz (35µm)
PCB thickness:	10mil (0.254mm); 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
PCB thickness:
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Bare copper, HASL, ENIG, Immersion silver, Immersoin tin, OSP etc..

Applications:

Power amplifiers

Filters / couplers

High speed digital

Passive components

Wireless antennas

RF-35A2 Typical Values

RF-35A2 Typical Values
Property	Test Method	Unit	Value	Unit	Value
Dk @ 10 GHz	IPC-650 2.5.5.5.1 (Modified)		3.5		3.5
Df @ 10 GHz	IPC-650 2.5.5.5.1 (Modified)		0.0015		0.0015
Moisture Absorption	IPC-650 2.6.2.1	%	0.03	%	0.03
Dielectric Breakdown	IPC-650 2.5.6/ASTM D 149	kV	59	kV	59
Dielectric Strength	ASTM D 149	V/mil	1000	V/mm	39,370
Volume Resistivity	IPC-650 2.5.17.1 Sec. 5.2.1 (Humidity Cond.)	Mohm/cm	10^9	Mohm/cm	10^9
Surface Resistivity	IPC-650 2.5.17.1 Sec. 5.2.1 (Humidity Cond.)	Mohm	10^8	Mohm	10^8
Arc Resistance	IPC-650 2.5.1	Seconds	242	Seconds	242
Flexural Strength (MD)	IPC-650 2.4.4	kpsi	24	N/mm²	165
Flexural Strength (CD)	IPC-650 2.4.4	kpsi	15	N/mm²	103
Tensile Strength (MD)	ASTM D 3039	psi	16,800	N/mm²	116
Tensile Strength (CD)	ASTM D 3039	psi	11,000	N/mm²	75.8
Young’s Modulus (MD)	ASTM D 3039	psi	106	N/mm²	8,343
Young’s Modulus (CD)	ASTM D 3039	psi	106	N/mm²	7,171
Poisson’s Ratio (MD)	ASTM D 3039		0.14		0.14
Poisson’s Ratio (CD)	ASTM D 3039		0.1		0.1
Strain at Break (MD)	ASTM D 3039	%	1.6	%	1.6
Strain at Break (CD)	ASTM D 3039	%	1.4	%	1.4
Compressive Modulus (Z axis)	ASTM D 695 (23°C)	kpsi	385	N/mm²	2,650
Peel Strength (1 oz. VLP)	IPC-650 2.4.8 (Thermal Stress)	lbs/in	12	N/mm	2.1
Peel Strength (1 oz. VLP)	IPC-650 2.4.8.3 (150°C ) (Elevated Temp.)	lbs/in	14	N/mm	2.5
Peel Strength (1 oz. VLP)	IPC-650 2.4.8 Sec. 5.2.3 (Proc. Chemicals)	lbs/in	11	N/mm	2
Density (Specific Gravity)		gm/cm³	2.28	gm/cm³	2.28
Specific Heat	ASTM E 1269 (DSC) (100°C)	J/g/K	0.99	J/g/K	0.99
Thermal Conductivity	ASTM F 433	W/M*K	0.29	W/M*K	0.29
Td	IPC-650 2.4.24.6 2% Weight Loss	°C	528	°C	528
Td	IPC-650 2.4.24.6 5% Weight Loss	°C	547	°C	547
CTE (x)	IPC-650 2.4.41 (>RT - 125°C)	ppm/°C	10	ppm/°C	10
CTE (y)	IPC-650 2.4.41 (>RT - 125°C)	ppm/°C	13	ppm/°C	13
CTE (z)	IPC-650 2.4.41 (>RT - 125°C)	ppm/°C	108	ppm/°C	108

Double Layer RF-35A2 PCB 20mil Taconic PCB With Immersion Gold 1
