TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish

TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish
TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish

Large Image :  TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-091.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Organic-ceramic Laminates TLF-35 Layer Count: 1 Layer, 2 Layer, 4 Layer.
PCB Thickness: 0.8mm, 1.6mm PCB Size: ≤400mm X 500mm
Copper Weight: 0.5oz, 1oz, 2oz Surface Finish: Bare Copper, HASL, ENIG, Immersion Tin Etc.
High Light:

Bare Copper Multilayer PCB Board

,

400x500mm Multilayer PCB Board

,

IATF16949 Multilayer PCB Board

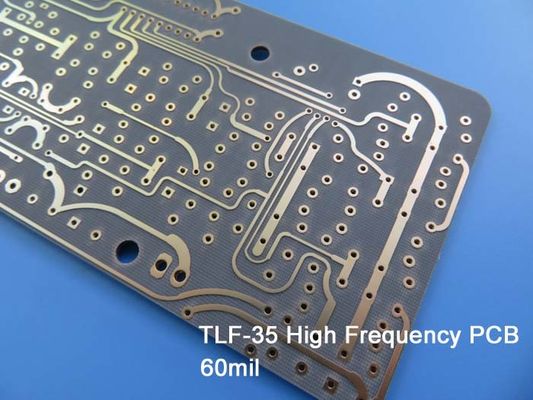

Taconic TLF-35 High Frequency PCB with 30mil, 60mil Thick Coating Immersion Gold, HASL, Immersion Silver and Tin

(PCB's are custom-made products, the picture and parameters shown are just for reference)



Hello everyone,

Today, we talk about TLF-35 high frequency PCB.



Taconic TLF-35 is an organic-ceramic laminates which is based on woven glass reinforcement. It is a result of both ceramic fill technology and coated PTFE fiberglass.



TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish 0



We benefit from its following advantages:

1. Improved phase intermodulation distortion (PIMD) with DK3.5

TLF-35 is designed to obtain improved PIMD performances on size effective PCBs for antenna application. The dielectric constant of TLF-35 is 3.5 which is similar with PIMD required levels.



2. Improved PTH quality

It shows better PTH quality which results in more stable hole wall and insulation resistance even for the smaller drilled holes.



3. Stable at high frequency

TLF-35 is designed to offer superior high frequency performance.



4. Low moisture absorption

Its ultra-low moisture absorption rate and low dissipation factor minimize phase shift with frequency.



5. Cost.

Low cost realizes high volume commercial microwave and radio frequency application.



TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish 1



Typical applications are shown as follows.

1. Antenna

2. Power amplifiers (TD-SCDMA, WCDMAS, LTE, WLAN etc.)

3. LNA, Repeater PA

4. Passive RF components (Filters, Couplers etc.)



Our PCB Capability (TLF-35)

PCB Capability
PCB Material: Organic-ceramic Laminates
Designation: TLF-35
Dielectric constant 3.50 ±0.05
Layer count: 1 Layer, 2 Layer, 4 Layer.
Copper weight: 0.5oz, 1oz, 2oz
PCB thickness: 0.8mm, 1.6mm
PCB Size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin etc.




We’re able to supply TLF-35 high frequency PCB with 1oz and 2oz copper, 0.8mm and 1.6mm thick, maximum panel size 400 X 500mm, with surface finish bare copper, HASL, ENIG, immersion tin etc.



Bicheng specializes in providing you with prototype, small batches and mass production service.

If you have any questions, please feel free to contact us.

Thank you for your reading.



Appendix: Typical Values of TLF-35

Property Test Method Units Value Units Value
Dielectric Constant @ 1.9 GHz IPC-TM650 2.5.5.5.1 Mod   3.50 ±0.05   3.50 ±0.05
Dissipation Factor @ 1.9 GHz IPC-TM650 2.5.5.5.1 Mod   0.0016   0.0016
Dissipation Factor @ 10 GHz IPC-TM650 2.5.5.5.1 Mod   0.0022   0.0022
Water Absorption IPC-TM 650 2.6.2.1 % 0.03 % 0.03
Peel Strength (1 oz. copper) IPC-TM 650 2.4.8 Lbs./linear inch 10 N/mm 1.8
Volume Resistivity IPC-TM 650 2.5.17.1 Mohm·cm 2.0 x 109 Mohm·cm 2.0 x 109
Surface Resistivity IPC-TM 650 2.5.17.1 Mohm 3.0 x 108 Mohm 3.0 x 108
Flexural Strength Lengthwise IPC-TM 650 650 2.4.4 psi 13000 N/mm2 90
Flexural Strength Crosswise IPC-TM 650 650 2.4.4 psi 13000 N/mm2 90
Thermal Conductivity IPC-TM 650 2.4.50 W/m/K 0.37 W/m/K 0.37
x-y CTE (50 ~ 150) IPC-TM 650 2.4.41 ppm/ 9-12 ppm/ 9-12
z CTE (50 ~ 150) IPC-TM 650 2.4.41 ppm/ 80 ppm/ 80
Flammability UL-94   V-0   V-0



TLF-35 400x500mm Multilayer Taconic PCB Board Bare Copper Surface Finish 2
