CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate

MOQ:	1PCS
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-094.V1.0

Base Material:

Organic-ceramic Laminate Based On Woven Glass Reinforcement.

Layer Count:

Double Layer, Multilayer, Hybrid PCB

PCB Thickness:

25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm), 50mil (1.27mm)

PCB Size:

≤400mm X 500mm

Solder Mask:

Green, Black, Blue, Yellow, Red Etc.

Copper Weight:

0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

Surface Finish:

Bare Copper, HASL, ENIG,Silver, Tin And OSP Etc..

Highlight:

25mil RF PCB Board

0.635mm RF PCB Board

Multilayer RF PCB Board

Product Description

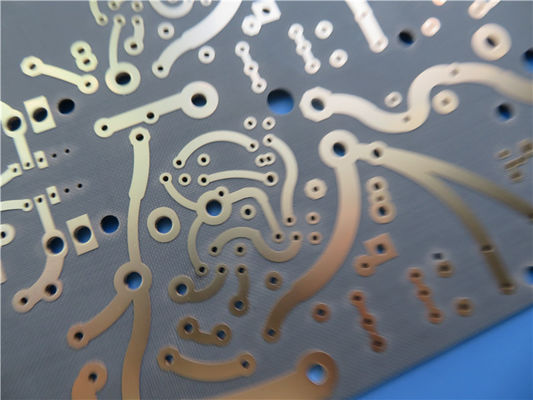

Taconic RF PCB on CER-10 with 25mil, 30mil, 47mil and 50mil

(PCB's are custom-made products, the picture and parameters shown are just for reference)

CER-10 is an organic-ceramic DK-10 laminate in the ORCER family of Taconic products. It is based on a woven glass reinforcement. CER-10 exhibits exceptional interlaminar bond strength and solder resistance. Its proprietary composition results in low moisture absorption and uniform electrical properties.

Benefits:

Exceptional Interlaminar Bond

Low moisture absorption

Enhanced dimensonal stability

Low Z-Axis expansion

Stable DK over frequency

Increased flexural strength

Circuit board miniturization

Applications:

Power amplifiers

Filters and couplers

Passive components

CER-10’s woven glass reinforcement ensures excellent dimensional stability and enhances flexural strength. This DK-10 laminate exhibits low Z-axis expansion (CTE 46 ppm/°C), allowing for plated-through-hole reliability in extreme thermal environments.

CER-10 laminates exhibit flammability of V-0 and are tested in accordance with IPC-TM 650. A certificate of conformance containing lot-specific data accompanies each shipment.

Our PCB Capability (CER-10)

PCB Material:	Organic-ceramic Laminate based on Woven Glass Reinforcement.
Designation:	CER-10
Dielectric constant:	10
Layer count:	Double Layer, Multilayer, Hybrid PCB
Copper weight:	0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness:	25mil (0.635mm), 30mil(0.762mm), 47mil(1.194mm), 50mil (1.27mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Bare copper, HASL, ENIG,Silver, Tin and OSP etc..

CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate 0

Typical Value of CER-10

Property	Test Method	Unit	Value	Unit	Value
Dielectric Constant (Nominal)	IPC-TM-650 2.5.5.6		10		10
Dissipation Factor 10 GHz	IPC-TM-650 2.5.5.5.1		0.0035		0.0035
Moisture Absorption	IPC-TM-650 2.6.2.1	%	0.02	%	0.02
Dielectric Breakdown	IPC-TM-650 2.5.6	kV	44	kV	44
Volume Resistivity	IPC-TM-650 2.5.17.1	Mohm/cm	2.1 x 10⁸	Mohm/cm	2.1 x 10⁸
Surface Resistivity	IPC-TM-650 2.5.17.1	Mohm	1.1 x 10⁹	Mohm	1.1 x 10⁹
Arc Resistance	IPC-TM-650 2.5.1	Seconds	>180	Seconds	>180
Flexural Strength (MD)	ASTM D 790	psi	16500	N/mm²	114
Flexural Strength (CD)	ASTM D 790	psi	15500	N/mm²	107
Tensile Strength (MD)	ASTM D 638	psi	7700	N/mm²	53
Tensile Strength (CD)	ASTM D 3039	psi	6700	N/mm²	46
Peel Strength (1 oz. ED)	IPC-TM-650 2.4.8	lbs/linear inch	9	N/mm	1.61
Dimensional Stability (MD)	IPC-TM-650 2.4.39	in/in	-0.0002	mm/mm	-0.0002
Dimensional Stability (CD)	IPC-TM-650 2.4.39	in/in	-0.0003	mm/mm	-0.0003
Density (Specific Gravity)		g/cm³	3.05	g/cm³	3.05
Thermal Conductivity	ASTM F 433	W/m/K	0.63	W/m/K	0.63
CTE (x-y)	ASTM D 3386 (TMA)	ppm/℃	13-15	ppm/℃	13-15
CTE (z)	ASTM D 3386 (TMA)	ppm/℃	46	ppm/℃	46
Outgassing (%TML)	ASTM E 595	%	0.02	%	0.02
Outgassing (%CVCM)	ASTM E 595	%	0.01	%	0.01
Outgassing (%WVR)	ASTM E 595	%	0.01	%	0.01
Flammability Rating	UL 94		V-0		V-0

CER-10 PCB Multilayer 25mil 0.635mm RF Taconic PCB Organic Ceramic Laminate 1
