High Frequency Taconic PCB Board RF-60A 1oz 25mil Bare Copper
  • name

High Frequency Taconic PCB Board RF-60A 1oz 25mil Bare Copper

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-4.V1.0
Based Material:
RF-60A
Thickness:
25mil
PCB Size:
12'x18', 18'x24'...
Surface:
Bare Copper
Highlight:

Bare Copper PCB Board

,

1oz Taconic PCB

,

RF-60A Taconic PCB

Product Description

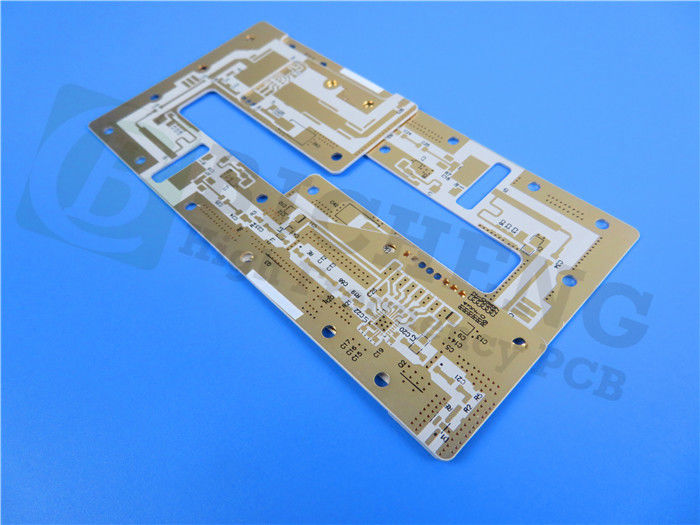

High Frequency PCB RF-60A 1oz 25mil Bare Copper PCB



The woven glass reinforcing in RF-60A ensures superior three-dimensional stability and increases flexural strength. Because of its limited Z-axis expansion, it can reliably be plated through holes in extremely hot settings. It is the optimum high DK product for applications needing decreased circuit size and weight, with a dielectric constant of roughly 6.15. It is a great option for RF circuits due to the low electrical loss factor.



High Frequency Taconic PCB Board RF-60A 1oz 25mil Bare Copper 0



Typical Applications:

Power Amplifiers

Filters & Couplers

Passive Components

Antennas



Data Sheet of Taconic RF-60A

Property Test Method Unit Value Unit Value
Dk @ 10 GHz IPC-650 2.5.5.6   6.15   6.15
Df @ 10 GHz IPC-650 2.5.5.5.1   0.0038   0.0038
Moisture Absorption IPC-650 2.6.2.1 % 0.02 % 0.02
Dielectric Breakdown IPC-650 2.5.6 kV 53 kV 53
Dielectric Strength ASTM D 149 V/mil 880 kV/mm 35
Volume Resistivity IPC-650 2.5.17.1 (After Humidity) Mohm/cm 9.0 x 108 Mohm/cm 9.0 x 108
Surface Resistivity IPC-650 2.5.17.1 (After Humidity) Mohm 2.28 x 108 Mohm 2.28 x 108
Arc Resistance IPC-650 2.5.1 Seconds 193 Seconds 193
Flexural Strength (MD) ASTM D 790 psi 18,300 N/mm2 126.2
Flexural Strength (CD) ASTM D 790 psi 14,600 N/mm2 100.7
Tensile Strength (MD) ASTM D 3039 psi 19,500 N/mm2 134.4
Tensile Strength (CD) ASTM D 3039 psi 16,300 N/mm2 112.4
Young’s Modulus ASTM D 3039 kpsi 1,590 N/mm2 11,000
Poisson’s Ratio ASTM D 3039   0.068 N/mm2 0.068
Compressive Modulus ASTM D 695 (23°C) kpsi 338   2,330
Peel Strength (1 oz. ED) IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress) lbs/in 8 N/mm 1.4
Dimensional Stability (MD) IPC-650 2.4.39 Sec. 5.4 (After Bake) mils/in 0.68 mm/M 0.68
Dimensional Stability (CD) IPC-650 2.4.39 Sec. 5.4 (After Bake) mils/in 1.05 mm/M 1.05
Density (Specific Gravity) ASTM D 792 g/cm3 2.79 g/cm3 2.79
Thermal Conductivity ASTM F 433 W/M*K 0.4 W/M*K 0.4
CTE (X axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 9 ppm/°C 9
CTE (Y axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 8 ppm/°C 8
CTE (Z axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 69 ppm/°C 69
Outgassing (% TML) ASTM E 595* % 0.02 % 0.02
Outgassing (% CVCM) ASTM E 595* % 0.00 % 0.00
Outgassing (% WVR) ASTM E 595* % 0.01 % 0.01
Flammability Rating UL 94   V-0   V-0
