Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil
  • name
  • name

Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-171.V1.0
Base Material:
PTFE Ceramic Fiberglass
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
10mil (0.254mm); 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Silver, Immersoin Tin, OSP Etc..
Highlight:

60mil RF Taconic PCB

,

Hybrid RF Taconic PCB

,

Organic Ceramic Laminate Taconic PCB

Product Description



RF-35 Taconic High Frequency PCB with DK 3.5 Tg 315℃ 10mil 20mil 30mil 60mil RF PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RF-35 is an organic-ceramic laminate material in the ORCER (Organic Ceramic) family of Taconic products. It is based on woven glass reinforcement. RF-35 is the result of Taconic's expertise in both ceramic filling technology and coated polytetrafluoride (PTFE) fiberglass.



RF-35 is the best choice for low cost, high volume commercial microwave and radio frequency applications.It has an excellent peel strength for 1/2 ounce and 1 ounce copper (even compared to standard epoxy glass), a key aspect of the need for rework.



RF-35's Tg exceeds 315 ℃. Its ultra low moisture absorption rate and low dissipation factor minimize phase shift with frequency. RF-35 used woven fabrics in the design result in the stable dimension. The laminates are usually orderly clad on one side or both sides with 1/2,1 and 2 ounces electrodeposited copper respectively.



So we benefit from its low cost, excellent peel strength, exceptionally low dissipation factor, low moisture absorption and enhanced surface smoothness.



Applications

Power Amplifiers

Filters and Couplers

Passive Components



Our PCB Capability (RF-35)

PCB Material: PTFE Ceramic Fiberglass
Designation: RF-35
Dielectric constant: 3.5
Dissipation Factor 0.0018
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm); 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersoin tin, OSP etc..





RF-35 Typical Value

Property Test Method Unit Value Unit Value
Dielectric Constant @ 1.9 GHz IPC-TM 650 2.5.5   3.5   3.5
Dissipation Factor @ 1.9 GHz IPC-TM 650 2.5.5   0.0018   0.0018
Moisture Absorption (.060") IPC-TM 650 2.6.2.1 % 0.02 % 0.02
Peel Strength (1/2 oz. copper) IPC-TM 650 2.4.8 lbs./linear inch >8.0 N/mm >1.5
Peel Strength (1 oz. copper) IPC-TM 650 2.4.8 lbs./linear inch >10.0 N/mm >1.8
Dielectric Breakdown IPC-TM 650 2.5.6 kV 41 kV 41
Volume Resistivity IPC-TM 650 2.5.17.1 Mohm/cm 1.26 x 109 Mohm/cm 1.26 x 109
Surface Resistivity IPC-TM 650 2.5.17.1 Mohm 1.46 x 108 Mohm 1.46 x 108
Arc Resistance IPC TM 650 2.5.1 seconds >180 seconds >180
Flexural Strength Lengthwise ASTM D 790 psi >22,000 N/mm2 >152
Flexural Strength Crosswise ASTM D 790 psi >18,000 N/mm2 >124
Thermal Conductivity ASTM F 433 W/m/K 0.24 W/m/K 0.24
Tensile Strength Lengthwise ASTM D 638 psi 27,000 N/mm2 187
Tensile Strength Crosswise ASTM D 638 psi 21,000 N/mm2 145
Dimensional Stability Lengthwise IPC-TM 650 2.4.39 in/in 0.00004 mm/mm 0.00004
Dimensional Stability Crosswise IPC-TM 650 2.4.39 in/in -0.0001 mm/mm -0.0001
x-y CTE ASTM D 3386 (TMA) ppm/°C 19-24 ppm/°C 19-24
z CTE ASTM D 3386 (TMA) ppm/°C 64 ppm/°C 64
Flammability UL-94   V-0   V-0
Hardness Rockwell M Scale   34   34





Type Dk
TLY-5A 2.17
TLY-5 2.20
TLY-3 2.33
TLT-0 TLX-0 2.45
TLT-9 TLX-9 2.50
TLT-8 TLX-8 2.55
TLT-7 TLX-7 2.60
TLT-6 TLX-6 2.65
TLE-95 2.95
TLC-27 2.75
TLC-30 3.00
TLC-32 3.20
RF-30 3.00
RF-35 RF-35P 3.50
RF-60 6.15
CER-10 10

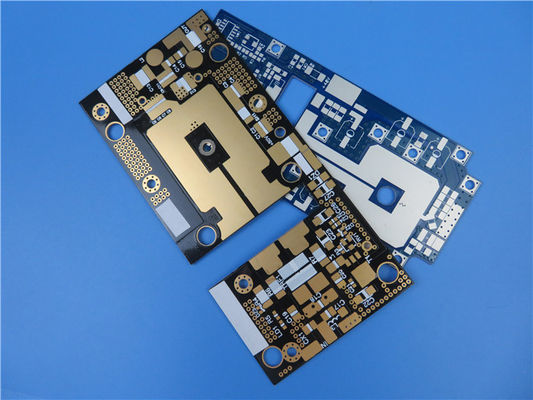

Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil 0





Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil 1



Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil 2



Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil 3





Hybrid PCB Organic Ceramic Laminate RF-35 Taconic PCB 30mil 60mil 4
