TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna

TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna
TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna

Large Image :  TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-175.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Ceramic Filled PTFE Layer Count: Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness: 8mil (0.20mm), 16mil (0.41mm), 24mil (0.61mm), 32mil (0.81mm), 40mil (1.02mm), 64mil (1.63mm), 120mil (3.05mm) PCB Size: ≤400mm X 500mm
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish: Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP Etc..
High Light:

Ceramic Filled PTFE Taconic PCB

,

GPS Antenna Taconic PCB

,

8mil Satellite Radio Taconic PCB



TRF-45 High Frequency PCB Taconic High Thermal Conductivity Circuit Board

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Hi Everyone,

Today, we’re going to talk about a type of printed circuit board on low loss ceramic-fill PTFE: TRF-45 high frequency PCB.



TRF-45 is a new generation of low-loss, thermally-stable PCB material with Dk (Dielectric Constant) 4.5 +/- 0.15, Df (Dissipation Factor) 0.0035, Thermal Conductivity 0.43 W/m-K. It is woven-glass reinforced for enhanced dimensional-stability and coupled with Taconic's expertise in ceramic technology.



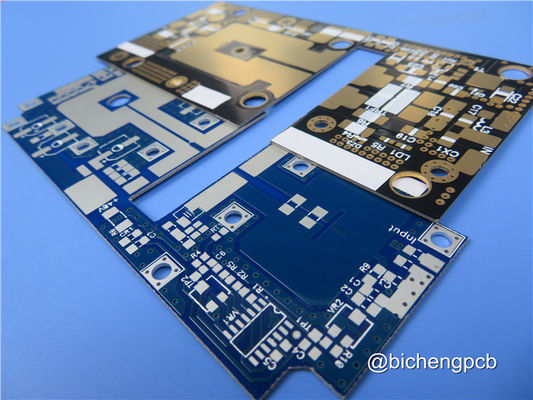

TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna 0



TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna 1



Typical Value of TRF-45

Property Test Method Unit Value
Material / / RF-45
Dielectric Constant @ 10GHz IPC-TM-650 2.5.5.5.1(m) / 4.5
Dissipation Factor @ 10GHz IPC-TM-650 2.5.5.5.1(m) / 0.0035
Moisture Absorption IPC-TM-650 2.6.2.1 % ≤0.06
Flexural Strength (Lengthwise) IPC-TM-650.2.4.4 lbs / in (N/mm2) 17000 (177)
Flexural Strength (Transverse) IPC-TM-650 2.4.4 lbs / in (N/mm2) 15000 (103)
Peel Strength IPC-TM-650 2.4.8 (Thermal Stress) lbs / in (N/mm) >8 (>1.4)
Thermal Conductivity ASTM F 433 W/m/K 0.43
Volume Resistivity IPC-TM-650 2.5.17.1 Mohm/cm 8.0 x 107
Surface Resistivity IPC-TM-650.2.5.17.1 Mohm 3.0 x 107
CTE (x) ASTM D 3386 (TMA) ppm/℃ 9
CTE (y) ASTM D 3386 (TMA) ppm/℃ 9
CTE (z) ASTM D 3386 (TMA) ppm/℃ 40



Typical Applications

Satellite radio

RFID

GPS antenna



Our PCB Capability (TRF-45)

PCB Material: Ceramic filled PTFE
Designation: TRF-45
Dielectric constant: 4.5
Dissipation Factor 0.0035 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 8mil (0.20mm), 16mil (0.41mm), 24mil (0.61mm), 32mil (0.81mm), 40mil (1.02mm), 64mil (1.63mm), 120mil (3.05mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



TRF-45 High Frequency Ceramic Filled PTFE Taconic PCB For GPS Antenna 2



About Us

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.



We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.



Our PCBs are used for a variety of purposes, including, but not limited to, computer networking, safety and surveillance, power supply, telecommunication, automotive electronics, medical apparatus and instruments, national defense and industrial equipment etc.



We can provide you with prototypes, small batches and mass production PCB’s. Any questions, please feel free to contact us.

Thanks for your reading.
