Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites
  • name

Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-061.V1.0
Base Material:
RT/duroid 6010LM
Layer Count:
1 Layer, 2 Layer
PCB Thickness:
10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin, OSP.
Highlight:

Microwave Rogers PCB Board

,

RT Duroid 6010LM Rogers PCB Board

,

RT Duroid 6010LM Microwave PCB Board

Product Description



Rogers High Frequency PCB Built on RT/Duroid 6010 With Immersion Gold for Ground Radar Warning Systems

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RT/duroid 6010LM microwave laminates are ceramic-PTFE composites which are designed for electronic and microwave circuit applications requiring a high dielectric constant. It's available with a dielectric constant value of 10.2.

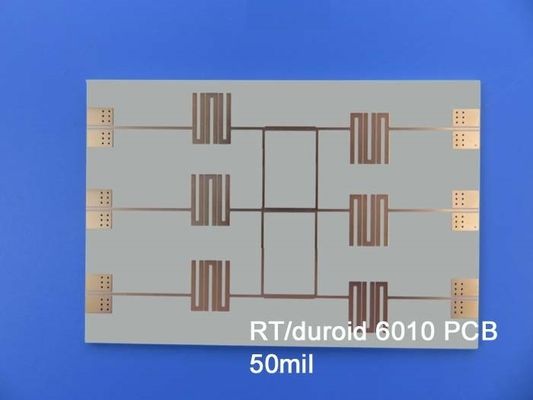

Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 0



RT/duroid 6010LM microwave laminates feature ease of fabrication and stability in use. This property results in the possibility of mass production and reducing the cost of goods. It has tight dielectric constant and thickness control, low moisture absorption, and good thermal mechanical stability.



Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 1



RT/duroid 6010 Typical Value
Property RT/duroid 6010 Direction Units Condition Test Method
Dielectric Constant,εProcess 10.2±0.25 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped stripline
Dielectric Constant,εDesign 10.7 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0023 Z   10 GHz/A IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -425 Z ppm/℃ -50℃-170℃ IPC-TM-650 2.5.5.5
Volume Resistivity 5 x 105   Mohm.cm A IPC 2.5.17.1
Surface Resistivity 5 x 106   Mohm A IPC 2.5.17.1
Tensile Properties ASTM D638 (0.1/min. strain rate)
Young's Modulus 931(135) 559(81) X Y MPa(kpsi) A
Ultimate Stress 17(2.4) 13(1.9) X Y MPa(kpsi) A
Ultimate Strain 9 to 15 7 to 14 X Y % A
Compressive Properties   ASTM D695 (0.05/min. strain rate)
Young's Modulus 2144 (311) Z MPa(kpsi) A
Ultimate Stress 47(6.9) Z MPa(kpsi) A
Ultimate Strain 25 Z %
Flexural Modulus 4364 (633) 3751 (544) X MPa(kpsi) A ASTM D790
Ultimate Stress 36 (5.2) 32 (4.4) X Y MPa(kpsi) A
Deformation under load 0.26 1.3 Z Z % 24hr/50℃/7MPa 24hr/150℃/7MPa ASTM D261
Moisture Absorption 0.01   % D48/50℃ 0.050"(1.27mm) thick IPC-TM-650 2.6.2.1
Thermal Conductivity 0.86   W/m/k 80℃ ASTM C518
Coefficient of Thermal Expansion 24
24
47		 X
Y
Z		 ppm/℃ 23℃/50% RH IPC-TM-650 2.4.41
Td 500   ℃ TGA   ASTM D3850
Density 3.1   g/cm3   ASTM D792
Specific Heat 1.00(0.239)   j/g/k
(BTU/ib/OF)		   Calculated
Copper Peel 12.3 (2.1)   pli (N/mm) after solder float IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes



Typical applications:

(1) Aircraft collision avoidance systems

(2) Ground radar warning systems

(3) Patch antennas

(4) Satellite communications systems etc



Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 2



Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board

Recommended Products
2-Layer PCB RF-30 On Rogers 40mil Laminates With Black Silkscreen Immersion Tin

2-Layer PCB RF-30 On Rogers 40mil Laminates With Black Silkscreen Immersion Tin

Contact Now
2 Layer PCB Built On TC600 Laminate 60mil Immersion Gold Finish

2 Layer PCB Built On TC600 Laminate 60mil Immersion Gold Finish

Contact Now
Double-Sided PCB On TC350 Material 60mil 2OZ With 1.6mm Thickness And ENIG Finish

Double-Sided PCB On TC350 Material 60mil 2OZ With 1.6mm Thickness And ENIG Finish

Contact Now
Double Sided PCB RT Duroid 6035HTC 60mil White Silkscreen Immersion Silver

Double Sided PCB RT Duroid 6035HTC 60mil White Silkscreen Immersion Silver

Contact Now
Double Sided PCB On RO4350B 6.6mil Material With Immersion Gold

Double Sided PCB On RO4350B 6.6mil Material With Immersion Gold

Contact Now
2 Layer PCB RO4003C Roergs 60mil Laminates Electroless Nickel Immersion Gold

2 Layer PCB RO4003C Roergs 60mil Laminates Electroless Nickel Immersion Gold

Contact Now
Double Sided PCB On 20mil RO3010 With Green Mask White Legend Immersion Silver

Double Sided PCB On 20mil RO3010 With Green Mask White Legend Immersion Silver

Contact Now
High Frequency PCB Built On 25mil RT Duroid 6010.2LM With Immersion Gold

High Frequency PCB Built On 25mil RT Duroid 6010.2LM With Immersion Gold

Contact Now
5mil RO3010 Rigid Mini PCB 2L Bare Copper Printed Circuit Board

5mil RO3010 Rigid Mini PCB 2L Bare Copper Printed Circuit Board

Contact Now
0.8mm TLX-9 PCB With Hot Air Soldering Level For Passive Components

0.8mm TLX-9 PCB With Hot Air Soldering Level For Passive Components

Contact Now
0.3mm RT Duroid 5880 PCB Immersion Gold IPC Class 2 Standard

0.3mm RT Duroid 5880 PCB Immersion Gold IPC Class 2 Standard

Contact Now
products
PRODUCTS DETAILS
Products

RF PCB Board

Rogers PCB Board

PTFE PCB Board

High TG PCB

Multi Layer PCB

Taconic PCB

HDI PCB Board

High Speed PCB

Impedance Controlled PCB

Flexible PCB Board

FR4 PCB Board

PCB Stencil

Metal Core PCB
Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites
  • name
Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites
MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-061.V1.0
Base Material:
RT/duroid 6010LM
Layer Count:
1 Layer, 2 Layer
PCB Thickness:
10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Tin, OSP.
Minimum Order Quantity:
1PCS
Price:
USD9.99-99.99
Packaging Details:
Vacuum bags+Cartons
Delivery Time:
8-9 working days
Payment Terms:
T/T
Supply Ability:
5000PCS per month
Highlight

Microwave Rogers PCB Board

,

RT Duroid 6010LM Rogers PCB Board

,

RT Duroid 6010LM Microwave PCB Board

Product Description



Rogers High Frequency PCB Built on RT/Duroid 6010 With Immersion Gold for Ground Radar Warning Systems

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RT/duroid 6010LM microwave laminates are ceramic-PTFE composites which are designed for electronic and microwave circuit applications requiring a high dielectric constant. It's available with a dielectric constant value of 10.2.



Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 0



RT/duroid 6010LM microwave laminates feature ease of fabrication and stability in use. This property results in the possibility of mass production and reducing the cost of goods. It has tight dielectric constant and thickness control, low moisture absorption, and good thermal mechanical stability.



Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 1



RT/duroid 6010 Typical Value
Property RT/duroid 6010 Direction Units Condition Test Method
Dielectric Constant,εProcess 10.2±0.25 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped stripline
Dielectric Constant,εDesign 10.7 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0023 Z   10 GHz/A IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -425 Z ppm/℃ -50℃-170℃ IPC-TM-650 2.5.5.5
Volume Resistivity 5 x 105   Mohm.cm A IPC 2.5.17.1
Surface Resistivity 5 x 106   Mohm A IPC 2.5.17.1
Tensile Properties ASTM D638 (0.1/min. strain rate)
Young's Modulus 931(135) 559(81) X Y MPa(kpsi) A
Ultimate Stress 17(2.4) 13(1.9) X Y MPa(kpsi) A
Ultimate Strain 9 to 15 7 to 14 X Y % A
Compressive Properties   ASTM D695 (0.05/min. strain rate)
Young's Modulus 2144 (311) Z MPa(kpsi) A
Ultimate Stress 47(6.9) Z MPa(kpsi) A
Ultimate Strain 25 Z %
Flexural Modulus 4364 (633) 3751 (544) X MPa(kpsi) A ASTM D790
Ultimate Stress 36 (5.2) 32 (4.4) X Y MPa(kpsi) A
Deformation under load 0.26 1.3 Z Z % 24hr/50℃/7MPa 24hr/150℃/7MPa ASTM D261
Moisture Absorption 0.01   % D48/50℃ 0.050"(1.27mm) thick IPC-TM-650 2.6.2.1
Thermal Conductivity 0.86   W/m/k 80℃ ASTM C518
Coefficient of Thermal Expansion 24
24
47		 X
Y
Z		 ppm/℃ 23℃/50% RH IPC-TM-650 2.4.41
Td 500   ℃ TGA   ASTM D3850
Density 3.1   g/cm3   ASTM D792
Specific Heat 1.00(0.239)   j/g/k
(BTU/ib/OF)		   Calculated
Copper Peel 12.3 (2.1)   pli (N/mm) after solder float IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes



Typical applications:

(1) Aircraft collision avoidance systems

(2) Ground radar warning systems

(3) Patch antennas

(4) Satellite communications systems etc



Microwave Rogers RT / Duroid 6010LM Rogers PCB Board ceramic PTFE composites 2



Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board
