Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-252.V1.0
Base Material:
Polyimide
Layer Count:
2 Layers
PCB Thickness:
0.15mm
PCB Size:
21.15 X 58.93mm = 1PCS
Coverlay:
Yellow
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

Dual Layer Flexible PCB

,

Immersion Gold Flexible PCB

,

PI Stiffener Flexible PCB

Product Description

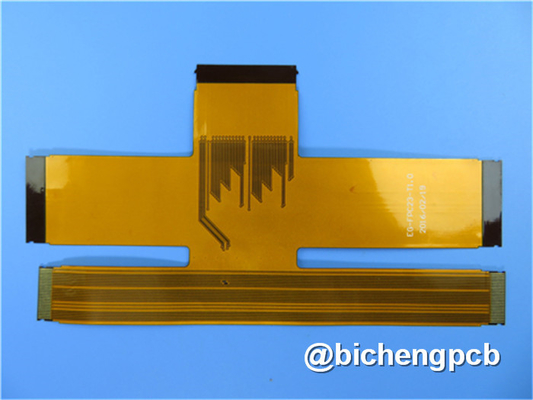

Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener

(FPC’s are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of flexible printed circuit (FPC) for the application of Wi Fi Antenna. It’s a 2 layer flex board at 0.15mm thick. It contains yellow coverlay (solder mask) and without silkscreen on entire board, and immersion gold is applied on pads. Polyimide as stiffener is applied on the connector part. The base laminate is from Shengyi and they're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 200 pieces are packed for shipment.



Parameter and data sheet

Number of Layers 2
Outline Dimension 21.15 x 58.93mm = 1PCS
Board Type Flexible Circuit
Board Thickness 0.15mm +/-10%
Board Material Polyimide (PI) 50 um
Board Material Supplier ITEQ
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 um
Inner Iayer Cu thicknes N/A
Surface Cu thickness 35 um (1oz)

Coverlay Colour Yellow
Number of Coverlay 2
Thickness of Coverlay 25 um
Stiffener 200 um

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 1

Mininum Trace (mil) 4 mil
Minimum Gap(mil) 4 mil

Surface Finish Immersion Gold
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2



Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener 0



Features and benefits

Excellent flexibility;

Reducing the volume;

Weight reduction;

8000 types of PCB per month;

Quick CADCAM checking and free PCB quotation;

No minimum order quantity. 1 piece is available;

Volume Production capability;

On-time service;

More than 18 years of experience;



Applications

Keypad FPC; Toy lamp strip; Display backlight; Flex keyboard for mobile phone keys; POS antenna soft board; LCD TV soft board; Digital camera soft board.

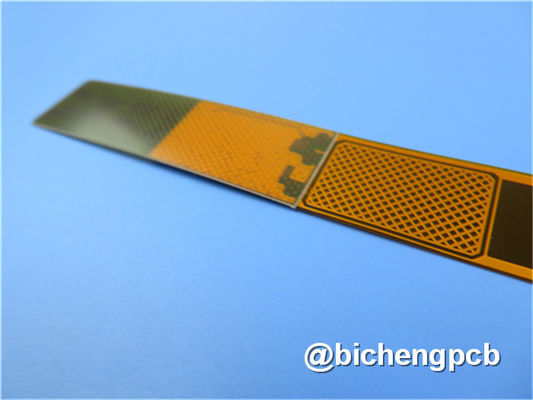

Double-Sided Flexible Circuits

As the name suggests, the circuit consists of a thin and flexible base material with copper foil laminated to each side. The outer sides of the finished circuits are frequently provided with coverlays bonded to the outer sides (copper). Plated-through holes in double-sided flexible circuits are usually drilled, instead of punched. Usually the flexible circuits are provided with a coverlays on both sides



Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener 1



Manufacturing Process of Double Sided FPC

Although manufacture of double-sided PTH flexible PCB resembles that of single-sided non-plated-through boards, some of the manufacturing processes are not identical and appear in another sequence. Below it shows the processes of how to manufacture a double sided flexible circuits.



Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener 2

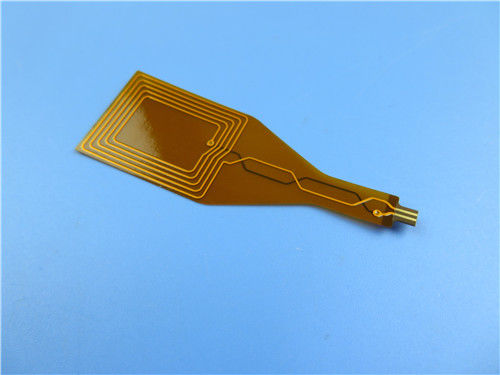

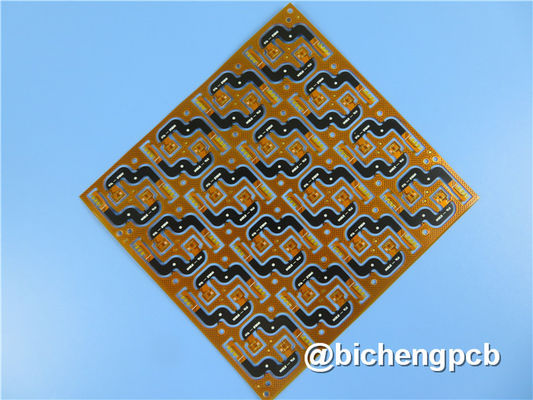

More Displays of Double Sided FPC



Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener 3



Dual Layer Flexible PCB Built on Polyimide With Immersion Gold and PI Stiffener 4
