Hello everyone.

Today, we're talking about rigid-flex PCB.

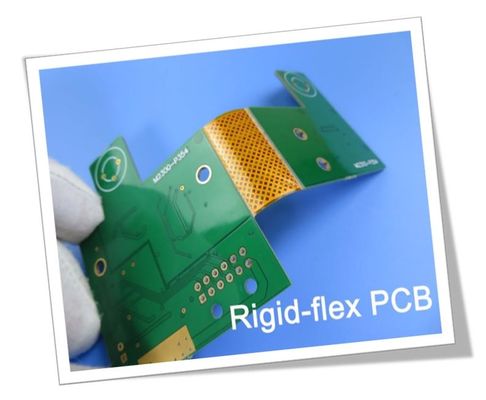

A rigid-flex PCB is a combination of rigid boards and flexible circuits, the latter creating flexible inter-connects between the rigid boards to which they are laminated by means of bond plies. Such as the following diagram is rigid-flex drawing.



2.0mm Rigid Flex PCB 6 Layer PCB With Green Solder Mask 0





Both ends are rigid board, flexible circuit is in the middle.



The flexible circuit is manufactured separately and bonded to the rigid boards, either symmetrically, i.e., in the middle of the rigid boards, or asymmetrically, i.e., to the outer side of the rigid boards to be interconnected.



2.0mm Rigid Flex PCB 6 Layer PCB With Green Solder Mask 1



Plated-through holes are provided in the rigid sections of the rigid-flex PCB to establish electrical connection between the flexible circuit and the electronic circuits of the rigid boards. The processes are similar to those used when manufacturing rigid multilayer boards.



2.0mm Rigid Flex PCB 6 Layer PCB With Green Solder Mask 2

Next coming up, let’s take a look at two PCB samples.

2.0mm Rigid Flex PCB 6 Layer PCB With Green Solder Mask 3





The first one is a 4-layer flex-rigid board. The flexible circuit is in the middle, and the two sides are rigid plate and symmetrical structure. The solder mask is green and the surface is treated with gold.



2.0mm Rigid Flex PCB 6 Layer PCB With Green Solder Mask 4



The second sample is a 6-layer flex-rigid board. The first layer and the second layer are the flexible board, located at the top of the flex-rigid board. The flexible board and the rigid board are connected by 1080 prepeg, and the third layer to the sixth layer is the rigid board. What we used is FR-4 from ITEQ Company: IT-180A. The inner layer is 0.5OZ, the outer layer is 1OZ, the whole finished plate thickness is 1.5mm, and the surface finish is immersion gold.





PCB Capability ( Rigid-flex PCB )
PCB Material: Polyimide and epoxy fibre glass
Designation: PI+FR4
Layer count: 4 Layer, multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm
1.8mm, 2.0mm
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: ENIG, Immersion tin, OSP,etc..





The main raw materials are polyimide and FR-4, copper thickness ranges 0.5oz to 2oz, PCB thickness is up to 2.0mm and maximum size within 400X 500mm.



Flex-rigid PCB contains both flexible area and rigid area, which is of great help to save the internal space of the product, to reduce the volume of the finished product and improve the performance of the product.





Appendix: Our FPC Capability 2021

No. Specifications Capabilities
1 Board Type Single layer, Doulbe layer, Multilayer, Rigid-Flex
2 Base Material PI, PET
3 Copper Weight 0.5oz, 1oz, 2oz
4 LED Maximum Size 250 x 5000mm
5 General Maximum Size 250 x 2000mm
6 Board Thickness 0.03mm-3.0mm
7 Thickness Tolerance ±0.03mm
8 Mininum Drill Hole 0.05mm
9 Maximum Drill Hole 6.5mm
10 Tolerance of Drill Hole ±0.025mm
11 Thickness of Hole Wall ≧ 8 um
12 Minimum Track/Gap of Single Layer Board 0.025/0.03mm
13 Minimum Track/Gap of Double Layer and Multilayer Board 0.03/0.040mm
14 Etching Tolerance ±0.02mm
15 Minimum Width of Silk Legend ≧ 0.125mm
16 Minimum Heigh of Silk Legend ≧0.75mm
17 Distance from Legend to Pad ≧0.15mm
18 Distance from Opening Solder Mask of Drill Coverlay to Track ≧0.03mm
19 Distance from Opening Solder Mask of Punching Coverlay to Track ≧0.03mm
20 Thickness of Immersion Nickel 100-300u"
21 Thickness of Immersion Gold 1-3u"
22 Thicnkess of Immersion Tin 150-400u"
23 Minimum Electrical Testing Pad 0.2mm
24 Minimum Tolerance of Outline(Normal Steel Mould Punch) ±0.1mm
25 Minimum Tolerance of Outline (Precision Steel Mould Punch) ±0.05mm
26 Mininum Radius of Bevel Angle (Outline) 0.2mm
27 Stiffner Material PI, FR-4, 3M Adhesive, PET, Steel Sheet
28 RoHs Yes
29 Solder Mask Colour Yellow, White, Black, Green
