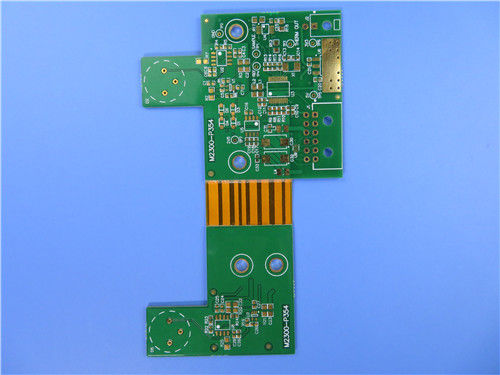

4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems

4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems
4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems

Large Image :  4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-269.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: FR-4 1.6mm / Polyimide 25µm Layer Count: 4 Layers
PCB Thickness: 1.6mm PCB Size: 60.22 X 132.27mm
Coverlay: Yellow Coverlayer / Green Solder Mask Silkscreen: White
Copper Weight: 1oz Surface Finish: Immersion Gold
High Light:

Sound Systems Rigid Flexible PCB

,

1.6mm Rigid Flexible PCB

,

4 Layer 1.6 Mm PCB



4 Layer Flex-rigid PCB Built On 1.6mm FR4 and 0.2mm Polyimide With Immersion Gold and Green Solder Mask For Instrument

(FPC’s are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of rigid flex PCB for the application of Portable Sound Systems. It’s a 4 layer PCB with flexible part in the middle. The base laminate is from Shengyi, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.



Parameter and data sheet

Size of Flexible PCB 60.22 X 132.27mm
Number of Layers 4
Board Type Rigid-flex PCB
Board Thickness 1.6mm
Board Material FR-4 1.6mm / Polyimide 25µm
Board Material Supplier Shengyi
Tg Value of Board Material 60℃

PTH Cu thickness ≥20 µm
Inner Iayer Cu thicknes 35 µm
Surface Cu thickness 35 µm

Coverlay Colour Yellow Coverlayer / Green solder mask
Number of Coverlay 2
Thickness of Coverlay 25 µm
Stiffener Material no
Stiffener Thickness N/A

Type of Silkscreen Ink IJR-4000 MW300
Supplier of Silkscreen TAIYO
Color of Silkscreen White
Number of Silkscreen 2

Peeling test of Coverlay No peelable
Legend Adhesion 3M 90℃ No peeling after Min. 3 times test

Surface Finish Immersion Gold
Thickness of Nickle/Gold Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required Yes
Famability 94-V0

Thermal Shock Test Pass, -25℃±125℃, 1000 cycles.
Thermal Stress Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Function 100% Pass electrical test
Workmanship Compliance with IPC-A-600H & IPC-6013C Class 2



4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 0

4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 1



Features and benefits

Excellent flexibility

Reducing the volume

Weight reduction

Consistency of assembly

The end can be whole soldered

Low cost

Continuity of processing

Professional and experienced engineers

Engineering design prevents problems from occurring in pre-production.



Applications

Instrument panel, Mobile phone camera flex board, Tablet antenna soft board



Brief Introduction of FPC

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.



FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.



Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.



The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.


4 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 24 Layer 1.6mm Rigid Flexible PCB For Portable Sound Systems 3
