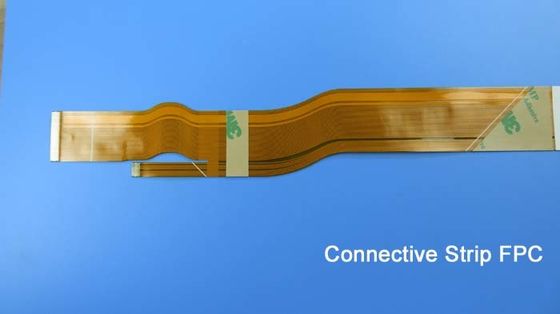

Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router

Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router
Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router

Large Image :  Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-331.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide Layer Count: Single Side
PCB Thickness: 0.15mm ±0.05 PCB Size: 287 X 36mm=1PCS
Coverlay: Yellow Silkscreen: White
Copper Weight: 1oz Surface Finish: Immersion Gold



Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



Specifications

PCB SIZE 287 x 36mm=1PCS
Base Material: Polyimide
Number of Layers Single sided PCB
SMT N/A
Through Hole Components no
LAYER STACKUP Copper ------- 35um(1oz)
Adhesive
Polyimide
TECHNOLOGY
Minimum Trace and Space: 4mil / 4mil
Minimum / Maximum Holes: 1.0mm/ 2.5mm
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 0.15mm ±0.05
Surface Finish Immersion gold
Solder Mask Apply To: TOP
Solder Mask Color: Yellow Coverlay
CONTOUR/CUTTING Punching
Stiffener: White PET
Side of Component Legend TOP, Bottom
Colour of Component Legend White
VIA None Plated Through Hole(NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router 0Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router 1



Bicheng Flexible Printed Circuit Capability 2019
No. Specifications Capabilities
1 Board Type Single layer, Doulbe layer, Multilayer, Rigid-Flex
2 Base Material PI, PET
3 Copper Weight 0.5oz, 1oz, 2oz
4 LED Maximum Size 250 x 5000mm
5 General Maximum Size 250 x 2000mm
6 Board Thickness 0.03mm-3.0mm
7 Thickness Tolerance ±0.03mm
8 Mininum Drill Hole 0.05mm
9 Maximum Drill Hole 6.5mm
10 Tolerance of Drill Hole ±0.025mm
11 Thickness of Hole Wall ≧ 8 um
12 Minimum Track/Gap of Single Layer Board 0.025/0.03mm
13 Minimum Track/Gap of Double Layer and Multilayer Board 0.03/0.040mm
14 Etching Tolerance ±0.02mm
15 Minimum Width of Silk Legend ≧ 0.125mm
16 Minimum Heigh of Silk Legend ≧0.75mm
17 Distance from Legend to Pad ≧0.15mm
18 Distance from Opening Solder Mask of Drill Coverlay to Track ≧0.03mm
19 Distance from Opening Solder Mask of Punching Coverlay to Track ≧0.03mm
20 Thickness of Immersion Nickel 100-300u"
21 Thickness of Immersion Gold 1-3u"
22 Thicnkess of Immersion Tin 150-400u"
23 Minimum Electrical Testing Pad 0.2mm
24 Minimum Tolerance of Outline(Normal Steel Mould Punch) ±0.1mm
25 Minimum Tolerance of Outline (Precision Steel Mould Punch) ±0.05mm
26 Mininum Radius of Bevel Angle (Outline) 0.2mm
27 Stiffner Material PI, FR-4, 3M Adhesive, PET, Steel Sheet
28 RoHs Yes
29 Solder Mask Colour Yellow, White, Black, Green



Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router 2Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router 3

Flexible Printed Circuit (FPC) | Flex Circuits Strip Immersion Gold | Polyimide Flex PCB for Wireless Broadband Router 4
