2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System

2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System
2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System 2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System 2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System 2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System 2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System

Large Image :  2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-311.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide 12.5μm + 0.2mm Polyimide Stiffener Layer Count: 2 Layers
PCB Thickness: 0.15 Mm PCB Size: 129mm X 77.3mm = 1 Type = 1 Piece
Solder Mask: Yellow Coverlay Silkscreen: NO
Copper Weight: Outer Layer 35 μm/ Inner Layer 0 μm Surface Finish: Immersion Gold

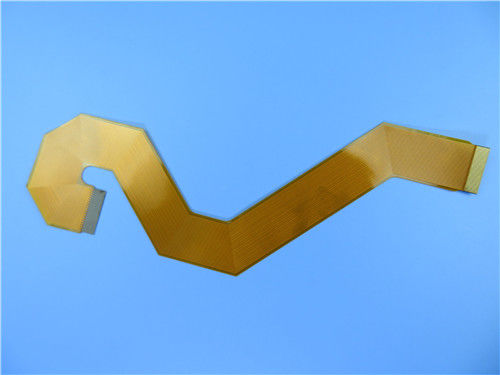

2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of 2 Layer flexible printed circuit (FPC) built on polyimide for the application of Door Access System.



Basic specifications

Base material: Polyimide 12.5μm + 0.2mm polyimide stiffener

Layer count: 2 layers

Type: Individual FPC

Format: 129mm x 77.3mm = 1 type = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35 μm/ Inner layer 0 μm

Solder mask / Legend: Yellow coverlay / No.

Final PCB height: 0.15 mm

Standard: IPC 6012 Class 2

Packing: 100 pieces are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months





2 Layer Flexible Printed Circuit (FPC) Built on Polyimide With Stiffener for Door Access System 0



Features and benefits

Consistency of assembly;

Reliability increased;

Controllability of electrical parameter design;

Small quantity order is accepted;

12 hours quotation;

16000 square meter workshop;

30000 square meter month capability;

8000 types of PCB's per month;



Applications

LCD module, POS antenna soft board, medical equipment controller, automobile GPS navigation flex board, Touch screen, LCD TV soft board, Digital camera soft board



General Properties of 2 Layer FCCL

Test Item Treatment Condition Unit Property Date
IPC Standard * value Typical Value
SF202 0512DT SF202 1012DT
Peel Strength (90º) A N/mm ≥0.525 1.2 1.4
288℃, 5s ≥0.525 1.2 1.4
Folding Endurance (MIT) R0.8 X 4.9N Times - >80 >50
Thermal Stress 288℃, 20s - - No delamination No delamination
Dimensional Stability MD E-0.5/150 % ±0.2 ±0.05 ±0.05
TD ±0.05 ±0.05
Chemical Resistance After Chemical Exposure % ≥80 >85 >85
Dielectric Constant (1MHz) C-24/23/50 - ≤4.0 3.2 3.3
Dissipation Factor (1MHz) C-24/23/50 - ≤0.01 0.007 0.008
Volume Resistvitiy C-96/35/90 MΩ-cm ≥10^6 4.5 x 10^8 3.5 x 10^8
Surface Resistance C-96/35/90 ≥10^5 1.5 x 10^6 2.0 x 10^6



Clarifications of FPC

According to the combination of base material and copper foil, flexible circuit board can be divided into two types: flexible board with adhesive and flexible board without adhesive. The price of non-adhesive flexible PCB is much higher than that of adhesive flexible PCB, but its flexibility, bonding force between copper foil and substrate and flatness of solder are also better than that of adhesive flexible PCB. So it is only used in the high demand situations, such as the: COF (CHIP ON FLEX, flexible board with bare chip, the high flatness of the pad) and so on. Because its price is high, most of the flexible PCBs used in the market are still adhesive flexible circuit board. Because the flexible circuit board is mainly used in the situation where bending is required, if the design or process is not reasonable, it is easy to produce micro-cracks, welding and other defects.



Economy of using FPC

If the circuit design is relatively simple, the total volume is small, and the space is suitable, the traditional internal connection is much cheaper. Flexible circuits are a good design option if the circuit is complex, processes many signals or has special electrical or mechanical requirements. When the size and performance of applications exceed the capacity of rigid circuits, flexible assembly is the most economical. A 12mil pad with a 5mil through hole and a flexible circuit with 3mil lines and spacing can be fabricated on a thin film. Therefore, it is more reliable to mount the chip directly on the film. There is no flame retardant that could be an ion source. These films may be protective and solidified at higher temperatures to obtain higher glass transition temperatures. Flexible materials are less costly than rigid materials because they are free of connectors.
