RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board

RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board
RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board

Large Image :  RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-172.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
PCB Thickness: 0.8 Mm ±0.1 PCB Size: 120 X 60mm=1up
Solder Mask: Black Silkscreen: White
Copper Weight: 35um(1 Oz)+plate TOP Layer, 35um(1 Oz) + Plate BOT Layer Surface Finish: Immersion Gold
High Light:

30mil Double Sided Taconic PCB

,

120mm Long Taconic PCB

,

Taconic Printed Circuit Board



RF-35 RF High Tg PCB 30mil Double Sided High Frequency Printed Circuit Board Coating Immersion Gold and Black Solder Mask

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Brief Introduction

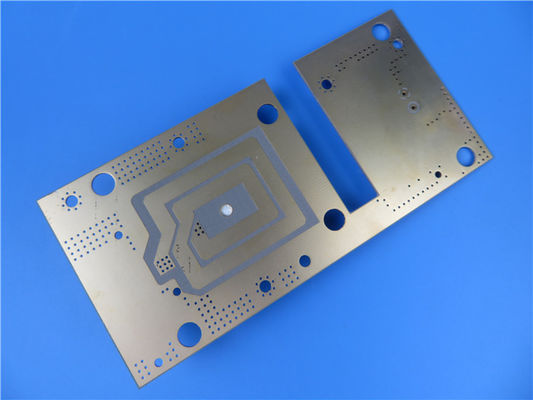

This is a type of ORCER (Organic Ceramic) RF-35 high frequency PCB. It’s built on 30mil core with 2oz copper on both top and bottom layer(double sided board). It’s 120mm long by 60mm wide with immersion gold on pads. Bottom layer is open to air with gold surface as we’ve seen.



Taconic RF PCB

Besides RF-35, there’re other types of Taconic “RF” PCB available in our house. Such as RF-10(10mil,20mil, 25mil, 60mil and 125mil), RF-30A(10mil, 20mil, 30mil,40mil and 60mil), RF-35TC(10mil, 20mil, 30mil), RF-60TC(10mil, 20mil, 30mil, 60mil and 125mil), RF-35A2 (5mil, 10mil, 20mil, 30mil and 60mil) etc. DK ranges 2.97 to 10.2 etc.



RF-35 30mil Double Sided Taconic PCB Immersion Gold Printed Circuit Board 0



Other PCB Available Material

FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B (DK2.2, DK2.65, DK2.85, DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2)

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-35TC, TLF-35, RF-60A, RF-60TC, RF-35A2 etc.

AD450, AD600, TC350 etc.

Nelco N4000, N9350, N9240

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB



CAPABILITY

2500-3000 types each month.



SERVICE AREA

North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.



Applications:

Power Amplifiers

Filters and Couplers

Passive Components



PCB Specifications

PCB SIZE 120 x 60mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RF-35 0.762mm
copper ------- 35um(1 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 7.0 mil / 7.0 mil
Minimum / Maximum Holes: 0.5 mm / 0.5 mm
Number of Different Holes: 1
Number of Drill Holes: 8
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RF-35 0.762mm
Final foil external: 2.0 oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion gold, 75%
Solder Mask Apply To: Top Layer
Solder Mask Color: Black
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.5mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
