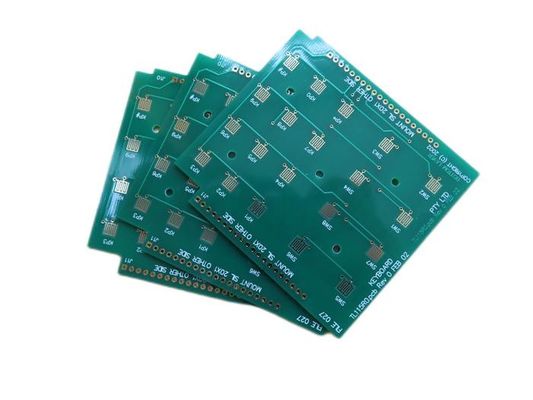

Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-455.V1.0

Base Material:

Layer Count:

2 Layers

PCB Thickness:

1.6+/-10% MM

PCB Size:

65 X 71mm=1UP

Solder Mask:

Green

Silkscreen:

White

Copper Weight:

Surface Finish:

Electrolytic Gold

Highlight:

Double Sided FR4 PCB Board

Hard Gold FR4 PCB Board

Double Sided Hard Gold PCB

Product Description

Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)

1.1 General description

This is a type of double sided circuit board built on FR-4 substrate with Tg 170°C for the application of keypad. It's 1.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and hard gold on pads. The base material is from Shengyi supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed for shipment.

1.2 Features and benefits

1. Industrial standard material with high Tg (170℃ by DSC) and excellent thermal reliability;

2. Lead free assemblies with a maximum reflow temperature of 260℃;

3. SMT process is resistant to reflow soldering, resistant to rework;

4. Quick and on-time delivery;

5. ISO9001, ISO14001, UL certified manufacturing factory;

6. Competitive price;

7. No quality complaint is meant to save money;

8. Quick CADCAM checking and free PCB quotation.

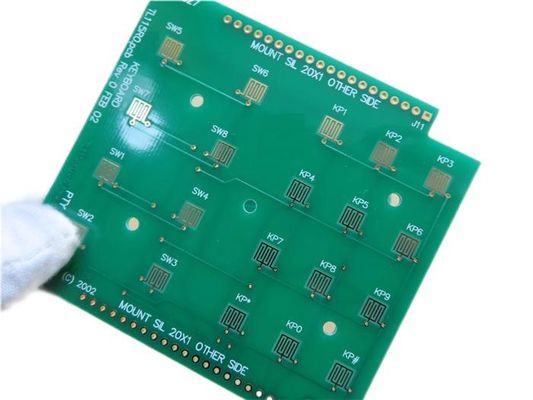

Keypad PCB Hard Gold Circuit Board Built On Tg170 FR-4 With Green Solder Mask 0

1.3 PCB Specifications

Item	Description	Requirement	Actual
Item	Description	Requirement	Actual
Basic information	Board type	Double sided PCB	Double sided PCB
	Layer count	2 layers	2 layers
	Board size	65 x 71mm=1UP	65 x 71mm=1UP
Laminate	Laminate Type	FR4 TG≧170: CTI:175V-249V	FR4 TG≧170: CTI:175V-249V
	Supplier	/	/
	Tg	TG ≧170℃	TG ≧170℃
	Finished thickness	1.6+/-10% mm	1.57 mm
Plating Thickness	PTH Cu thickness	>20 um	22.13um
	Inner layer Cu Thickness	1/1 OZ	1/1 OZ
	Surface Cu thickness	35 um	45.1 um
Solder Mask	Material type	LP-4G G-05	LP-4G G-05
	Supplier	Nan Ya	Nan Ya
	Color	Green	Green
	Single / both sides	Both Sides	Both Sides
	S/M thickness	>=10.0 um	26.93 um
	3M tape test	NO Peel Off	no peel off
Legend	Material type	S-380W	S-380w
	Supplier	Tai yo	Tai yo
	Color	White	White
	Location	Both Sides	Both Sides
	3M tape test	No peel off	no peel off
Circuit	Trace Width (mm)	0.203+/-20%mm	0.195mm
Circuit	Spacing (mm)	0.203+/- 20%mm	0.199 mm
Electroplated Gold	Nickel	100u"	112u"
Electroplated Gold	Gold	10u"	11.11u"
Reliabilty Tests	Thermal shock test	288±5℃, 10sec ,3 cycles	NO Discolor , NO Delamination
Reliabilty Tests	solder abllity test	245±5℃	100% wetting
Function	Electrioal Test	100%	pass
Standard	IPC-A 600H class 2, IPC_6012C CLASS 2	100%	Pass
Appearance	Visual inspection	100%	Pass
Appearance	warp and twist	<= 0.75%	0.26%
V-Groove	V-Cut thickness	0.4±0.1 mm	0.41mm
V-Groove	Angle	30+/- 5	30º
Drill table (mm)	T1	PTH	0.508+/-0.075mm
	T2	PTH	0.710+/-0.075mm
	T3	NPTH	5.000+/-0.05mm

1.4 Applications

DC To DC Converter

USB Wlan Adapter

Rf Transceiver

Controlled Access

Fiber optic receptors

1.5 Our PCB Capability (2022)

Parameter	Value
Layer Counts	1-32
Substrate Material	RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; TMM4, TMM10, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD450, AD600, AD1000, TC350; Nelco N4000, N9350, N9240; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
Maximum Size	Flying test: 900600mm, Fixture test 460380mm, No test 1100*600mm
Board Outline Tolerance	±0.0059" (0.15mm)
PCB Thickness	0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)	±8%
Thickness Tolerance(t＜0.8mm)	±10%
Insulation Layer Thickness	0.00295" - 0.1969" (0.075mm--5.00mm)
Minimum Track	0.003" (0.075mm)
Minimum Space	0.003" (0.075mm)
Outer Copper Thickness	35µm--420µm (1oz-12oz)
Inner Copper Thickness	17µm--350µm (0.5oz - 10oz)
Drill Hole(Mechanical)	0.0059" - 0.25" (0.15mm--6.35mm)
Finished Hole(Mechanical)	0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical)	0.00295" (0.075mm)
Registration (Mechanical)	0.00197" (0.05mm)
Aspect Ratio	12:1
Solder Mask Type	LPI
Min Soldermask Bridge	0.00315" (0.08mm)
Min Soldermask Clearance	0.00197" (0.05mm)
Plug via Diameter	0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance	±10%
Surface Finish	HASL,HASL LF,ENIG,Imm Tin,Imm Ag, OSP, Gold Finger
