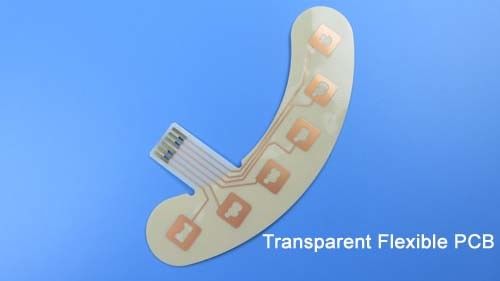

Flexible Printed Circuit Built On Transparent PET FPC With 3M Adhesive for Thin-film Switch

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

Flexible Printed Circuit Built On Transparent PET FPC With 3M Adhesive for Thin-film Switch

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-325.V1.0

Base Material:

Layer Count:

Single Side

PCB Thickness:

0.15mm ±0.05

PCB Size:

132 X 65mm=1PCS

Coverlay:

Transparent

Silkscreen:

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

Thin-film Switch FPC

3M Adhesive FPC

Product Description

Flexible Printed Circuit Built On Transparent PET FPC With 3M Adhesive for Thin-film Switch

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)

Specifications

PCB SIZE	132 x 65mm=1PCS
Base Material:	PET
Number of Layers	Single sided PCB
SMT	YES
Through Hole Components	no
LAYER STACKUP	Copper ------- 35um(1oz)
	Adhesive
	PET
Minimum Trace and Space:	5mil/10mil
Minimum / Maximum Holes:	N/A
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	0.15mm ±0.05
Surface Finish	Immersion Gold ENIG
Solder Mask Apply To:	TOP
Solder Mask Color:	Transparent Coverlay
CONTOUR/CUTTING	Punching
Side of Component Legend	NO
Colour of Component Legend	NO
VIA	None Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
