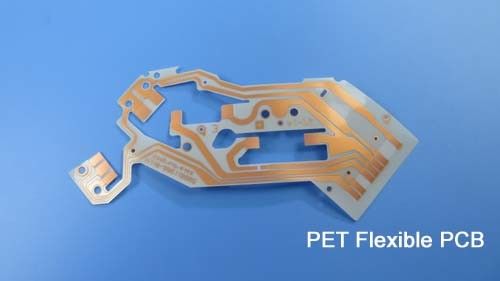

Flexible Printed Circuit FPC Built on Transparent PET for Capacitive Touch Screen

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

Flexible Printed Circuit FPC Built on Transparent PET for Capacitive Touch Screen

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-322.V1.0

Base Material:

PCB Thckness:

0.15mm ±0.05

PCB Size:

130 X 56mm=1PCS

Solder Mask:

Transparent Coverlay

Silkscreen:

Highlight:

Built on Transparent PET FPC

Transparent PET FPC

Capacitive Touch Screen FPC

Product Description

Flexible Printed Circuit FPC Built on Transparent PET for Capacitive Touch Screen

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)

Specifications

PCB SIZE	130 x 56mm=1PCS
Base Material:	PET
Number of Layers	Single sided PCB
SMT	YES
Through Hole Components	no
LAYER STACKUP	Copper ------- 35um(1oz)
	Adhesive
	PET
TECHNOLOGY
Minimum Trace and Space:	10mil/10mil
Minimum / Maximum Holes:	1.0mm/ 2.5mm
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	0.15mm ±0.05
Surface Finish	OSP
Solder Mask Apply To:	TOP
Solder Mask Color:	Transparent Coverlay
CONTOUR/CUTTING	Punching
Side of Component Legend	NO
Colour of Component Legend	NO
VIA	None Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
