Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay

Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay
Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay

Large Image :  Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-320.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide 12.5μm + 1.0mm Stiffener Of FR-4 Layer Count: 2 Layers
PCB Thickness: 1.1 Mm (inclusive Of Stiffener) PCB Size: 60.0mm X 43.0mm = 1 Type = 1 Piece
Solder Mask: Yellow Coverlay Silkscreen: White
Copper Weight: Outer Layer 35μm/ Inner Layer 0 μm Surface Finish: HASL Lead Free On FR-4 Support Area

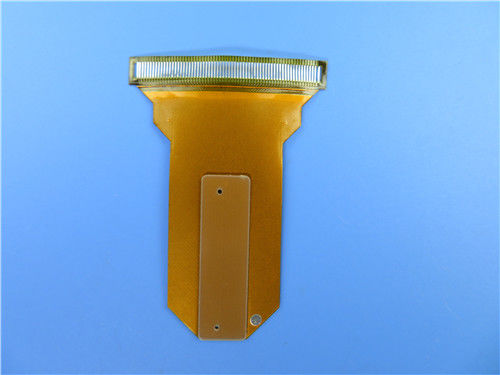

Flexible Printed Circuit (FPC) Built on 1oz Polyimide with FR-4 Stiffener for Central Fire Alarm Systems

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of 2 Layer flexible printed circuit (FPC) built on 1oz polyimide for the application of Central fire alarm systems.



Basic specifications

Base material: Polyimide 12.5μm + 1.0mm stiffener of FR-4

Layer count: 2 layers

Type: Individual FPC

Format: 60.0mm x 43.0mm = 1 type = 1 piece

Surface finish: HASL Lead free on FR-4 support area

Copper weight: Outer layer 35μm/ Inner layer 0 μm

Solder mask / Legend: yellow coverlay / White

Final PCB height: 1.1 mm (inclusive of stiffener)

Standard: IPC 6012 Class 2

Packing: 100 pieces are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months



Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay 0

Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay 1



Features and benefits

Controllability of electrical parameter design;

The end can be whole soldered;

Low cost;

SMT process is resistant to reflow soldering, resistant to rework;

16000 square meter workshop;

30000 square meter month capability;

8000 types of PCB's per month;

Delivery on time: >98%

Customer complaint rate: <1%



Applications

Telephone receiver / earphone FPC, Mobile phone camera flex board, consumer card reader soft board, Tablet computer battery soft board, projector soft board medical equipment controller



Specifications of Standard 2 Layer FCCL

Specifications Thickness (µm) Copper Type Applications
Polyimide Film Copper Foil
SF202 0506DR 12.5 6 RA Fine-line
SF20200509DR 12 9 RA
SF202 0509DT 12 9 RTF
SF202 0812DR 20 12 RA Side switch
SF202 1012DR 25 12 RA
SF202 0545DT 12.5 45 RTF Wireless Charge
SF202 1045DT 25 45 RTF
SF202 0550DT 12.5 50 RTF
SF202 1050DT 25 50 RTF
SF202 0570DT 12.5 70 RTF
SF202 1070DT 25 70 RTF
SF202 101850DT 25 18, 50 RTF
SF202 101870DT 25 18,70 RTF



Brief Introduction of FPC

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.



FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.



Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.



The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.





Double sided adhesiveless flexible copper clad laminate (SF202) with Yellow Coverlay 2
