Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler

Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler
Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler

Large Image :  Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-312.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide 25μm + 0.2mm Polyimide Stiffener Layer Count: 2 Layers
PCB Thickness: 0.2mm PCB Size: 119mm X 84.7mm = 1 Type = 1 Piece
Solder Mask: Yellow Coverlay Silkscreen: NO
Copper Weight: Outer Layer 35 μm/ Inner Layer 0 μm Surface Finish: Immersion Gold

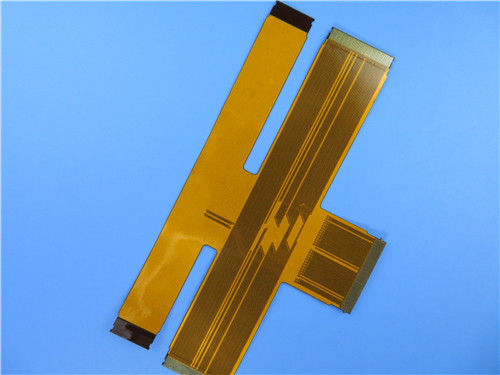

Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of 2 Layer flexible printed circuit (FPC) built on polyimide for the application of Multicoupler.



Basic specifications

Base material: Polyimide 25μm + 0.2mm polyimide stiffener

Layer count: 2 layers

Type: Individual FPC

Format: 119mm x 84.7mm = 1 type = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35 μm/ Inner layer 0 μm

Solder mask / Legend: Yellow coverlay / No.

Final PCB height: 0.20 mm

Standard: IPC 6012 Class 2

Packing: 100 pieces are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months



Dual Layer Flexible Printed Circuit (FPC) Built on Polyimide With Connector for Multicoupler 0



Features and benefits

Reliability increased;

Controllability of electrical parameter design;

The end can be whole soldered;

Impedance control test and solder-ability test;

Quick and on-time delivery;

16000 square meter workshop;

Quick CADCAM checking and free PCB quotation;

Prototype PCB capability;

Volume Production capability;



Applications

Instrument panel, POS touch screen soft board, Industrial control temperature controller soft board, mobile phone module flex board, telephone receiver / earphone FPC, consumer game consoles



Specifications of Standard 1 Layer FCCL



Specifications Thickness (µm) Copper Type Applications
Polyimide Film Copper Foil
SF201 0512SE 12.5 12 ED Motor, digital products etc.as univeral connector
SF201 0812SE 20 12 ED
SF201 1012SE 25 12 ED
SD201 0518SE 12.5 18 ED
SF201 0818SE 20 18 ED
SF201 1018SE 25 18 ED
SF201 0535SE 12.5 35 ED automotive electronics etc..
SF201 0835SE 20 35 ED
SF201 1035SE 25 35 ED
SF201 1070SE 25 70 ED
SF201 2070SE 50 70 ED Motor, digital products etc.as univeral connector
SF201 0512SR 12.5 12 RA
SF201 0812SR 20 12 RA
SF201 1012SR 25 12 RA
SF201 0518SR 12.5 18 RA
SF201 0818SR 20 18 RA
SF201 1018SR 25 18 RA



Brief Introduction of FPC

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.



FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.



Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.



The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.
