2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole

2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole
2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole

Large Image :  2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-302.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Polyimide Layer Count: Single Layer, Doulbe Layer, Multilayer,
PCB Thickness: 0.03mm-3.0mm PCB Size: 250 X 2000mm
Coverlay: Yellow, White, Black, Green Copper Weight: 0.5oz, 1oz, 2oz
Surface Finish: Immersion Nickel, Immersion Gold, Immersion Tin

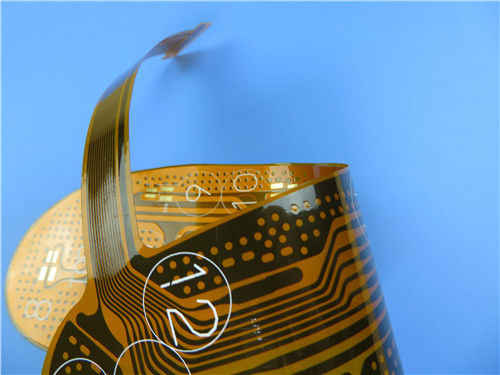

2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)



General description

This is a type of 2 Layer flexible printed circuit (FPC) built on polyimide for the application of sports insole.



Basic specifications

Base material: Polyimide 25μm + 0.3mm FR4 stiffener.

Layer count: 2 layers

Type: Individual FPC

Format: 250mm x 160mm = 1 type = 1 piece

Surface finish: Immersion gold

Copper weight: Outer layer 35 μm/ Inner layer 0 μm

Solder mask / Legend: Yellow coverlay / white

Final PCB height: 0.20 mm

Standard: IPC 6012 Class 2

Packing: 100 pieces are packed for shipment.

Lead time: 10 working days

Shelf life: 6 months



2-Layer Flexible Printed Circuit (FPC) Built on Polyimide With Immersion Gold and Stiffener for Sports Insole 0



Features and benefits

Excellent flexibility;

Weight reduction;

Increased reliability;

Meeting your PCB needs from prototype to mass production;

Powerful PCB capabilities support your research and development, sales and marketing;

Small quantity order is accepted;

12 hours quotation;

8000 types of PCB's per month;



Applications

Thin-film switch, Mobile phone camera flex board, Automobile sensor flex board, Industrial control temperature controller soft board, LED display soft board, POS antenna soft board, medical keypad soft board



Flexible Printed Circuit (FPC) Capability 2021

No. Specifications Capabilities
1 Board Type Single layer, Doulbe layer, Multilayer, Rigid-Flex
2 Base Material PI, PET
3 Copper Weight 0.5oz, 1oz, 2oz
4 LED Maximum Size 250 x 5000mm
5 General Maximum Size 250 x 2000mm
6 Board Thickness 0.03mm-3.0mm
7 Thickness Tolerance ±0.03mm
8 Mininum Drill Hole 0.05mm
9 Maximum Drill Hole 6.5mm
10 Tolerance of Drill Hole ±0.025mm
11 Thickness of Hole Wall ≧ 8 um
12 Minimum Track/Gap of Single Layer Board 0.025/0.03mm
13 Minimum Track/Gap of Double Layer and Multilayer Board 0.03/0.040mm
14 Etching Tolerance ±0.02mm
15 Minimum Width of Silk Legend ≧ 0.125mm
16 Minimum Heigh of Silk Legend ≧0.75mm
17 Distance from Legend to Pad ≧0.15mm
18 Distance from Opening Solder Mask of Drill Coverlay to Track ≧0.03mm
19 Distance from Opening Solder Mask of Punching Coverlay to Track ≧0.03mm
20 Thickness of Immersion Nickel 100-300u"
21 Thickness of Immersion Gold 1-3u"
22 Thicnkess of Immersion Tin 150-400u"
23 Minimum Electrical Testing Pad 0.2mm
24 Minimum Tolerance of Outline(Normal Steel Mould Punch) ±0.1mm
25 Minimum Tolerance of Outline (Precision Steel Mould Punch) ±0.05mm
26 Mininum Radius of Bevel Angle (Outline) 0.2mm
27 Stiffner Material PI, FR-4, 3M Adhesive, PET, Steel Sheet
28 RoHs Yes
29 Solder Mask Colour Yellow, White, Black, Green



Brief Introduction of FPC

Flexible Printed Circuit Board (FPC) is referred to as "soft board". In the industry, FPC is a printed circuit board made of flexible insulating substrate (mainly polyimide or polyester film), which has many advantages that rigid printed circuit boards do not have. For example, it can be freely bent, wound, folded. The volume of electronic products can be greatly reduced by using FPC, which is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability. Therefore, FPC has been widely used in aerospace, military, mobile communication, laptop, computer peripherals, PDA, digital camera and other fields or products.



FPC also has the advantages of good heat dissipation, solderability, easy mounting and low cost.



Flexible printed circuit board has one layer, two layers and multilayer board. The base material is polyimide clad laminate. This kind of material has high heat resistance and good dimensional stability. It is the final product through pressing with the coating film which has both mechanical protection and good electrical insulation. The surface and inner conductors of double-sided and multi-layer printed circuit boards are metallized to realize the electrical connection of inner and outer layers.



The function of flexible circuit board can be divided into four kinds, namely, lead line, printed circuit, connector and multifunction integrated system, which cover computer, computer peripheral auxiliary system, consumer household electrical appliance and automobile, etc.
