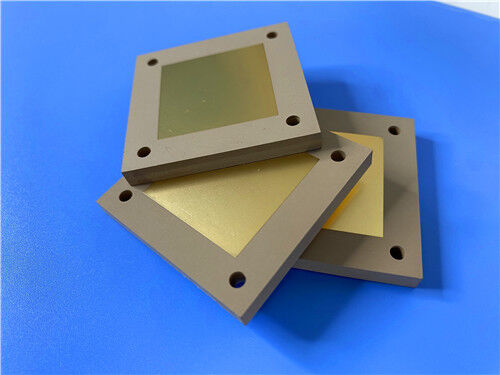

2-layer TP1600 High-DK PCB 0.9mm Thick Pure Gold Finish

2-layer TP1600 High-DK PCB 0.9mm Thick Pure Gold Finish

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
PCB Material:
TP1600
Layer Count:
2-layer
PCB Thickness:
0.9mm
PCB Size:
75mm × 68mm (1PCS)
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz (1.4 Mils) Outer Copper Layers
Surface Finish:
Pure Gold Plating
Highlight:

high frequency copper clad laminate

,

F4BM245 copper clad sheet

,

laminated copper sheet PCB

Product Description

This rigid 2-layer TP1600 high-Dk RF PCB is fabricated with specialized ceramic-filled PPO resin dielectric laminate, featuring an ultra-high dielectric constant of 16.0 for circuit miniaturization. Adopting pure gold plating surface finish and manufactured in compliance with IPC-Class-2 industrial standards, this 0.9mm thick PCB delivers stable low dissipation factor, precise dielectric control and radiation resistance. Without fiberglass reinforcement, TP1600 eliminates the weave effect for consistent electrical performance. It is highly suitable for miniaturized antennas, microwave filters, aerospace payloads and defense navigation systems.



PCB Specifications

Construction Item Details
Base Material TP1600 – Ceramic-filled PPO resin composite laminate for ultra-high Dk microwave circuits
Layer Count 2 layers – Rigid high-Dk PCB structure engineered for miniaturized RF devices
Board Dimensions 75mm × 68mm (1PCS), with a tight tolerance of +/- 0.15mm for precise assembly consistency
Trace & Space Minimum 4/6 mils, enabling compact circuit routing while preserving superior signal integrity
Minimum Hole Size 0.2mm, designed for high-precision through-hole component installation
Vias No blind vias, simplifying fabrication and ensuring stable interlayer electrical connectivity
Finished Board Thickness 0.9mm, optimized thickness balancing structural rigidity and miniaturization demands
Copper Weight 1oz (1.4 mils) outer copper layers, delivering steady conductivity for RF signal transmission
Via Plating Thickness 20μm, compliant with IPC-Class-2 standards to guarantee durable via conduction
Surface Finish Pure Gold Plating, featuring excellent conductivity, corrosion resistance and high-frequency stability for precision RF circuits
Silkscreen & Solder Mask Top Silkscreen: White; Bottom Silkscreen: White; Top Solder Mask: Green; Bottom Solder Mask: Green — Standard industrial coating for insulation and anti-oxidation protection
Quality Testing 100% electrical testing conducted prior to shipment to ensure reliable circuit performance



PCB Stack-up Configuration

Stack-up Component Specifications & Description
Copper Layer 1 35μm – High-purity copper layer for low-resistance microwave signal conduction
TP1600 Core 0.8 mm (31.49mil) – Fiberglass-free ceramic-filled PPO substrate with ultra-high stable Dk value
Copper Layer 2 35μm – Symmetrical copper layout to maintain excellent electrical stability
