FCCL TLX-0 High Frequency Laminates Copper Clad Sheet

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-332.V1.0

Part Number:

TLX-0

Laminate Thickness:

0.0050 - 0.250 Inches (0.127 - 6.35mm)

Laminate Size:

12 X 18inch (304 X 457mm); 16 X 18inch (406 X 457mm); 18 X 24inch(457 X 610mm); 16 X 36inch (406 X 914mm); 24 X 36inch (610 X 914mm); 18 X 48inch (457 X 1220mm); 36 X 48inch (914 X 1220mm)

Copper Weight:

½ Oz (18mm); 1 Oz (35µm)

Highlight:

FCCL TLX-0 high frequency laminates

copper clad sheet with warranty

high frequency copper clad laminates

Product Description

TLX is a DK 2.45 copper-clad laminate, well-suited for low layer-count microwave designs.

Featuring PTFE fiberglass construction, TLX laminates are an excellent choice for radar systems, mobile communications, microwave test equipment, microwave transmission devices, and RF components.

TLX has become a reliable workhorse within the RF and microwave substrate industry. Its fiberglass reinforcement delivers robust mechanical stability for substrates operating in extreme environments, including:

-Creep resistance for PWBs bolted to enclosures exposed to high vibration during space launch

-High-temperature endurance in engine modules

-Radiation resistance for space applications (refer to NASA’s website for low-outgassing material details)

-Harsh marine environment resistance for naval shipboard antennas

-Broad temperature-range stability for altimeter substrates during flight

With a wide selection of dielectric constants, TLX supports the production of couplers, splitters, combiners, amplifiers, antennas, and various other components.

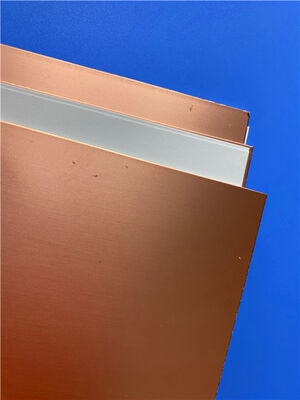

FCCL TLX-0 High Frequency Laminates Copper Clad Sheet 0

Key Advantages

Excellent PIM performance in PCBs (measured below -160 dBc*)
Superior mechanical and thermal properties
Low and stable dielectric constant (Dk)
High dimensional stability
Low moisture absorption
Tightly controlled Dk
Low dissipation factor (Df)
UL 94 V0 flammability rating

Typical Uses

Low layer-count microwave designs
Antennas
Mixers, splitters, filters, and combiners
Passive RF components
