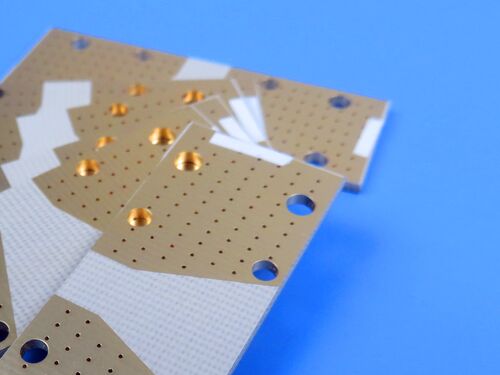

RF-10 PCB 25mil Double-layer 1OZ High Reliability Circuit Board

Utilizing RF-10 copper clad laminate as the base material, this 2-layer rigid PCB is tailored for high-performance RF applications. RF-10 integrates ceramic filled PTFE and woven fiberglass, endowing the PCB with high dielectric constant, low dissipation factor, and excellent dimensional stability. It reliably fulfills the stringent requirements for high-frequency signal transmission in precision RF scenarios, including microstrip patch antennas and GPS antenna systems.

PCB Specifications

PCB Stack-up

RF-10 Material Introduction

RF-10 copper clad laminates are composites of ceramic filled PTFE and woven fiberglass. RF-10 has the advantage of high dielectric constant and low dissipation factor. Thin woven fiberglass reinforcement is used to offer both low dielectric loss and improved rigidity for ease of handling and improved dimensional stability for multilayer circuits.

RF-10 laminates are engineered to provide a cost effective substrate with industry acceptable delivery times. RF-10 responds to a need in RF applications for size reduction. RF-10 bonds well to smooth low profile copper. The low dissipation of RF-10 combined with the use of very smooth copper results in optimal insertion losses at higher frequency where skin effect losses play a substantial role.

Key Material Features

Core Benefits

High Dk for RF Circuit Size Reduction: Dielectric constant of 10.2 ± 0.3 enables effective miniaturization of RF circuits.

Excellent Dimensional Stability: Thin woven fiberglass reinforcement enhances rigidity and dimensional stability, facilitating handling and multilayer circuit applications.

Tight Dk Tolerance: Strict control of dielectric constant (±0.3) ensures consistent performance across circuits.

Superior Thermal Management: High thermal conductivity (0.85 W/mk) improves heat dissipation efficiency.

Excellent Copper Adhesion: Bonds well to smooth low profile copper, optimizing insertion losses at higher frequencies.

Low Thermal Expansion: Low X, Y, Z axis CTE ensures stable performance under thermal cycling.

Excellent Price/Performance Ratio: Cost-effective substrate with industry-acceptable delivery times.

Quality Standard & Availability

Quality Standard: Complies with IPC-Class-2, ensuring consistent product quality through strict manufacturing process control and 100% electrical testing before shipment.

Availability: Supports global supply, enabling timely delivery and efficient after-sales support for customers worldwide.

Typical Applications

Microstrip Patch Antennas

GPS Antennas

Passive Components (filters, couplers, power dividers)

Aircraft Collision Avoidance Systems

Satellite Components
