TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish
  • name

TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
Base Material:
TLY-5
Layer Count:
2-layer
PCB Thickness:
0.3mm
PCB Size:
55mm × 50mm
Silkscreen:
No
Solder Mask:
No
Copper Weight:
1oz (1.4 Mils) For Outer Layers
Surface Finish:
Immersion Gold
Highlight:

Immersion Gold Finish RF PCB

,

TLY-5 RF PCB

,

2 Layer RF PCB

Product Description

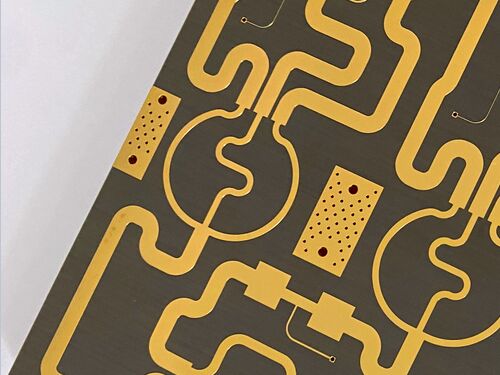

This 2-layer rigid PCB adopts TLY-5, a dimensionally stable laminate with lightweight woven fiberglass. Specifically engineered to meet rigorous high-frequency RF signal transmission requirements, it is highly applicable to automotive radar and millimeter wave antenna systems.



PCB Specifications

Parameter Details
Layer Count 2-Layer (rigid structure)
Base Material TLY-5
Board Dimensions 55mm × 50mm per piece (1PCS), tolerance ±0.15mm
Minimum Trace/Space 6 mils (trace) / 8 mils (space)
Minimum Hole Size 0.2mm
Vias No blind vias; Total vias: 17; Via plating thickness: 20 μm
Finished Board Thickness 0.3mm
Finished Copper Weight 1oz (1.4 mils) for outer layers
Surface Finish Immersion Gold
Silkscreen No silkscreen on top layer; No silkscreen on bottom layer
Solder Mask No solder mask on top layer; No solder mask on bottom layer
Quality Assurance 100% electrical test conducted prior to shipment



PCB Stack-up

Layer Name Material Thickness
Top Copper Layer (Copper_layer_1) Copper 35 μm
Substrate Core TLY-5 0.254mm (10 mil)
Bottom Copper Layer (Copper_layer_2) Copper 35 μm



TLY-5 Material Introduction

TLY-5 laminates are manufactured with very lightweight woven fiberglass and are much more dimensionally stable than chopped fiber reinforced PTFE composites. The woven matrix in the TLY-5 material yields a more mechanically stable laminate that is suitable for high volume manufacturing. The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies.



TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish 0



Key Material Features

Feature Specification/Description
Material Composition TLY-5 laminate with lightweight woven fiberglass
Dielectric Constant (Dk) 2.2 ± 0.02 at 10 GHz/23°C
Loss Tangent 0.0009 at 10 GHz
Density (Specific Gravity) 2.19 g/cm³
Moisture Absorption 0.02%
Coefficient of Thermal Expansion (CTE) X axis: 26 ppm/°C; Y axis: 15 ppm/°C; Z axis: 217 ppm/°C



Core Benefits

Dimensional Stability: Superior to chopped fiber reinforced PTFE composites.



Lowest Dissipation Factor (DF): Suitable for 77 GHz automotive radar and millimeter wave applications.



Low Moisture Absorption: Minimizes performance degradation in humid environments.



High Copper Peel Strength: Enhances structural reliability and component bonding.



Uniform & Consistent Dk: Ensures stable electrical performance.



High-Volume Manufacturing Suitability: Mechanically stable for mass production.



Quality Standard & Availability

Accepted Standard: Complies with IPC-Class-2, ensuring consistent quality via rigorous process control and 100% electrical verification prior to shipment.



Availability: Worldwide availability, enabling timely delivery and efficient after-sales support for international customers.



Typical Applications

-Automotive Radar

-Satellite/Cellular Communications

-Power Amplifiers

-LNBs, LNAs, LNCs

-Aerospace

-Ka, E and W band Applications



Summary

This 2-layer rigid PCB based on TLY-5 substrate is a high-performance solution tailored for high-frequency microwave and RF applications, especially 77 GHz automotive radar. By leveraging TLY-5's superior properties (excellent dimensional stability, lowest dissipation factor, low moisture absorption, uniform Dk), and strict compliance with IPC-Class-2 standards, it effectively meets the rigorous signal transmission requirements of millimeter wave systems.



TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish 1

Tags:

1oz RF PCB Board,

1.6mm RF PCB Board,

0.635mm RF PCB Board

Recommended Products
RF/Microwave F4BTMS450 PCB 4-Layer 1.4mm Thick

RF/Microwave F4BTMS450 PCB 4-Layer 1.4mm Thick

Contact Now
2L MT77 PCB 10mil Material Low-Loss Circuit Board

2L MT77 PCB 10mil Material Low-Loss Circuit Board

Contact Now
0.6mm TLX-0 PCB Double-Sided Immersion Gold Finish

0.6mm TLX-0 PCB Double-Sided Immersion Gold Finish

Contact Now
RO3003 PCB Double-Layer 50mil Rogers Laminate 1OZ RF Circuit Board

RO3003 PCB Double-Layer 50mil Rogers Laminate 1OZ RF Circuit Board

Contact Now
2-layer PCB on RF-10 Substrate 20mil Immersion Silver Finish

2-layer PCB on RF-10 Substrate 20mil Immersion Silver Finish

Contact Now
F4BTMS255 PCB Double-Sided 60mil Thick with Immersion Gold

F4BTMS255 PCB Double-Sided 60mil Thick with Immersion Gold

Contact Now
Double-layer Taconic TLY-3 PCB 20mil Laminate

Double-layer Taconic TLY-3 PCB 20mil Laminate

Contact Now
products
PRODUCTS DETAILS
Products

RF PCB Board

Rogers PCB Board

PTFE PCB Board

High TG PCB

Multi Layer PCB

Taconic PCB

HDI PCB Board

High Speed PCB

Impedance Controlled PCB

Flexible PCB Board

FR4 PCB Board

PCB Stencil

Metal Core PCB
TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish
  • name
TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish
MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
Base Material:
TLY-5
Layer Count:
2-layer
PCB Thickness:
0.3mm
PCB Size:
55mm × 50mm
Silkscreen:
No
Solder Mask:
No
Copper Weight:
1oz (1.4 Mils) For Outer Layers
Surface Finish:
Immersion Gold
Minimum Order Quantity:
1PCS
Price:
USD9.99-99.99
Packaging Details:
Vacuum bags+Cartons
Delivery Time:
8-9 working days
Payment Terms:
T/T
Supply Ability:
5000PCS per month
Highlight

Immersion Gold Finish RF PCB

,

TLY-5 RF PCB

,

2 Layer RF PCB

Product Description

This 2-layer rigid PCB adopts TLY-5, a dimensionally stable laminate with lightweight woven fiberglass. Specifically engineered to meet rigorous high-frequency RF signal transmission requirements, it is highly applicable to automotive radar and millimeter wave antenna systems.



PCB Specifications

Parameter Details
Layer Count 2-Layer (rigid structure)
Base Material TLY-5
Board Dimensions 55mm × 50mm per piece (1PCS), tolerance ±0.15mm
Minimum Trace/Space 6 mils (trace) / 8 mils (space)
Minimum Hole Size 0.2mm
Vias No blind vias; Total vias: 17; Via plating thickness: 20 μm
Finished Board Thickness 0.3mm
Finished Copper Weight 1oz (1.4 mils) for outer layers
Surface Finish Immersion Gold
Silkscreen No silkscreen on top layer; No silkscreen on bottom layer
Solder Mask No solder mask on top layer; No solder mask on bottom layer
Quality Assurance 100% electrical test conducted prior to shipment



PCB Stack-up

Layer Name Material Thickness
Top Copper Layer (Copper_layer_1) Copper 35 μm
Substrate Core TLY-5 0.254mm (10 mil)
Bottom Copper Layer (Copper_layer_2) Copper 35 μm



TLY-5 Material Introduction

TLY-5 laminates are manufactured with very lightweight woven fiberglass and are much more dimensionally stable than chopped fiber reinforced PTFE composites. The woven matrix in the TLY-5 material yields a more mechanically stable laminate that is suitable for high volume manufacturing. The low dissipation factor enables successful deployment for automotive radar applications designed at 77 GHz as well as other antennas in millimeter wave frequencies.



TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish 0



Key Material Features

Feature Specification/Description
Material Composition TLY-5 laminate with lightweight woven fiberglass
Dielectric Constant (Dk) 2.2 ± 0.02 at 10 GHz/23°C
Loss Tangent 0.0009 at 10 GHz
Density (Specific Gravity) 2.19 g/cm³
Moisture Absorption 0.02%
Coefficient of Thermal Expansion (CTE) X axis: 26 ppm/°C; Y axis: 15 ppm/°C; Z axis: 217 ppm/°C



Core Benefits

Dimensional Stability: Superior to chopped fiber reinforced PTFE composites.



Lowest Dissipation Factor (DF): Suitable for 77 GHz automotive radar and millimeter wave applications.



Low Moisture Absorption: Minimizes performance degradation in humid environments.



High Copper Peel Strength: Enhances structural reliability and component bonding.



Uniform & Consistent Dk: Ensures stable electrical performance.



High-Volume Manufacturing Suitability: Mechanically stable for mass production.



Quality Standard & Availability

Accepted Standard: Complies with IPC-Class-2, ensuring consistent quality via rigorous process control and 100% electrical verification prior to shipment.



Availability: Worldwide availability, enabling timely delivery and efficient after-sales support for international customers.



Typical Applications

-Automotive Radar

-Satellite/Cellular Communications

-Power Amplifiers

-LNBs, LNAs, LNCs

-Aerospace

-Ka, E and W band Applications



Summary

This 2-layer rigid PCB based on TLY-5 substrate is a high-performance solution tailored for high-frequency microwave and RF applications, especially 77 GHz automotive radar. By leveraging TLY-5's superior properties (excellent dimensional stability, lowest dissipation factor, low moisture absorption, uniform Dk), and strict compliance with IPC-Class-2 standards, it effectively meets the rigorous signal transmission requirements of millimeter wave systems.



TLY-5 RF PCB 10mil 2-layer Immersion Gold Finish 1

Tags:

1oz RF PCB Board,

1.6mm RF PCB Board,

0.635mm RF PCB Board
