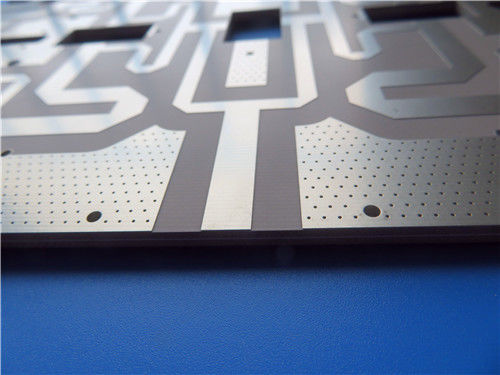

2-Layer Rogers RT duroid 6010.2LM PCB 75mil Thick
  • name

2-Layer Rogers RT duroid 6010.2LM PCB 75mil Thick

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
Base Material:
Rogers RT/duroid 6010.2LM
Layer Count:
2 Layers
PCB Thickness:
2.0mm
PCB Size:
45.4mm X 31.8mm (1 Piece)±0.15mm
Silkscreen:
White
Solder Mask:
No
Copper Weight:
1oz (1.4 Mils / 35μm)
Surface Finish:
Immersion Silver
Highlight:

Rogers RT duroid 6010.2LM PCB

,

2-layer Rogers PCB board

,

75mil thick Rogers PCB

Product Description
2-Layer Rogers RT duroid 6010.2LM PCB 75mil Thick
This high-reliability 2-layer PCB is built with Rogers RT/duroid 6010.2LM--a premium ceramic-PTFE composite optimized for electronic and microwave circuits requiring high dielectric constant (Dk) and minimal loss. Engineered to enable compact design while ensuring consistent performance, it meets IPC-Class-2 quality standards and is ideal for X-band and below applications where space efficiency and signal integrity are critical.
PCB Specification
Parameter Details
Base Material Rogers RT/duroid 6010.2LM (ceramic-PTFE composite core)
Layer Count 2-Layer rigid PCB
Board Dimensions 45.4mm x 31.8mm (1 piece)±0.15mm
Minimum Trace/Space 4/5 mils
Minimum Hole Size 0.3mm
Via Type No blind vias (thru-hole vias only)
Finished Board Thickness 2.0mm
Finished Copper Weight (Outer Layers) 1oz (equivalent to 1.4 mils / 35 μm per layer)
Via Plating Thickness 20 μm
Surface Finish Immersion Silver (enhances conductivity, ensures reliable soldering)
Silkscreen Top: White; Bottom: No
Solder Mask Top: No; Bottom: No
Quality Assurance 100% Electrical test prior to shipment
PCB Stack-up Details
Layer Type Material/Description Thickness
Copper Layer 1 (Outer) Conductive copper (finished) 35 μm (1oz)
Dielectric Core Rogers RT/duroid 6010.2LM 1.905 mm (75 mils)
Copper Layer 2 (Outer) Conductive copper (finished) 35 μm (1oz)
Material Overview: Rogers RT/duroid 6010.2LM
Rogers RT/duroid 6010.2LM is a specialized ceramic-PTFE composite laminate designed for high-frequency circuits that demand both high dielectric constant and low loss. Its formulation enables significant circuit size reduction (critical for space-constrained systems) while maintaining tight control over Dk and thickness--ensuring repeatable performance across production runs. The material also features exceptional thermal and mechanical stability, including low Z-axis expansion, making it compatible with reliable plated through-hole designs (even for multi-layer scaling).
2-Layer Rogers RT duroid 6010.2LM PCB 75mil Thick 0
Key Material Features
Specification Value
Material Type Ceramic-PTFE composite
Dielectric Constant (Dk) 10.2 ± 0.25 at 10 GHz
Dissipation Factor (tanδ) 0.0023 at 10 GHz
Decomposition Temperature (Td, TGA) 500 °C
Moisture Absorption 0.01%
Coefficient of Thermal Expansion (CTE) X-axis: 24 ppm/°C; Y-axis: 24 ppm/°C; Z-axis: 47 ppm/°C
Thermal Conductivity 0.86 W/mK
Flammability Rating UL 94 V-0
Core Benefits
  • Enables Compact Circuit Design: With a high Dk of 10.2, the material significantly reduces PCB footprint--ideal for space-constrained microwave and electronic systems.
  • Optimized for Low-Frequency Signal Integrity: Ultra-low dissipation factor (0.0023) ensures minimal signal attenuation, making it perfect for applications operating at X-band and below.
  • Reliable Multi-Layer Compatibility: Low Z-axis CTE (47 ppm/°C) prevents thermal stress on plated through-holes, ensuring long-term reliability even when scaling to multi-layer designs.
  • Moisture-Immune Performance: Near-zero moisture absorption (0.01%) eliminates moisture-related signal loss or degradation, even in harsh or humid environments.
  • Consistent Production Quality: Tight control over Dk (±0.25) and thickness guarantees uniform performance across every PCB, reducing production variability and improving end-system reliability.
Typical Applications
This PCB is engineered for high-performance, space-efficient systems, including:
  • Patch Antennas
  • Satellite Communications Systems
  • Power Amplifiers
  • Aircraft Collision Avoidance Systems
  • Ground Radar Warning Systems
2-Layer Rogers RT duroid 6010.2LM PCB 75mil Thick 1
Tags:

RO4003C LoPro Rogers PCB Board,

8mil Rogers PCB Board,

0.5oz Rogers PCB Board
