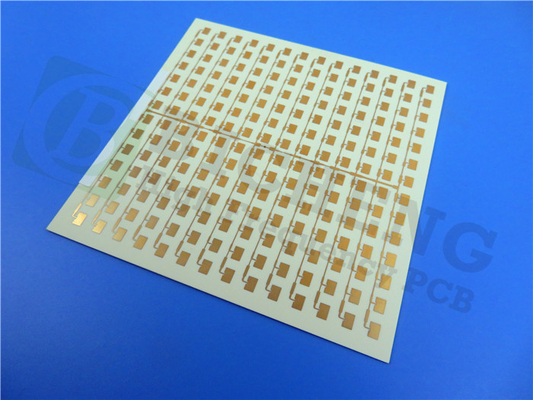

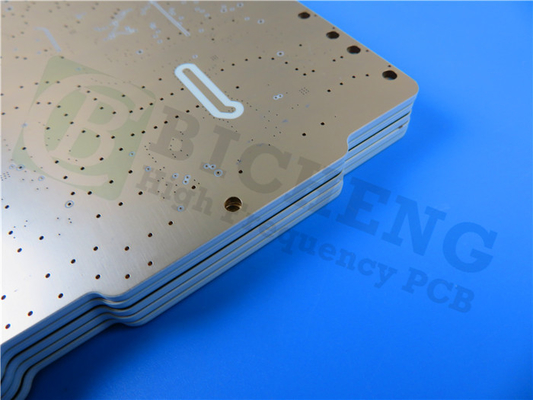

Kappa 438 PCB 40mil 2-Layer RF Circuit With Electroless Nickle And Immersion Gold (ENIG)

Kappa 438 PCB 40mil 2-Layer RF Circuit With Electroless Nickle And Immersion Gold (ENIG)

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
Rogers Core Kappa 438
Layer Count:
2-layer
PCB Size:
91.17mm X 51.36mm=1PCS, +/- 0.15mm
PCB Thickness:
1.1mm
Copper Weight:
1oz (1.4 Mils) Outer Layers
Surface Finish:
Eelectroless Nickle And Immersion Gold (ENIG)
Highlight:

2-Layer RF Circuit

,

438 PCB

,

40mil RF Circuit

Product Description

The Kappa 438 PCB is engineered from Rogers' innovative glass-reinforced hydrocarbon ceramic system, delivering superior high-frequency performance while maintaining a cost-effective fabrication process. This low-loss material is compatible with standard epoxy/glass (FR-4) manufacturing techniques, making it an ideal choice for a wide range of applications. With a UL 94 V-0 flame retardant rating and lead-free solder compatibility, Kappa 438 is designed to meet the demands of modern electronics. Standard thicknesses available include 10, 20, 30, 40, and 60 mils.



Kappa 438 laminates feature dielectric constants (Dk) that align with FR-4 industry norms, facilitating the seamless conversion of existing FR-4 designs to achieve enhanced electrical performance.



Key Features

Kappa 438 offers a robust set of features, including a Dk of 4.38, which is specifically tailored to meet FR-4 standards. The material boasts tighter Dk and thickness tolerances compared to traditional FR-4, ensuring consistent performance.



With a low Z-axis coefficient of thermal expansion (CTE) of 42 ppm/°C and a high glass transition temperature (Tg) of over 280°C, Kappa 438 is engineered for reliability under demanding conditions. The thermal coefficient of dielectric constant is -21 ppm/°C within the temperature range of -50°C to 150°C, further enhancing its suitability for a variety of applications. Additionally, Kappa 438 meets UL 94-V0 requirements for flammability.



Property Typical Value Kappa 438 Direction Units Condition Test Method
Dielectric Constant, er Design 4.38 Z - 2.5 GHz Differential Phase Length Method
Dissipation Factor tan, d 0.005 Z - 10 GHz/23°C IPC-TM-650 2.5.5.5
Thermal Coefficient of Dielectric Constant e -21 - ppm/°C 10 GHz (-50 to 150°C) Modified IPC-TM-650 2.5.5.5
Volume Resistivity 2.9 x 109 - MΩ•cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 6.2 x 107 - MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 675 Z V/mil - IPC-TM-650 2.5.6.2
Tensile Strength 16 12 MD CMD kpsi - ASTM D3039/D3039-14
Flexural Strength 25 19 MD CMD kpsi - IPC-TM-650 2.4.4
Dimensional Stability -0.48-0.59 MD CMD mm/m - IPC-TM-650 2.4.39a
Coefficient of Thermal Expansion 13 X ppm/°C -55 to 288°C IPC-TM-650 2.4.41
16 Y
42 Z
Thermal Conductivity 0.64 Z W/(m.K) 80°C ASTM D5470
Time to Delamination (T288) >60 - minutes 288°C IPC-TM-650 2.4.24.1
Tg >280 - °C TMA - IPC-TM-650 2.4.24.3
Td 414 - °C - IPC-TM-650 2.3.40
Moisture Absorption 0.07 - % 24/23 IPC-TM-650 2.6.2.1
Young’s Modulus 2264 2098 MD CMD kpsi - ASTM D3039/D3039-14
Flex Modulus 2337 2123 MD CMD kpsi - IPC-TM-650 2.4.4
Bow 0.03 - % - IPC-TM-650 2.4.22C
Twist 0.08 - % - IPC-TM-650 2.4.22C
Copper Peel Strength After Thermal Stress 5.8 - lbs/in 1 oz (35 µm) foil IPC-TM-650 2.4.8
Flammability V-0 - - - UL 94
Specific Gravity 1.99 - g/cm3 - ASTM D792
Lead-Free Process Compatible Yes - - -



Benefits

The Kappa 438 PCB offers several significant advantages:



- Ease of manufacturing and assembly in line with standard FR-4 processes.


- Design flexibility through a Dk that allows for straightforward conversion of existing FR-4 designs requiring improved electrical performance.


- Consistent circuit performance across a range of applications.


- Enhanced plated through-hole reliability, contributing to overall durability.


- Compatibility with automated assembly processes, streamlining production.



PCB Material: Glass Reinforced Hydrocarbon Ceramic
Designation: Kappa 438
Dielectric constant: 4.38
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm)
PCB thickness: 20mil (0.508mm), 30mil (0.762mm), 40mil (1.016mm), 60mil (1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



Kappa 438 PCB 40mil 2-Layer RF Circuit With  Electroless Nickle And Immersion Gold (ENIG) 0



Specifications

This PCB stackup consists of a 2-layer rigid design, featuring a Copper Layer 1 of 35 μm, a Rogers Core Kappa 438 measuring 1.016 mm (40 mil), and a Copper Layer 2 also at 35 μm.



The board dimensions are 91.17 mm x 51.36 mm, with a tolerance of +/- 0.15 mm. The minimum trace/space is set at 4/7 mils, and the minimum hole size is 0.25 mm.



The finished board thickness is 1.1 mm, with a finished copper weight of 1 oz (1.4 mils) for the outer layers. The via plating thickness is 20 μm, and the surface finish is electroless nickel with immersion gold (ENIG).



This PCB features a white silkscreen on the top side, while the bottom side has none. The top side is coated with a blue solder mask, and there is no solder mask on the bottom. Each PCB undergoes a 100% electrical test prior to shipment to guarantee reliability.



Standards & Availability

The Kappa 438 PCB is manufactured to high-quality standards, with the artwork type being Gerber RS-274-X. It adheres to IPC-Class-2 quality standards, ensuring reliable performance in various applications. This product is available worldwide, making it suitable for a diverse range of electronic needs.



Typical Applications

The Kappa 438 PCB is ideal for numerous applications, including:



- Carrier Grade WiFi and Licensed Assisted Access (LAA)
- Small Cell and Distributed Antenna Systems (DAS)
- Vehicle-to-Vehicle and Vehicle-to-Infrastructure Communications (V2X)
- Internet of Things (IoT) segments, such as smart home devices and wireless meters



Kappa 438 PCB 40mil 2-Layer RF Circuit With  Electroless Nickle And Immersion Gold (ENIG) 1

products
PRODUCTS DETAILS
Kappa 438 PCB 40mil 2-Layer RF Circuit With Electroless Nickle And Immersion Gold (ENIG)
MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
Rogers Core Kappa 438
Layer Count:
2-layer
PCB Size:
91.17mm X 51.36mm=1PCS, +/- 0.15mm
PCB Thickness:
1.1mm
Copper Weight:
1oz (1.4 Mils) Outer Layers
Surface Finish:
Eelectroless Nickle And Immersion Gold (ENIG)
Minimum Order Quantity:
1PCS
Price:
USD9.99-99.99/PCS
Packaging Details:
Vacuum bags+Cartons
Delivery Time:
8-9 working days
Payment Terms:
T/T
Supply Ability:
5000PCS per month
Highlight

2-Layer RF Circuit

,

438 PCB

,

40mil RF Circuit

Product Description

The Kappa 438 PCB is engineered from Rogers' innovative glass-reinforced hydrocarbon ceramic system, delivering superior high-frequency performance while maintaining a cost-effective fabrication process. This low-loss material is compatible with standard epoxy/glass (FR-4) manufacturing techniques, making it an ideal choice for a wide range of applications. With a UL 94 V-0 flame retardant rating and lead-free solder compatibility, Kappa 438 is designed to meet the demands of modern electronics. Standard thicknesses available include 10, 20, 30, 40, and 60 mils.



Kappa 438 laminates feature dielectric constants (Dk) that align with FR-4 industry norms, facilitating the seamless conversion of existing FR-4 designs to achieve enhanced electrical performance.



Key Features

Kappa 438 offers a robust set of features, including a Dk of 4.38, which is specifically tailored to meet FR-4 standards. The material boasts tighter Dk and thickness tolerances compared to traditional FR-4, ensuring consistent performance.



With a low Z-axis coefficient of thermal expansion (CTE) of 42 ppm/°C and a high glass transition temperature (Tg) of over 280°C, Kappa 438 is engineered for reliability under demanding conditions. The thermal coefficient of dielectric constant is -21 ppm/°C within the temperature range of -50°C to 150°C, further enhancing its suitability for a variety of applications. Additionally, Kappa 438 meets UL 94-V0 requirements for flammability.



Property Typical Value Kappa 438 Direction Units Condition Test Method
Dielectric Constant, er Design 4.38 Z - 2.5 GHz Differential Phase Length Method
Dissipation Factor tan, d 0.005 Z - 10 GHz/23°C IPC-TM-650 2.5.5.5
Thermal Coefficient of Dielectric Constant e -21 - ppm/°C 10 GHz (-50 to 150°C) Modified IPC-TM-650 2.5.5.5
Volume Resistivity 2.9 x 109 - MΩ•cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 6.2 x 107 - MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 675 Z V/mil - IPC-TM-650 2.5.6.2
Tensile Strength 16 12 MD CMD kpsi - ASTM D3039/D3039-14
Flexural Strength 25 19 MD CMD kpsi - IPC-TM-650 2.4.4
Dimensional Stability -0.48-0.59 MD CMD mm/m - IPC-TM-650 2.4.39a
Coefficient of Thermal Expansion 13 X ppm/°C -55 to 288°C IPC-TM-650 2.4.41
16 Y
42 Z
Thermal Conductivity 0.64 Z W/(m.K) 80°C ASTM D5470
Time to Delamination (T288) >60 - minutes 288°C IPC-TM-650 2.4.24.1
Tg >280 - °C TMA - IPC-TM-650 2.4.24.3
Td 414 - °C - IPC-TM-650 2.3.40
Moisture Absorption 0.07 - % 24/23 IPC-TM-650 2.6.2.1
Young’s Modulus 2264 2098 MD CMD kpsi - ASTM D3039/D3039-14
Flex Modulus 2337 2123 MD CMD kpsi - IPC-TM-650 2.4.4
Bow 0.03 - % - IPC-TM-650 2.4.22C
Twist 0.08 - % - IPC-TM-650 2.4.22C
Copper Peel Strength After Thermal Stress 5.8 - lbs/in 1 oz (35 µm) foil IPC-TM-650 2.4.8
Flammability V-0 - - - UL 94
Specific Gravity 1.99 - g/cm3 - ASTM D792
Lead-Free Process Compatible Yes - - -



Benefits

The Kappa 438 PCB offers several significant advantages:



- Ease of manufacturing and assembly in line with standard FR-4 processes.


- Design flexibility through a Dk that allows for straightforward conversion of existing FR-4 designs requiring improved electrical performance.


- Consistent circuit performance across a range of applications.


- Enhanced plated through-hole reliability, contributing to overall durability.


- Compatibility with automated assembly processes, streamlining production.



PCB Material: Glass Reinforced Hydrocarbon Ceramic
Designation: Kappa 438
Dielectric constant: 4.38
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm)
PCB thickness: 20mil (0.508mm), 30mil (0.762mm), 40mil (1.016mm), 60mil (1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



Kappa 438 PCB 40mil 2-Layer RF Circuit With  Electroless Nickle And Immersion Gold (ENIG) 0



Specifications

This PCB stackup consists of a 2-layer rigid design, featuring a Copper Layer 1 of 35 μm, a Rogers Core Kappa 438 measuring 1.016 mm (40 mil), and a Copper Layer 2 also at 35 μm.



The board dimensions are 91.17 mm x 51.36 mm, with a tolerance of +/- 0.15 mm. The minimum trace/space is set at 4/7 mils, and the minimum hole size is 0.25 mm.



The finished board thickness is 1.1 mm, with a finished copper weight of 1 oz (1.4 mils) for the outer layers. The via plating thickness is 20 μm, and the surface finish is electroless nickel with immersion gold (ENIG).



This PCB features a white silkscreen on the top side, while the bottom side has none. The top side is coated with a blue solder mask, and there is no solder mask on the bottom. Each PCB undergoes a 100% electrical test prior to shipment to guarantee reliability.



Standards & Availability

The Kappa 438 PCB is manufactured to high-quality standards, with the artwork type being Gerber RS-274-X. It adheres to IPC-Class-2 quality standards, ensuring reliable performance in various applications. This product is available worldwide, making it suitable for a diverse range of electronic needs.



Typical Applications

The Kappa 438 PCB is ideal for numerous applications, including:



- Carrier Grade WiFi and Licensed Assisted Access (LAA)
- Small Cell and Distributed Antenna Systems (DAS)
- Vehicle-to-Vehicle and Vehicle-to-Infrastructure Communications (V2X)
- Internet of Things (IoT) segments, such as smart home devices and wireless meters



Kappa 438 PCB 40mil 2-Layer RF Circuit With  Electroless Nickle And Immersion Gold (ENIG) 1
