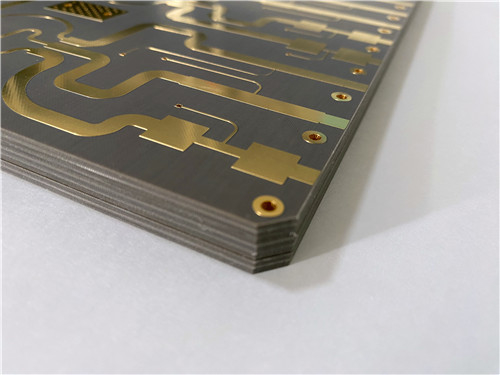

TP1020 PCB 2-layer 6mm Thick ENIG Finish 1oz Copper

Introducing the TP1020 Double-Sided PCB, a high-performance printed circuit board designed for advanced applications in high-frequency environments. Constructed with top-grade TP1020 material, this PCB is engineered for reliability and optimal dielectric performance, making it ideal for complex electronic circuits.

The TP1020 material is a unique thermoplastic composition, integrating ceramics with polyphenylene oxide resin (PPO). Unlike traditional PCB materials reinforced with fiberglass, TP1020 offers superior dielectric performance and stability. The absence of fiberglass allows for a smoother surface, improving signal integrity and reducing losses, which is critical for high-frequency applications.

Key Properties of TP1020

- Dielectric Constant (Dk): Adjustable within the range of 3 to 25, with a standard value of 10.2±0.2 at 10GHz. This tunability ensures that designs can be optimized for specific circuit requirements.

- Low Dissipation Factor: With a dissipation factor of 0.0012 at 10GHz, the TP1020 minimizes energy loss, enhancing overall efficiency.

- Thermal Stability: The material exhibits a low thermal coefficient of dielectric constant (TCDK) of -40 ppm/°C, ensuring stable performance across a wide temperature range (-55°C to 150°C).

Technical Specifications

The TP1020 PCB is meticulously engineered with the following specifications:

- Layer Count: Double-sided
- Board Dimensions: 129mm x 129mm (±0.15mm)
- Minimum Trace/Space: 5/8 mils, allowing for densely packed designs.
- Minimum Hole Size: 0.7mm, accommodating various component types.
- Finished Board Thickness: 6.0mm to ensure durability.
- Surface Finish: Electroless Nickel Immersion Gold (ENIG) for excellent solderability and corrosion resistance.
- Electrical Testing: Each board undergoes a 100% electrical test prior to shipment, ensuring quality assurance.

Applications of the TP1020 PCB

The versatility of the TP1020 PCB makes it suitable for a broad range of high-tech applications:

1. Global Satellite Navigation Systems: The high-frequency capabilities and low loss characteristics make the TP1020 ideal for precision navigation systems.

2. Missile-borne Systems: The PCB's reliability and performance under extreme conditions are crucial for military applications where failure is not an option.

3. Fuze Technology: The TP1020 PCB supports the complex circuitry required for modern fuze systems, ensuring reliable detonation mechanisms.

4. Miniaturized Antennas: With its compact design and high-frequency performance, the TP1020 is perfect for developing miniaturized antennas used in various communication devices.

Quality Assurance

Our commitment to quality is reflected in the IPC-Class-2 standard adherence for the TP1020 PCB. Each board is subjected to stringent testing protocols, ensuring that they meet industry benchmarks for performance and reliability. The 100% electrical testing guarantees that every PCB shipped is free from defects, providing our customers with peace of mind.

Conclusion

The TP1020 Double-Sided PCB is more than just a circuit board; it's a high-performance solution that meets the rigorous demands of modern electronics. With its advanced material properties and precise engineering, TP1020 PCB is poised to elevate your projects to new heights.

As we continue to innovate and expand our offerings, we invite you to explore the potential of the TP1020 PCB for your next project. For inquiries or to place an order, please contact our sales team or visit our website.
