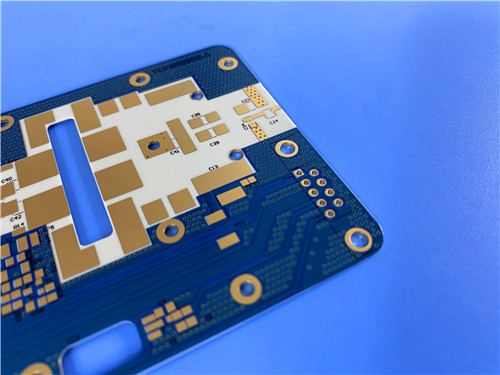

RF-60A PCB 2-layer 25mil Thick Black Silkscreen Immersion Gold

This high-performance PCB is engineered to meet the stringent requirements of a variety of high-frequency applications, ensuring reliability and precision.

Understanding RF-60A Material

The RF-60A is part of Taconic's esteemed ORCER family, known for its exceptional organic-ceramic laminate construction. This material is crafted with woven glass reinforcement, which enhances dimensional stability and flexural strength, making it ideal for demanding electronic applications. The innovative formulation of RF-60A results in low moisture absorption and uniform electrical properties, setting a benchmark for reliability in challenging environments.

Key Properties of RF-60A

The robust characteristics of RF-60A make it a preferred material for high-frequency applications:

- Dielectric Constant (Dk): 6.15 at 10 GHz. This low Dk allows for minimal signal loss and improved performance in RF applications.
- Dissipation Factor: 0.0038 at 10 GHz/23°C. This low dissipation factor ensures efficient signal transmission with reduced heat generation.
- Moisture Absorption: 0.02%. The low moisture absorption rate contributes to enhanced reliability in humid environments.
- Thermal Conductivity: 0.4 W/MK. This property aids in effective heat dissipation, crucial for high-power applications.


- CTE (Coefficient of Thermal Expansion):
- X-axis: 9 ppm/°C
- Y-axis: 8 ppm/°C
- Z-axis: 69 ppm/°C


- Outgassing Properties: 0.02% TML, 0.01% WVR. These characteristics make RF-60A suitable for space-constrained applications.

These properties ensure that the RF-60A PCB maintains performance integrity even under extreme conditions, which is essential for applications in aerospace, telecommunications, and medical devices.

Detailed PCB Specifications

This PCB features a sophisticated 2-layer rigid construction that optimizes performance for high-frequency applications. Below are the precise specifications that define its capabilities:

Technical Specifications

- Base Material: RF-60A
- Layer Count: 2 layers, providing a balance of complexity and efficiency.
- Board Dimensions: 65mm x 14mm (±0.15mm), allowing for compact designs without sacrificing functionality.
- Minimum Trace/Space: 4/6 mils, facilitating intricate circuit designs.
- Minimum Hole Size: 0.3mm, accommodating various electronic components.
- Finished Board Thickness: 0.7mm, ensuring durability and reliability.
- Finished Copper Weight: 1 oz (1.4 mils) on outer layers, providing robust electrical connections.
- Via Plating Thickness: 20 μm, enhancing the durability of connections between layers.
- Surface Finish: Immersion Gold, ensuring excellent solderability and corrosion resistance.
- Top Silkscreen: Black, providing clear identification for components.
- Top Solder Mask: Blue, contributing to aesthetic and functional design.
- Electrical Testing: 100% tested prior to shipment, ensuring quality assurance.
- Global Availability: Yes, making it accessible for manufacturers worldwide.

PCB Stackup Structure

The stackup of the RF-60A PCB consists of:

- Copper Layer 1: 35 μm, ensuring effective signal transmission.
- RF-60A Dielectric: 0.635 mm (25 mils), providing essential insulation and stability.
- Copper Layer 2: 35 μm, allowing for complex circuit configurations.

This carefully designed configuration ensures optimal performance and reliability, particularly in high-frequency applications.

Applications in Industry

The RF-60A PCB is well-suited for various high-frequency applications, including:

Power Amplifiers: Used in communication systems where signal strength is critical.

Filters and Couplers: Essential for signal processing and routing in RF circuits.

Miniaturized Antennas: Ideal for compact designs in modern communication devices.

Passive Components: Such as capacitors and resistors, where stability and reliability are paramount.

Compliance and Sustainability

The RF-60A PCB adheres to IPC-Class-2 standards, ensuring that it meets high-quality manufacturing benchmarks. Additionally, it is RoHS and WEEE compliant, reflecting a commitment to environmental sustainability and responsible manufacturing practices. This compliance not only ensures safety for end-users but also aligns with global efforts to minimize electronic waste.

Conclusion
With its advanced RF-60A material, high precision, and robust design, the 2-layer rigid PCB is positioned as the perfect solution for your next electronic project. Superior quality and reliability are offered, tailored for high-frequency applications!

For further inquiries or to place an order, please reach out to our dedicated sales team.
