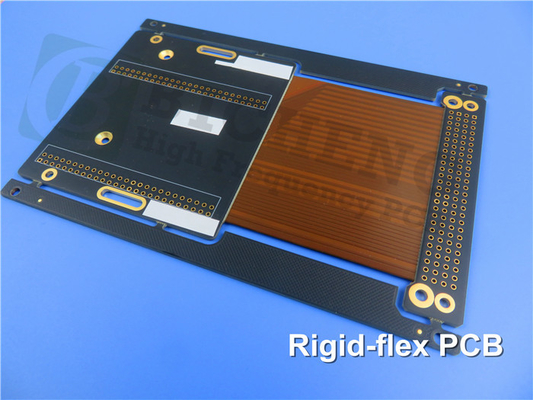

Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold

Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold
Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold

Large Image :  Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: S1000-2M (FR-4), R-F777 (Polyimide) PCB Size: 112mm X 54 Mm=1PCS, +/- 0.15mm
Copper Weight: Inner Layer18um, Outer Layer 35um Surface Finish: Immersion Gold
Layer Count: 6-layer PCB Thickness: 1 Mm
High Light:

1mm Rigid-flex PCB


Multilayer Rigid-flex PCB


Immersion gold Rigid-flex PCB

Experience the latest innovation in PCB technology with our S1000-2M (FR-4) Rigid-Flex PCB. This cutting-edge circuit board combines the strength and stability of rigid boards with the flexibility of flexible circuits, offering unparalleled design possibilities and enhanced performance. Let's delve into the remarkable features and benefits that make the S1000-2M (FR-4) Rigid-Flex PCB the ideal choice for your next project.


Flexible Circuitry Redefined:


Superior Manufacturing Process:

This S1000-2M (FR-4) Rigid-Flex PCB is meticulously crafted using a state-of-the-art manufacturing process. The flexible circuit and rigid boards are created separately, allowing for optimal performance and reliability.

The flexible circuit is manufactured using a flexible substrate, such as polyimide, ensuring excellent flexibility and durability.
The rigid boards, made from high-quality FR-4 materials, provide structural support and house electronic components with precision.


Seamless Interconnection:

The flexible circuit section is seamlessly bonded to the rigid boards, enabling seamless interconnection and efficient transmission of electrical signals.

Plated-through holes incorporated in the rigid sections facilitate reliable electrical connections, ensuring optimal performance and signal integrity.


Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold 0


Remarkable Features:

S1000-2M (FR-4) Rigid Board Features:

Lead-free compatible FR-4 laminate ensures compliance with environmental regulations.
With a Tg of 180℃ (DSC), the PCB exhibits remarkable heat resistance, making it suitable for demanding applications.
Lower Z-axis CTE (Coefficient of Thermal Expansion) minimizes stress on the board, enhancing long-term reliability.
Excellent through-hole reliability and anti-CAF (Conductive Anodic Filament) performance ensure stable and robust operation.
Low water absorption and excellent mechanical processability contribute to the PCB's durability and ease of manufacturing.


R-F777 (Polyimide) Flex Circuit Features:

The flexible circuit section is composed of high-quality R-F777 (Polyimide) material, known for its exceptional properties.
Polyimide thickness options ranging from 25μm to 75μm cater to diverse design requirements.
Copper types with ED copper and RA copper, available in thicknesses ranging from 12μm to 35μm, offer flexibility for various applications.
A Coefficient of Thermal Expansion (CTE) ranging from 18.5-19.7 ppm/K ensures dimensional stability across temperature variations.
The high Tg value of 350℃ and soldering resistance of 280-350℃ make the flex circuit reliable in extreme operating conditions.
The UL 94V-0 flammability rating ensures safety and compliance with industry standards.


Superior Stackup and Construction:

6-Layer Rigid-Flex PCB:

The S1000-2M (FR-4) Rigid-Flex PCB features a sophisticated 6-layer stackup, combining both rigid and flexible layers.
Copper layers with appropriate thicknesses ensure optimal conductivity and signal integrity.
The air gap in the 4-layer flex section provides flexibility while maintaining structural stability.
The stackup design is optimized to meet the requirements of high-performance applications.


Multilayer Rigid-flex PCB 1mm Matt Black Soldermask with Immersion gold 1


Precise Construction Details:

The board dimensions of 112mm x 54mm offer a compact yet versatile solution for various projects.
A minimum trace/space of 5/5 mils allows for intricate circuitry and precise signal routing.
The minimum hole size of 0.50mm enables seamless integration of components.
A finished board thickness of 1.0mm (with flex part thickness of 0.22mm) strikes the perfect balance between durability and space constraints.
The immersion gold surface finish ensures excellent solderability and corrosion resistance.
The top silkscreen in white facilitates clear component identification for ease of assembly and inspection.
The top and bottom solder masks in matt black provide effective protection and insulation.
Each PCB undergoes a 100% electrical test prior to shipment, guaranteeing product quality and reliability.


Uncompromising Quality and Global Availability:

Compliance with IPC-Class-2 standards guarantees manufacturing excellence and reliability.
Our S1000-2M (FR-4) Rigid-Flex PCB is available worldwide, ensuring accessibility for customers everywhere.
From computer and communication to automotive electronics and more, our PCB is suitable for various applications.


Unlock the potential of flexible circuitry with the S1000-2M (FR-4) Rigid-Flex PCB. Embrace its exceptional features, reliable performance, and global availability to take your projects to new heights of success.
