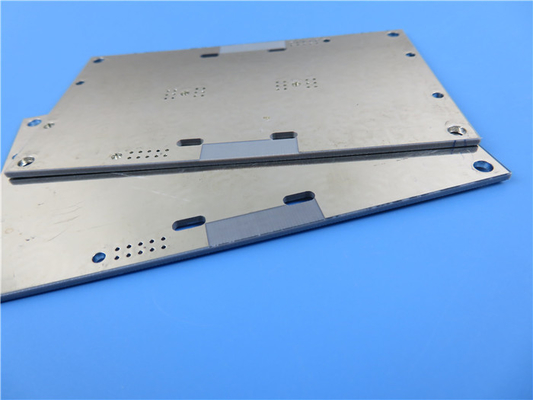

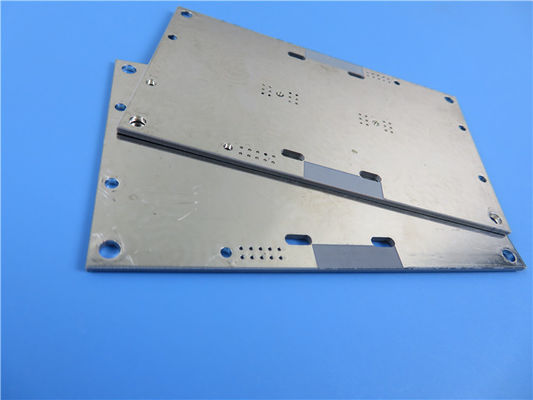

TC600 Hybrid Microwave PCB Board 15mil Thickness With Immersion Silver
  • name
  • name
  • name

TC600 Hybrid Microwave PCB Board 15mil Thickness With Immersion Silver

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-195.V1.0
Base Material:
Ceramic Filled PTFE/Woven Fiberglass
Layer Count:
Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness:
15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil (1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 500mil (12.7mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP, Pure Gold Plated Etc..
Highlight:

15mil Microwave Oven Pcb Board

,

Hybrid Microwave Oven Circuit Board

,

TC600 Microwave Printed Circuit Boards

Product Description



TC600 Microwave PCB with 15mil 20mil 30mil 50mil 60mil Thickness TC600 High Frequency PCB with Immersion Silver

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

Rogers' (Arlon) TC600 is a woven fiberglass reinforced, enhanced thermal conductivity ceramic filled, PTFE-based composite. It is designed to provide enhanced heat-transfer through“Best-In-Class” thermal conductivity, while reducing dielectric loss and insertion loss. The increased thermal conductivity (1.1 W/mk) provides higher power handling, reduces hot-spots and improves device reliability. Lower losses result in higher amplifier and antenna gains/efficiencies. Stable dielectric constant is across a wide temperature range (-75 ppm/oC -40°C to 140°C). It helps power amplifier and antenna designers maximize gain and minimize dead bandwidth lost to dielectric constant drift as operating temperature changes. It has low Z-Direction CTE and mechanical robustness is also greatly improved for the 6.15 dielectric constant market.



Features

1. Very Low Loss Tangent (0.002 at 10 GHz) provides Higher Amplifier or Antenna Efficiency

2. Mechanically Robustness improves processing and reliability, replaces brittle laminates that cannot withstand processing, impact or High Gain forces

3. Low coefficient of thermal expansion on X,Y and Z axis (9, 9 and 35 ppm/°C) matches active components for low stress solder joints

4. High Peel Strength for Reliable narrow lines



Benefits

1. Reduced Heat Generated through Transmission Line Loss

2. Heat Dissipation and Management

3. Replace Ceramic in Some Applications

4. Large Panel Sizes for Multiple Circuit Layout for lowered Processing Costs



Typical Properties TC600

1. Electrical Properties
Dielectric Constant (may vary by thickness)
@1.8 MHz - 6.15 Resonant Cavity
@10 GHz - 6.15 IPC TM-650 2.5.5.5
Dissipation Factor
@1.8 GHz - 0.0017 Resonant Cavity
@10 GHz - 0.002 IPC TM-650 2.5.5.5
Temperature Coefficient of Dielectric -
TCεr @ 10 GHz (-40-150°C) ppm/ºC -75 IPC TM-650 2.5.5.5
Volume Resistivity
C96/35/90 MΩ-cm 1.6x109 IPC TM-650 2.5.17.1
E24/125 MΩ-cm 2.4x108 IPC TM-650 2.5.17.1
Surface Resistivity
C96/35/90 MΩ 3.1x109 IPC TM-650 2.5.17.1
E24/125 MΩ 9.0x108 IPC TM-650 2.5.17.1
Electrical Strength Volts/mil (kV/mm) 850 (34) IPC TM-650 2.5.6.2
Dielectric Breakdown kV 62 IPC TM-650 2.5.6
Arc Resistance sec >240 IPC TM-650 2.5.1

2. Thermal Properties
Decomposition Temperature (Td)
Initial °C 512 IPC TM-650 2.4.24.6
5% °C 572 IPC TM-650 2.4.24.6
T260 min >60 IPC TM-650 2.4.24.1
T288 min >60 IPC TM-650 2.4.24.1
T300 min >60 IPC TM-650 2.4.24.1
Thermal Expansion, CTE (x,y) 50-150ºC ppm/ºC 9, 9 IPC TM-650 2.4.41
Thermal Expansion, CTE (z) 50-150ºC ppm/ºC 35 IPC TM-650 2.4.24
% z-axis Expansion (50-260ºC) % 1.5 IPC TM-650 2.4.24

3. Mechanical Properties
Peel Strength to Copper (1 oz/35 micron)
After Thermal Stress lb/in (N/mm) 10 (1.8) IPC TM-650 2.4.8
At Elevated Temperatures (150ºC) lb/in (N/mm) 10 (1.8) IPC TM-650 2.4.8.2
After Process Solutions lb/in (N/mm) 9 (1.6) IPC TM-650 2.4.8
Young’s Modulus kpsi (MPa) 280 (1930) IPC TM-650 2.4.18.3
Flexural Strength (Machine/Cross) kpsi (MPa) 9.60/9.30 (66/64) IPC TM-650 2.4.4
Tensile Strength (Machine/Cross) kpsi (MPa) 5.0/4.30 (34/30) IPC TM-650 2.4.18.3
Compressive Modulus kpsi (MPa)   ASTM D-3410
Poisson’s Ratio -   ASTM D-3039

4. Physical Properties
Water Absorption % 0.02 IPC TM-650 2.6.2.1
Density, ambient 23ºC g/cm3 2.9 ASTM D792 Method A
Thermal Conductivity (z-axis) W/mK 1.1 ASTM E1461
Thermal Conductivity (x, y) W/mK 1.4 ASTM E1461
Specific Heat J/gK 0.94 ASTM E1461
Flammability class V0 UL-94
NASA Outgassing, 125ºC, ≤10-6 torr
Total Mass Loss % 0.02 NASA SP-R-0022A
Collected Volatiles % 0 NASA SP-R-0022A
Water Vapor Recovered % 0 NASA SP-R-0022A




TC600 Hybrid Microwave PCB Board 15mil Thickness With Immersion Silver 0



Our PCB Capability (TC600)

PCB Material: Ceramic Filled PTFE/Woven Fiberglass
Designation: TC600
Dielectric constant: 6.15 (10 GHz)
Dissipation Factor 0.002 (10 GHz)
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Dielectric thickness: 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil (1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 500mil (12.7mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP, Pure gold plated etc..



Typical Applications:

1. Digital Audio Broadcasting (DAB) Antennas (Satellite Radio)

2. GPS & Hand-held RFID Reader Antennas

3. Microwave Combiner and Power Divider Boards in Avionics Applications

4. Power Amplifiers, Filters and Couplers

5. Small Footprint Antennas



TC600 Hybrid Microwave PCB Board 15mil Thickness With Immersion Silver 1



Tags:

1oz Medical Equipment PCB,

1oz Immersion Gold PCB,

Tg150 FR4 Medical Equipment PCB
