TC600 High Speed PCB Double Sided Microwave Circuit Board
  • name
  • name
  • name

TC600 High Speed PCB Double Sided Microwave Circuit Board

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-196.V1.0
Base Material:
TC600 1.27mm
Layer Count:
2 Layers
PCB Thickness:
1.4 Mm ±0.1
PCB Size:
120 X 66mm=1up
Solder Mask:
Black
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Immersion Silver, 80.8%
Highlight:

High Speed Microwave PCB Board

,

PCB Microwave Oven Circuit Board

,

Double Sided Microwave PCB Board

Product Description

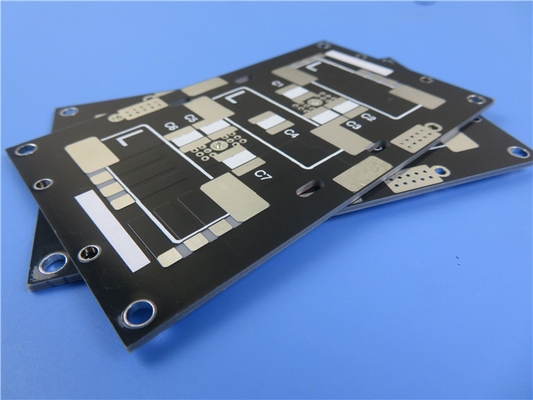

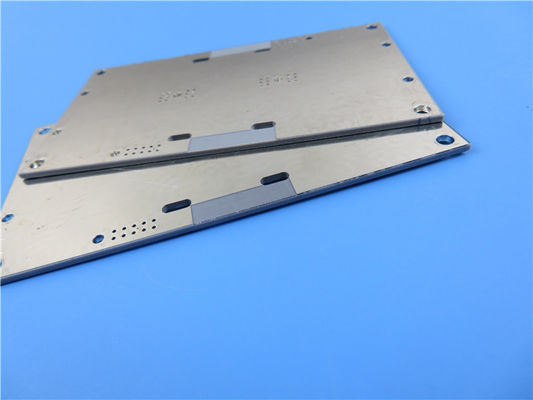

TC600 High Frequency PCB 50mil 1.27mm Double Sided Microwave Circuit Board With Immersion Silver

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

This thermal management PCB is a double-layer board fabricated on Rogers (Arlon) TC600 substrate. Designed for effective heat dissipation, it features a 50mil thick core, 1oz finished copper weight, and immersion silver finish on pads. The board complies with IPC-A-600 Class 2 standards, includes a black solder mask on the component side, and is 100% electrically tested prior to shipment.



PCB Specifications

PCB SIZE 120 x 66mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
TC600 1.27mm
copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 6 mil / 6 mil
Minimum / Maximum Holes: 0.5 mm / 4.0 mm
Number of Different Holes: 6
Number of Drill Holes: 87
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: TC600 1.27mm
Final foil external: 1.0 oz
Final foil internal: N/A
Final height of PCB: 1.4 mm ±0.1
PLATING AND COATING
Surface Finish Immersion Silver, 80.8%
Solder Mask Apply To: Top side and bottom side
Solder Mask Color: Black
Solder Mask Type: LPI
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Component side
Colour of Component Legend White
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.5mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
