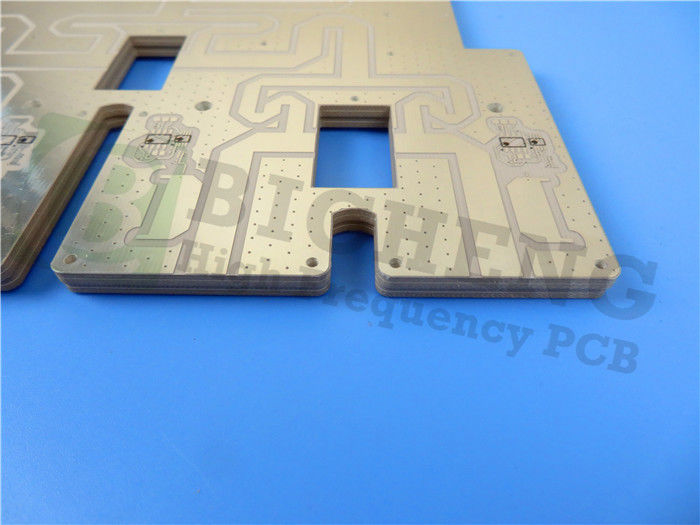

AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna

AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna
AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna

Large Image :  AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

Radar Antenna PCB Blog


AD1000 Microwave PCB


50mil Substrates Microwave PCB


Hello, today we will delve into the fascinating world of advanced substrates for electronic circuits and explore the exceptional properties of AD1000. We'll discuss what sets AD1000 apart from other substrates, its remarkable woven-glass reinforced PTFE material, and how it provides unmatched dimensional stability and mechanical robustness. AD1000 is revolutionizing circuit miniaturization and opening up new possibilities for power amplifiers, filters, couplers, and more. So, let's dive right in!


1. Electrical Properties:

AD1000 boasts exceptional electrical properties. Its dielectric constant varies with thickness, reaching an impressive value of 10.2 at 10 GHz, while the value at 1 MHz is yet to be determined. The dissipation factor is equally remarkable, with a value of 0.0023 at 10 GHz and yet to be determined at 1 MHz.


The temperature coefficient of dielectric constant at 10 GHz is -380 ppm/℃, indicating significant changes in dielectric constant with temperature. If your devices or systems rely on consistent electrical performance, careful material selection is crucial.


AD1000 exhibits outstanding volume resistivity and surface resistivity, showcasing excellent insulation properties. At specific conditions, it demonstrates volume resistivity values of 1.40x10^9 MΩ-cm and 5.36x10^7 MΩ-cm, as well as surface resistivity values of 1.80x10^9 MΩ and 3.16x10^8 MΩ.


According to IPC TM-650 standards, AD1000 withstands an electrical strength of 622 volts per mil, possesses a dielectric breakdown voltage exceeding 45 kV, and demonstrates impressive arc resistance exceeding 180 seconds.


2. Thermal Properties:

AD1000 excels in thermal properties, essential for reliable electronic system operation. It has a high decomposition temperature of over 500℃, enabling it to withstand high-temperature environments without compromising integrity. Additionally, AD1000 exhibits remarkable thermal expansion characteristics, with a CTE (X, Y) of 8 ppm/℃ and 10 ppm/℃ respectively, and a CTE (Z) of 20 ppm/℃ from 50-150ºC.


Property Units AD1000 Test Method
1. Electrical Properties
Dielectric Constant (may vary by thickness) @ 10 GHz - 10.2 IPC TM-650
Dissipation Factor @ 10 GHz - 0.0023 IPC TM-650
Temperature Coefficient of Dielectric Constant, TCεr @ 10 GHz (-40-150°C) ppm/℃ -380 IPC TM-650
Volume Resistivity
C96/35/90 MΩ-cm 1.40x109 IPC TM-650
E24/125 MΩ-cm 5.36x107 IPC TM-650
Surface Resistivity
C96/35/90 1.80x109 IPC TM-650
E24/125 3.16x108 IPC TM-650
Electrical Strength Volts/mil (kV/mm) 622 (24.5) IPC TM-650
Dielectric Breakdown kV >45 IPC TM-650 2.5.6
Arc Resistance sec >180 IPC TM-650 2.5.1
2. Thermal Properties
Decomposition Temperature (Td)
Initial >500 IPC TM-650
5% >500 IPC TM-650
T260 min >60 IPC TM-650
T288 min >60 IPC TM-650
T300 min >60 IPC TM-650
Thermal Expansion, CTE (X,Y) 50-150ºC ppm/℃ 8, 10 IPC TM-650 2.4.41
Thermal Expansion, CTE (Z) 50-150ºC ppm/℃ 20 IPC TM-650 2.4.24
3. Mechanical Properties
Peel Strength to Copper (1 oz/35 micron)
After Thermal Stress lb/in (N/mm) >12 (2.1) IPC TM-650 2.4.8
At Elevated Temperatures (150º) lb/in (N/mm) 13.6 (2.4) IPC TM-650
After Process Solutions lb/in (N/mm)   IPC TM-650 2.4.8
Young’s Modulus kpsi (GPa) 200 (1.38) IPC TM-650
Flexural Strength (Machine/Cross) kpsi (MPa) 9.9/7.5 (68/52) IPC TM-650 2.4.4
Tensile Strength (Machine/Cross) kpsi (MPa) 5.1/4.3 (35/30) IPC TM-650
Compressive Modulus kpsi (GPa) >425 (>2.93) ASTM D-3410
Poisson’s Ratio - 0.16 ASTM D-3039
4. Physical Properties
Water Absorption % 0.03 IPC TM-650
Density, ambient 23ºC g/cm3 3.20 ASTM D792 Method A
Thermal Conductivity W/mK 0.81 ASTM E1461
Flammability class Meets V0 UL-94
NASA Outgassing, 125ºC, ≤10-6 torr %   NASA SP-R-0022A
Total Mass Loss % 0.01 NASA SP-R-0022A
Collected Volatiles % 0.00 NASA SP-R-0022A
Water Vapor Recovered % 0.00 NASA SP-R-0022A


3. Mechanical Properties:

AD1000 not only possesses exceptional electrical and thermal properties but also showcases impressive mechanical strength. It exhibits a peel strength to copper exceeding 12 lb/in, even after thermal stress. At elevated temperatures of 150ºC, the peel strength remains high at 13.6 lb/in.


With a Young's modulus of 200 kpsi, AD1000 is stiff and resistant to deformation. It also demonstrates a flexural strength of 9.9/7.5 kpsi (machine/cross directions), ensuring resilience and durability in demanding applications.


AD1000 showcases a tensile strength of 5.1 kpsi (machine direction) and 4.3 kpsi (cross direction), highlighting its ability to withstand tension forces. Additionally, it has a compressive modulus exceeding 425 kpsi, maintaining shape and structural integrity under significant compressive loads.


4. Physical Properties:

AD1000 exhibits excellent physical properties, including a low water absorption rate of only 0.03%, ensuring exceptional moisture resistance. Its density at ambient 23ºC stands at 3.20 g/cm3, providing a lightweight yet robust solution for various electronic applications. The thermal conductivity of AD1000 is 0.81 W/mK, facilitating efficient heat dissipation and enhancing overall device performance.


AD1000 meets stringent flammability standards, achieving a V0 rating in the UL-94 classification. Furthermore, it excels in NASA outgassing tests, with minimal total mass loss, collected volatiles, and water vapor recovered at 125ºC and ≤10-6 torr.


Our PCB Capability (AD1000):

PCB Material: Woven Glass Reinforced PTFE/Ceramic Filled
Designation: AD1000
Dielectric constant: 10.2
Dissipation Factor 0.0023 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Dielectric thickness: 6mil (0.1524mm), 10.5mil (0.2667mm), 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil (0.762mm), 50mil (1.27mm), 59mil (1.499mm ), 125mil ( 3.175mm ), 127mil (3.226mm )
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Immersion gold, HASL, Immersion silver, Immersion tin, OSP,Bare copper, Pure gold, ENEPIG etc..

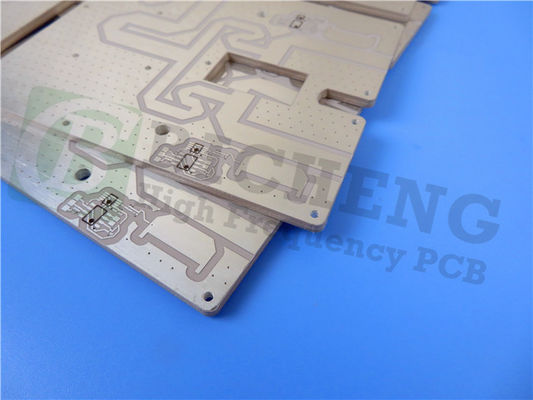

AD1000 Microwave PCB Built On 50mil Substrates For Radar Antenna 0



AD1000 is a remarkable substrate that offers unparalleled electrical, thermal, mechanical, and physical properties. Its unique woven-glass reinforced PTFE material provides exceptional dimensional stability and mechanical robustness, making it an ideal choice for demanding applications in power amplifiers, filters, couplers, and more.


With our expertise and advanced capabilities, we can deliver reliable and high-performance PCB solutions tailored to your specific needs.
