1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting

1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting
1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting

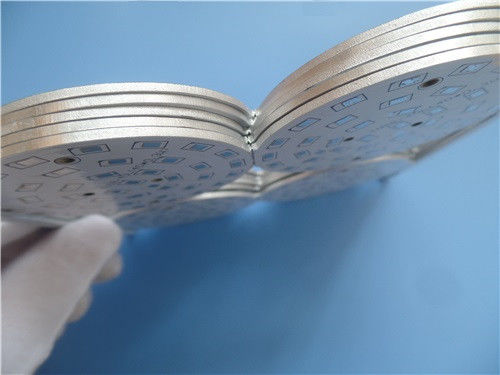

Large Image :  1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-769.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: 1.0 W/MK 75um Dielectric Material Layer Count: Single Side
PCB Thickness: 1.6mm ±0.16 PCB Size: 135 X 145mm=4PCS
Solder Mask: Super White Silkscreen: Black
Copper Weight: 1oz Surface Finish: Hot Air Soldering Leveling(HASL),lead Free
High Light:

1.0 W/MK Aluminum Substrate PCB

,

75um Dielectric Aluminum Substrate PCB

,

1.0 W/MK Aluminum PCB For LED



Aluminum PCB Prototype Built 1W / MK for 9W LED Lighting
(PCB’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of aluminum PCB for the application of Led Lighting. It's a single layer MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 panels are packed for shipment.



Parameter and data sheet

PCB SIZE 135 x 145mm=4PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1.0 W/MK 75um dielectric material
Aluminum base 1060
TECHNOLOGY
Minimum Trace and Space: 10mil / 10mil
Minimum / Maximum Holes: 5.5mm
Number of Different Holes: 1
Number of Drill Holes: 7
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1.0W/MK 75um dielectric material
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Super white, Taiyo PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
APPLICATION: High power street LED Light, GPS Tracking Devices
Electrical Transformers
Led Light Panel
Waterproof Led Lights
Wireless Router Reviews
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 0



Features and benefits
Optimization combination of power circuit and control circuit,
Replace the fragile ceramic substrate and obtain a better mechanical durability,
Reduce the operating temperature of the equipment,
Small quantity order is accepted
Delivery on time: >98%


Applications
Automobile rear lighting
Radiator
Security system
Gas station lighting



1.0 W/MK 75um dielectric Aluminum Substrate PCB For 9W LED Lighting 1


Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs are in compliance with the customers' requirements, inclusive of selection of the vendors, work in progress (WIP) inspection, outgoing delivery inspection and customer service etc.

Evaluation and Audit of Suppliers
Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers every year to guarantee the materials supplied are meeting Bicheng’s requirements. Furthermore, Bicheng continuously develop suppliers and supervise them to improve their quality and environment management basing on the systems of ISO9001 & ISO14001.



Contract Evaluation

Bicheng shall review and verify customer's requirements to make sure that we have the capability to satisfy customers' requirements including specifications, delivery and other demands prior to accepting an order. Making, audit and control of manufacturing data.


When customers' design data and specifications are provided to our market department, Bicheng has to verify all the requirements. Then, convert the design data into manufacturing data by CAM. Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process and technologies for manufacturing department as the basis for actual fabrication. MI must be reviewed by independent engineers and QA engineers before issue.



Incoming Material Quality Control
All materials have to be inspected before warehousing. We established a series of strict inspection procedure and instruction to control the incoming materials. Furthermore, various precise inspecting instruments and apparatus guarantee the capability to judge the material good or not. We issue material with first in first out principle, and give out “alarm” for the material that will reach the shelf life to ensure the materials are used up before expiry.



Control of Production Process
Right manufacturing instruction (MI), comprehensive equipment management and maintenance and process control, strict WIP inspection and monitoring as well as working instruction, all those make the whole fabrication process totally controlled.



Final Control and Inspection
All PCBs have to be gone through the open and short test as well as visual inspection after passed the specified physical tests. We own various advanced test equipment including customized, probe flying test machines to guarantee that each PCB is 100% tested.



Product Delivery Audit
We set up a dedicated FQA department to inspect the PCB products according to the customer's specifications and requirements by sampling. Qualified PCBs are going to be packed.



FQA also has to carry out a 100% audit of the warehouse packing and shipping products, including product number, customer number, product quantity, shipping address and so on prior to shipment.



Customer Service
We sets up a professional customer service team to proactively communicate with customers and timely deal with the customers' feedbacks. We highly focus on customers' needs and to understand customers’ demands, timely to adjust the policy of customer service and PCB product requirements.
