1 Meter 1.0mm Thick LED Strip Circuit Board HASL Lead Free

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-773.V1.0

Base Material:

1W/MK Dielectric Material

Layer Count:

Single Side

PCB Thickness:

1.0 Mm ±0.10

PCB Size:

1420 X 16mm = 1PCS

Solder Mask:

White

Silkscreen:

Black

Copper Weight:

Surface Finish:

Hot Air Soldering

Highlight:

1m LED Strip Circuit Board

1.0mm LED Strip Circuit Board

1m LED Strip PCB

Product Description

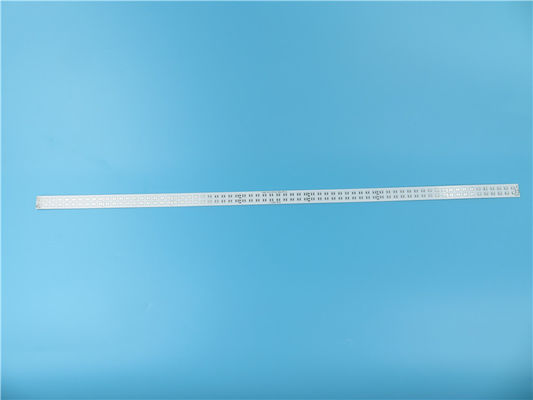

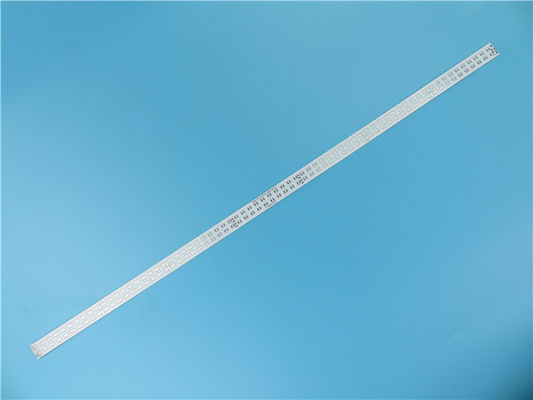

Aluminum PCB Strip 1 Meter MCPCB Built on 1.0mm Thick With HASL Lead Free

(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of LED strip PCB built on aluminum core with 1W/MK dielectric for the application of power LED lighting. It's 1.4 meter long with 1.0mm thick, black silkscreen over white solder mask and HASL on pads. The base material is used from ILM brand, entire board supplying 1 PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

Parameter and data sheet

PCB SIZE	1420 x 16mm = 1PCS
BOARD TYPE	Aluminum PCB, IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	1W/MK dielectric material
	Aluminum 5052
TECHNOLOGY
Minimum Trace and Space:	62.4 mil /- mil
Minimum / Maximum Holes:	4.2 mm / 4.2 mm
Number of Different Holes:	1
Number of Drill Holes:	21
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.0 mm ±0.10
PLATING AND COATING
Surface Finish	Hot Air Soldering
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	White
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	Black
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Features and benefits

Replace the fragile ceramic substrate and obtain a better mechanical durability;

Prolong the service life of the product;

Reduce the cost of hardware and assembly;

Reduce the operating temperature of the equipment;

Diversified shipping method;

Wide range of PCB supplying;

UL recognized and RoHS Directive-compliant;

Prototype PCB capability;

Have Volume Production capability.

Applications

Power amplifier

Motor controller

Radiator

Fluorescent lamp

Our Driving Circuit Boards Capabilities 2021

Blind vias, Buried vias

Flex PCB

Heavy Copper Boards 10oz

High Tg, High CTI Material

Hybrid FR-4 and High Frequency Material

Impedance Controlled PCB

IPC Class 2, IPC Class 3

Lead Free PCB (RoHS Compliant)

Multilayer PCBs to 32+ copper layers boards

Metal Core PCB (MCPCB)

PCB Materials – FR-4, Polyimide, Rogers & More

RoHS Compliant PCB Manufacturer

Rigid Flex PCB

RF PCB / High Frequency PCB

Through-hole, BGA, Gold Finger, Edge dome

Via-in-pad, Filled vias

TS16949 (2009), ISO14001 (2004), ISO9001 (2008), UL certified

Our Services
