20x20mm Metal Core PCB Built On aluminum substrate with 1W/MK Dielectric

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

20x20mm Metal Core PCB Built On aluminum substrate with 1W/MK Dielectric

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-772.V1.0

Base Material:

1W/MK Dielectric Material

Layer Count:

Single Side

PCB Thickness:

1.6mm ±0.16

PCB Size:

20 X 20mm=1PCS

Solder Mask:

Black

Silkscreen:

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

20x20mm Metal Core PCB

1W/MK Dielectric Metal Core PCB

20x20mm Aluminum Core PCB

Product Description

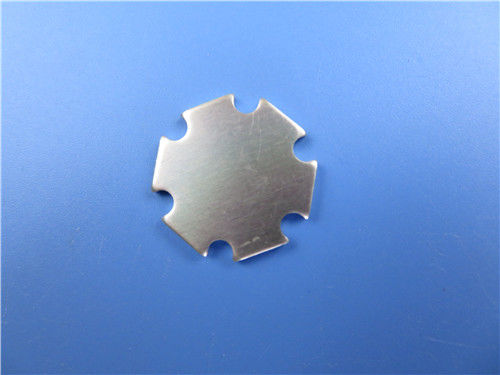

Aluminum Core PCB Metal Core Printed Circuit Board On 1W/MK Dielectric With Immersion Gold

(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of metal core PCB built on aluminum substrate with 1W/MK dielectric material for the application of inverter circuit. It's 1.6 mm thick, black solder mask. Pads are plated by a layer of immersion gold. The base material is used from ITEQ, entire board supplying 1 PCB up. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Every 50 boards are packed for shipment.

Parameter and data sheet

PCB SIZE	20 x 20mm=1PCS
BOARD TYPE	Aluminum core PCB, IMS type
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	1W/MK dielectric material
	Aluminum 5052
TECHNOLOGY
Minimum Trace and Space:	20 mil / 20 mil
Minimum / Maximum Holes:	3.5 / 3.5 mm
Number of Different Holes:	1
Number of Drill Holes:	4
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1 oz
Final foil internal:	0 oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Immersion Gold
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	Black
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Punching
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Features and benefits

Improve the power density and reliability of the device;

Optimization combination of power circuit and control circuit;

Reduce the operating temperature of the equipment;

Effective heat dissipation reduces the operating temperature of the module and prolongs the service life;

Strict WIP inspection and monitoring as well as working instruction;

Meeting your PCB needs from prototype to mass production;

Powerful PCB capabilities support your research and development, sales and marketing;

8000 types of PCB per month;

Quick CADCAM checking and free PCB quotation;

Applications

Power supply equipment

A filter electric circuit

Solid relay

Outdoor lighting for expressway
