Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity

Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity
Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity

Large Image :  Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-776.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: 3W/MK Dielectric Material Layer Count: Single Side
PCB Thickness: 1.6mm ±0.16 PCB Size: 36 X 36 Mm (diameter 36mm )
Solder Mask: White Silkscreen: Black
Copper Weight: 2oz Surface Finish: Immersion Gold
High Light:

Immersion Gold Metal Core PCB

,

3W/MK Metal Core PCB



High Thermal Conductivity Aluminum PCB 3W / MK Metal Core PCB With Immersion Gold
(PCB’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of aluminum PCB for the application of communication electronic equipment. It's a single layer MCPCB board at 1.6 mm thick with 3 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed separately.



Parameter and data sheet

PCB SIZE 36 x 36 mm (diameter 36mm )
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 70um(2oz)
3W/MK dielectric material 75um
Aluminum 6061 1.5mm
TECHNOLOGY
Minimum Trace and Space: 18mil/15mil
Minimum / Maximum Holes: 4.0mm
Number of Different Holes: 1
Number of Drill Holes: 1
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 3W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 2oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Immersin Gold
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

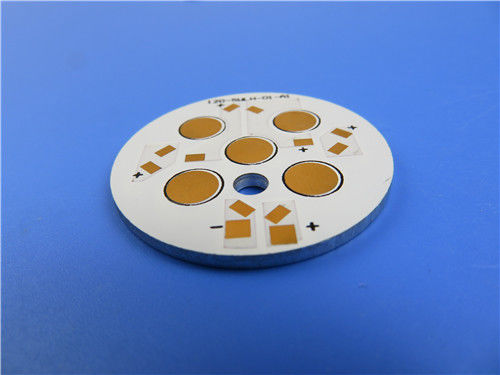

Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity 0



Features and benefits

Optimization combination of power circuit and control circuit,
Effective heat diffusion in the design of the circuit,
Improve the power density and reliability of the device,
Eligible products rate of first production: >95%
UL recognized and RoHS Directive-compliant
More than 18 years' experience
High technology


Applications
Automobile lamp
Radiator
Electro-mechanical
Input-output amplifier

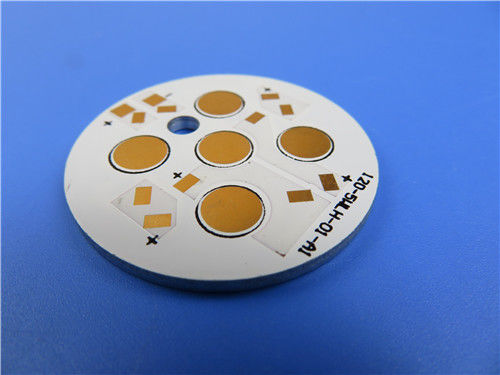

Immersion Gold 3W/MK Metal Core PCB High Thermal Conductivity 1
