ENIG 3W/MK RGB LED PCB Board High Thermal Conductivity
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

ENIG 3W/MK RGB LED PCB Board High Thermal Conductivity

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-760.V1.0
Base Material:
3W/MK Dielectric Material
Layer Count:
Single Side
PCB Thickness:
1.6mm ±0.16
PCB Size:
80 X 50mm=1PCS
Solder Mask:
Black
Copper Weight:
1oz
Surface Finish:
ENIG
Highlight:

3W/MK RGB LED PCB Board

,

ENIG RGB LED PCB Board

,

3W/MK RGB LED PCB

Product Description



High Conductive Aluminum PCB 3W / MK High Thermal Conductivity MCPCB for RGB Lighting
(PCB’s are custom-made products, the picture and parameters shown are just for reference)



General description
This is a type of aluminum PCB for the application of Led Lighting. It's a single layer MCPCB board at 1.6 mm thick with 3 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 boards are packed for shipment.



Parameter and data sheet

PCB SIZE 80 x 50mm=1PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
3W/MK dielectric material 100um
Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space: 11mil/11.5mil
Minimum / Maximum Holes: 8.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 3W / MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: Black
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen
Colour of Component Legend no silkscreen
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

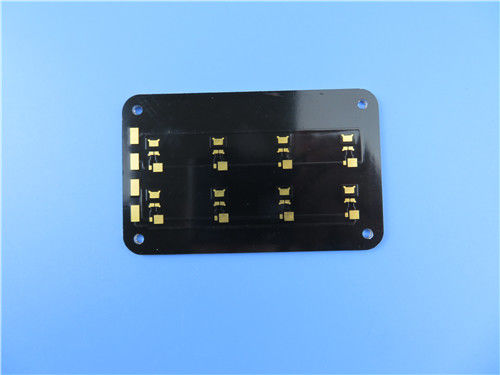

ENIG 3W/MK RGB LED PCB Board High Thermal Conductivity 0



Features and benefits
Effective heat dissipation reduces the operating temperature of the module and prolongs the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface materials),
Reduce the volume of the product,
thermal stress test, reliability test, insulation resistance test and ionic contamination test,
Focus on low to medium volume production
Small quantity order is accepted



Applications
Home Lighting
Light conversion system
Solid relay
Wall lamp



ENIG 3W/MK RGB LED PCB Board High Thermal Conductivity 1
