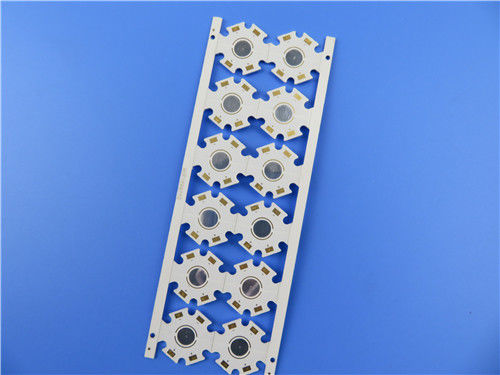

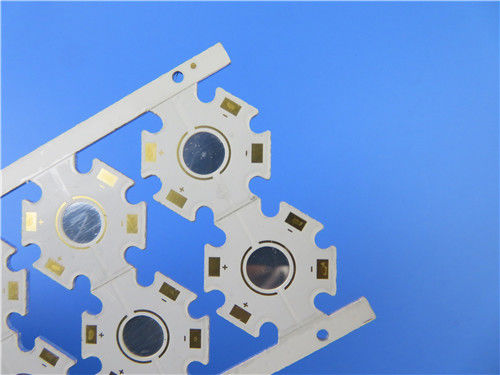

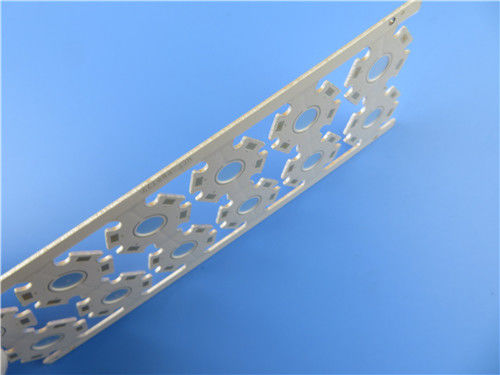

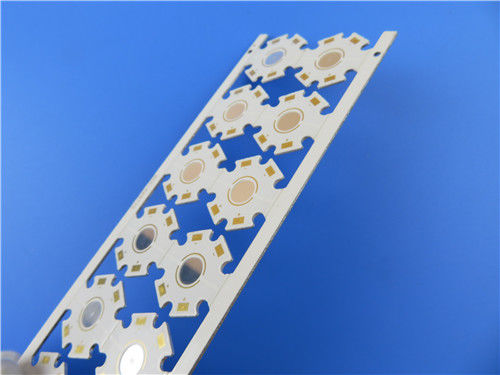

NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity

NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity
NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity

Large Image :  NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-763.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: 1W/MK Dielectric Material Layer Count: Single Side
PCB Thickness: 1.2mm ±0.12 PCB Size: 130 X 48mm=12PCS
Solder Mask: White Copper Weight: 1oz
Surface Finish: Immersion Gold
High Light:

Mirror Aluminum Base PCB

,

NO Silkscreen Aluminum Base PCB

,

Mirror Aluminium Core PCB

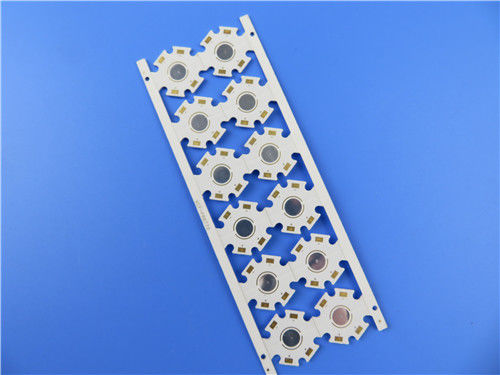

Mirror Aluminum PCB High Reflection MCPCB For LED Lighting
(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description
This is a type of mirror aluminum PCB for the application of Led Lighting. It's a single layer MCPCB board at 1.2 mm thick with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 25 panels are packed for shipment.

Parameter and data sheet
PCB SIZE 130 x 48mm=12PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB, Metal core PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material, 75um
Aluminum 5052, 1.2mm
TECHNOLOGY
Minimum Trace and Space: 12mil/12mil
Minimum / Maximum Holes: 1.5mm
Number of Different Holes: 1
Number of Drill Holes: 4
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.2mm ±0.12
PLATING AND COATING
Surface Finish Immersion gold, Mirror reflection
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen
Colour of Component Legend no silkscreen
Manufacturer Name or Logo: as per requirement
VIA no via
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity 0

Features and benefits
Optimization combination of power circuit and control circuit,
Replace the fragile ceramic substrate and obtain a better mechanical durability,
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Prolong the service life of the product,

Applications
Automotive lighting
Constant voltage control
Light conversion system
Shopping mall lighting

Our Driving Circuit Boards Capabilities 2021
Blind vias, Buried vias
Flex PCB
Heavy Copper Boards 10oz
High Tg, High CTI Material
Hybrid FR-4 and High Frequency Material
Impedance Controlled PCB
IPC Class 2, IPC Class 3
Lead Free PCB (RoHS Compliant)
Multilayer PCBs to 32+ copper layers boards
Metal Core PCB (MCPCB)
PCB Materials – FR-4, Polyimide, Rogers & More
RoHS Compliant PCB Manufacturer
Rigid Flex PCB
RF PCB / High Frequency PCB
Through-hole, BGA, Gold Finger, Edge dome
Via-in-pad, Filled vias
IATF16949 (2016), ISO14001 (2004), ISO9001 (2015), UL certified

Our Services
Focus on Prototypes, Small Batches, Volume Production
Quick turn-around, double sided PCB 24 hours available.
Door to door shipment service

NO Silkscreen Mirror Aluminum Base PCB 1 W/MK Thermal Conductivity 1

Mirror Aluminum PCB
The mirror aluminum PCB is a substrate which is pressed together with BT material circuit layer and aluminum substrate with silver particles. It is the most suitable raw material for COB packaging.

Advantages
Good heat dissipation: the mirror silver aluminum substrate adopts thermoelectric separation technology, and the thermal conductivity of ordinary aluminum PCB with insulating layer is 1W/MK to 3W/MK. The thermal conductivity of mirror aluminum PCB reaches higher 137W/MK, which greatly improves the heat dissipation of the chip.

High light efficiency: the reflectivity of the ordinary gold aluminum PCB is 80%, the reflectivity of the cup hole aluminum PCB is 85%, the reflectivity of the silver plated aluminum PCB is 95%, and the reflectivity of the mirror silver aluminum PCB is 98%. The mirror silver aluminum PCB can make the light of the chip better excited.
